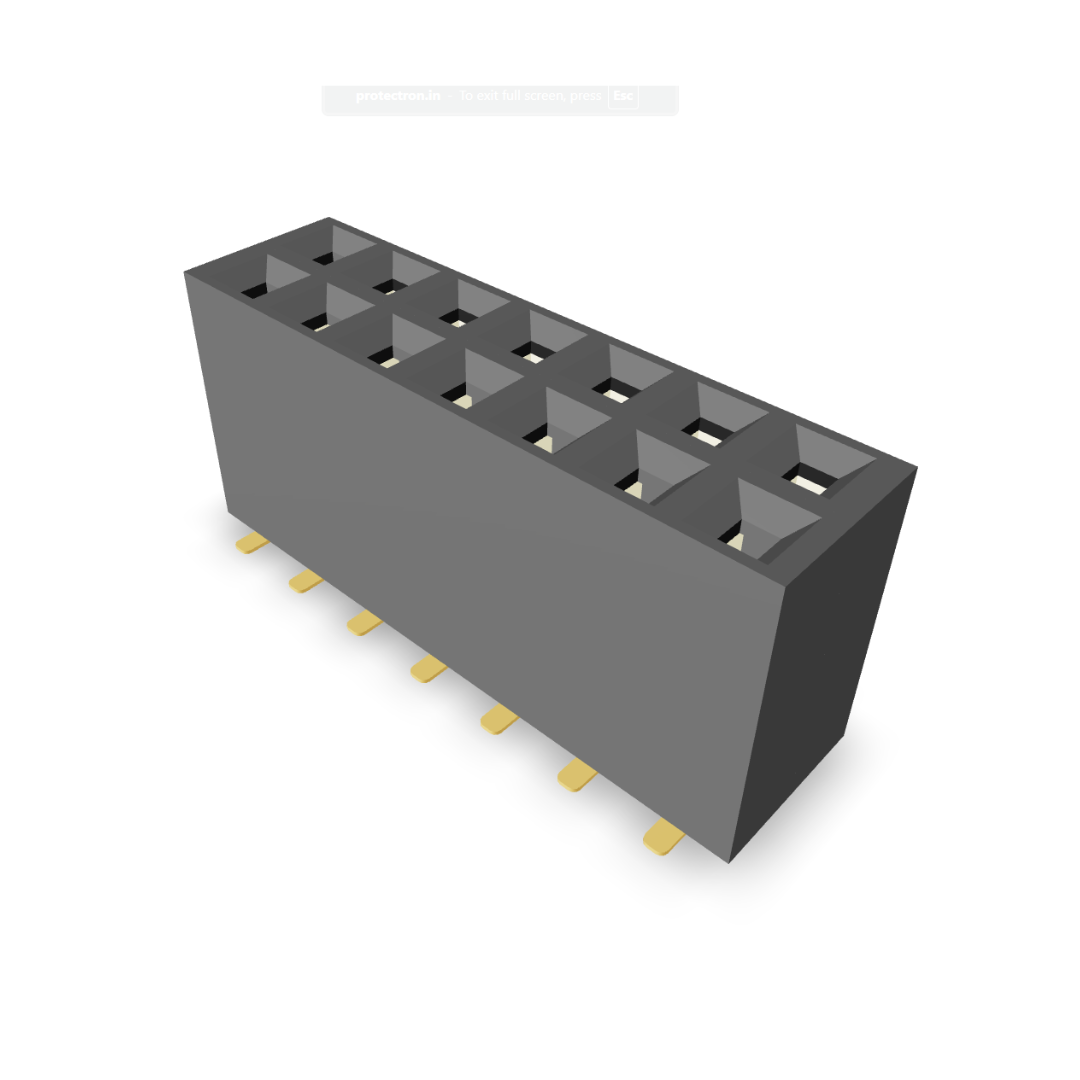

2.54mm Pitch Female Header Surface Mount Double Row Profile:7.4mm (P9405-XX-2X-X)
Description
Its double-row and surface-mount configuration ensures reliable and stable connections, making it ideal for complex and compact electronic designs.
Material and Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Insulation
Material: |
Copper Alloy |
Finish: |
Refer Table |
Packaging Type: |
Refer Table |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
500V AC |
Contact Resistance: |
20m OHMS Max |
Mechanical Data
Insertion Rating: |
200g max |
Extraction Resistance: |
1000M OHMS Min |
Mechanical Life: |
100 Cycles Max |
Part No
P9405-XX-2X-X
