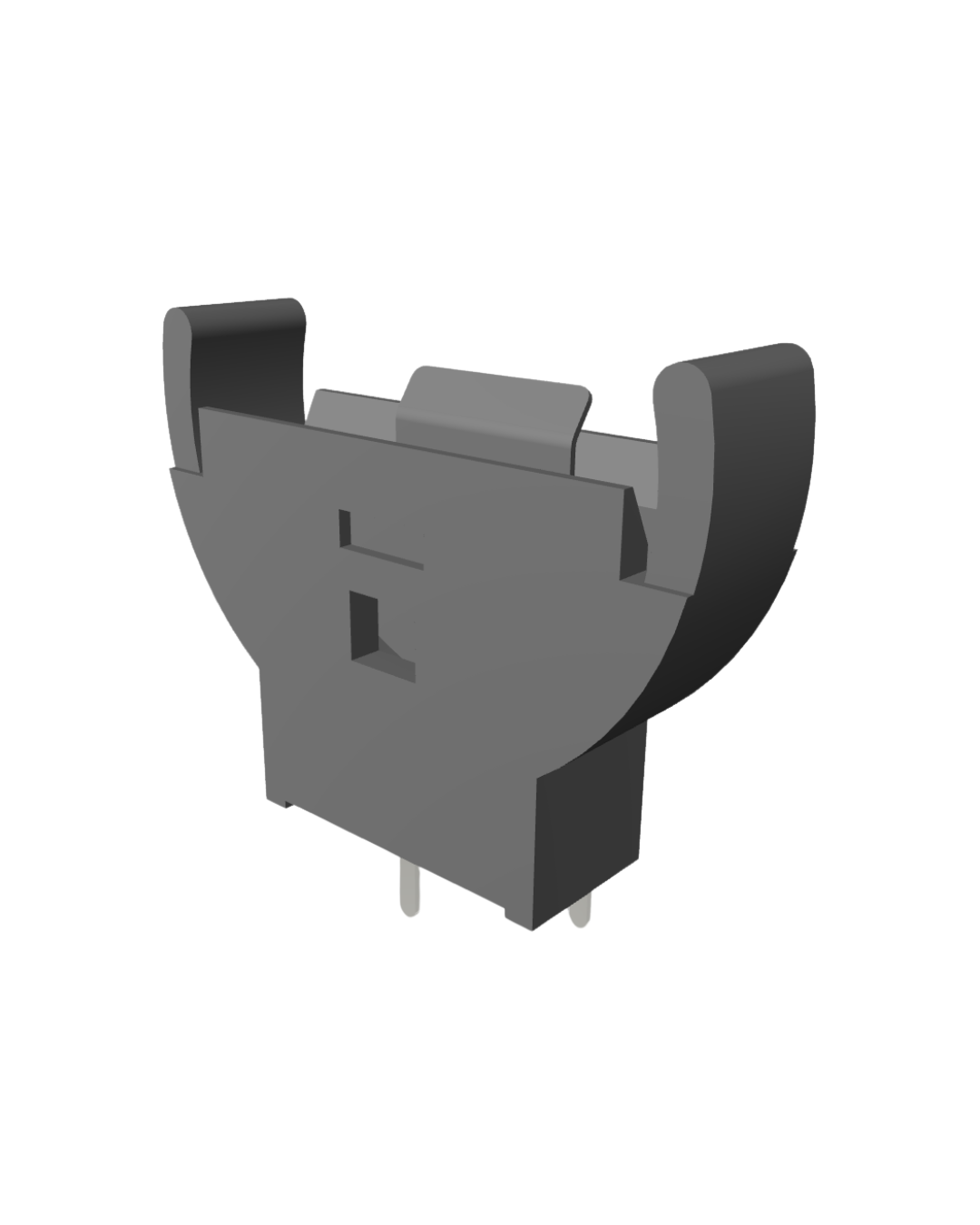

Coin Battery Holder, Vertical Mount(PBATH1-20-19)
Description
The PBATH1-20-19 is a vertical component designed for applications requiring a reliable and robust connection.Download Link
Material & Finish
Insulation Material: |
Thermoplastic, Black Color, UL94V-0 |
Contact: |
Brass, Tin Plated |
Electrical Characteristics
Insulation Resistance: |
1000 MΩ at 100V |
Dielectric Withstanding: |
750V AC |
Contact Resistance: |
30 mΩ max |
Environmental Data
Temperature Range: |
-55°C to +85°C |
Part No
PBATH1-20-19
