1mm PCB Mounting, Insulated L = 4.5mm(P8101-1X-1X-1)
Description
The insulation provides protection against electrical shorts and interference, ensuring reliable performance in sensitive environments.
Material & Finish
Contact |
Brass, Silver/Gold Plated |
|---|---|
Insulator body : |
Polypropylene |
Finish : |
Refer Table |
Packaging : |
Bulk Packing |
Specifications
Contact Resistance |
5mΩ max |
Insulation Resistance |
1000MΩ min |
Dielectric Withstanding |
500V AC min |
Mechanical Data
Insertion Force with Ø1.02mm |
2.2kg max |
Extraction Force with Ø0.98mm |
0.18kg min |
Mounting Hole Dia in PCB |
Ø1.3mm |
Environmental Data
Temperature Range |
-25°C to +70°C |
Variants
Colour |
Silver Plated |
Gold Plated |
Part Number |
|||
|---|---|---|---|---|---|---|
For L=4.5mm, D=1.3mm |
For L=3.0mm, D=1.2mm |
|||||
Silver Plated |
Gold Plated |
Silver Plated |
Gold Plated |
|||

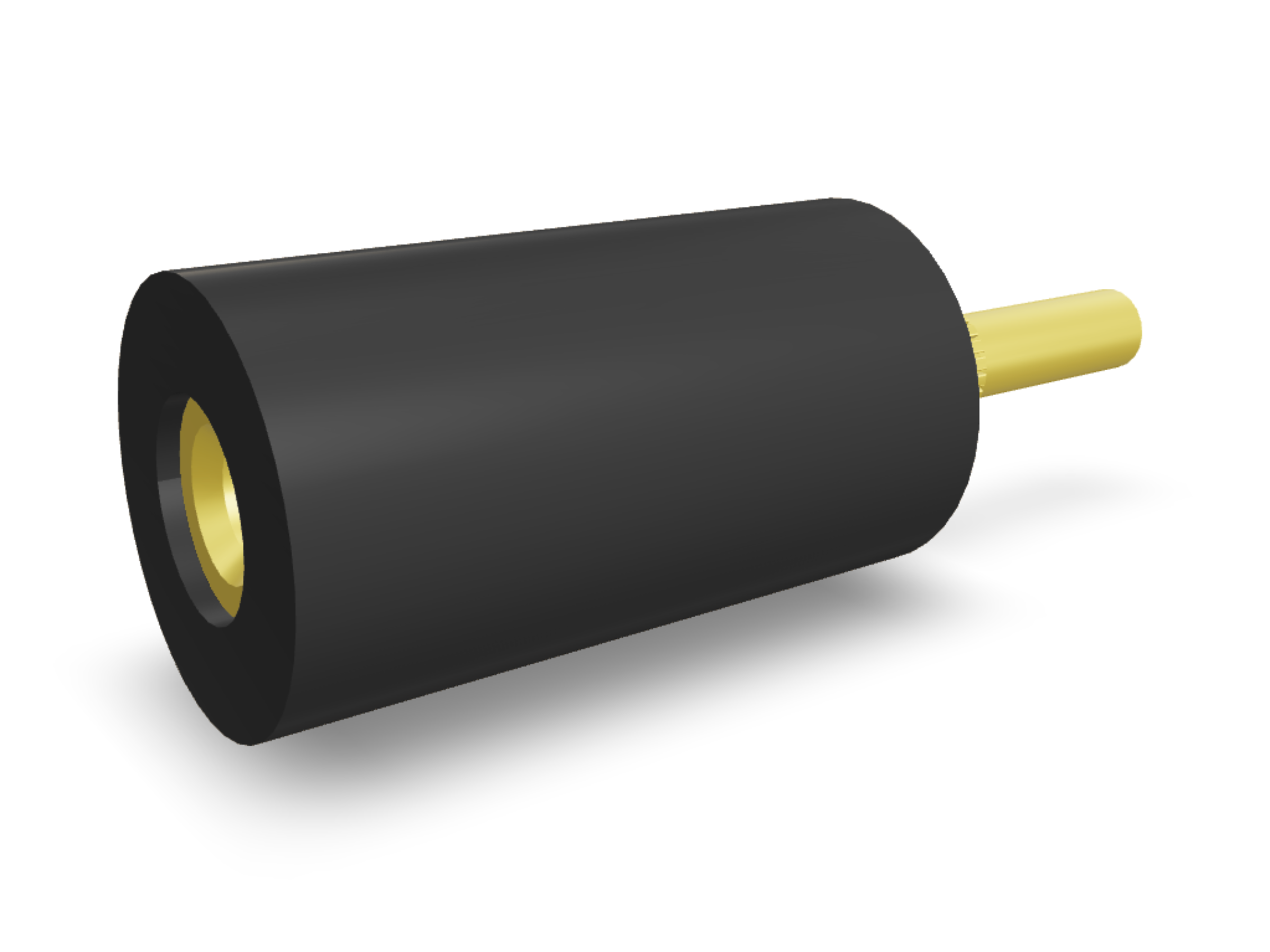

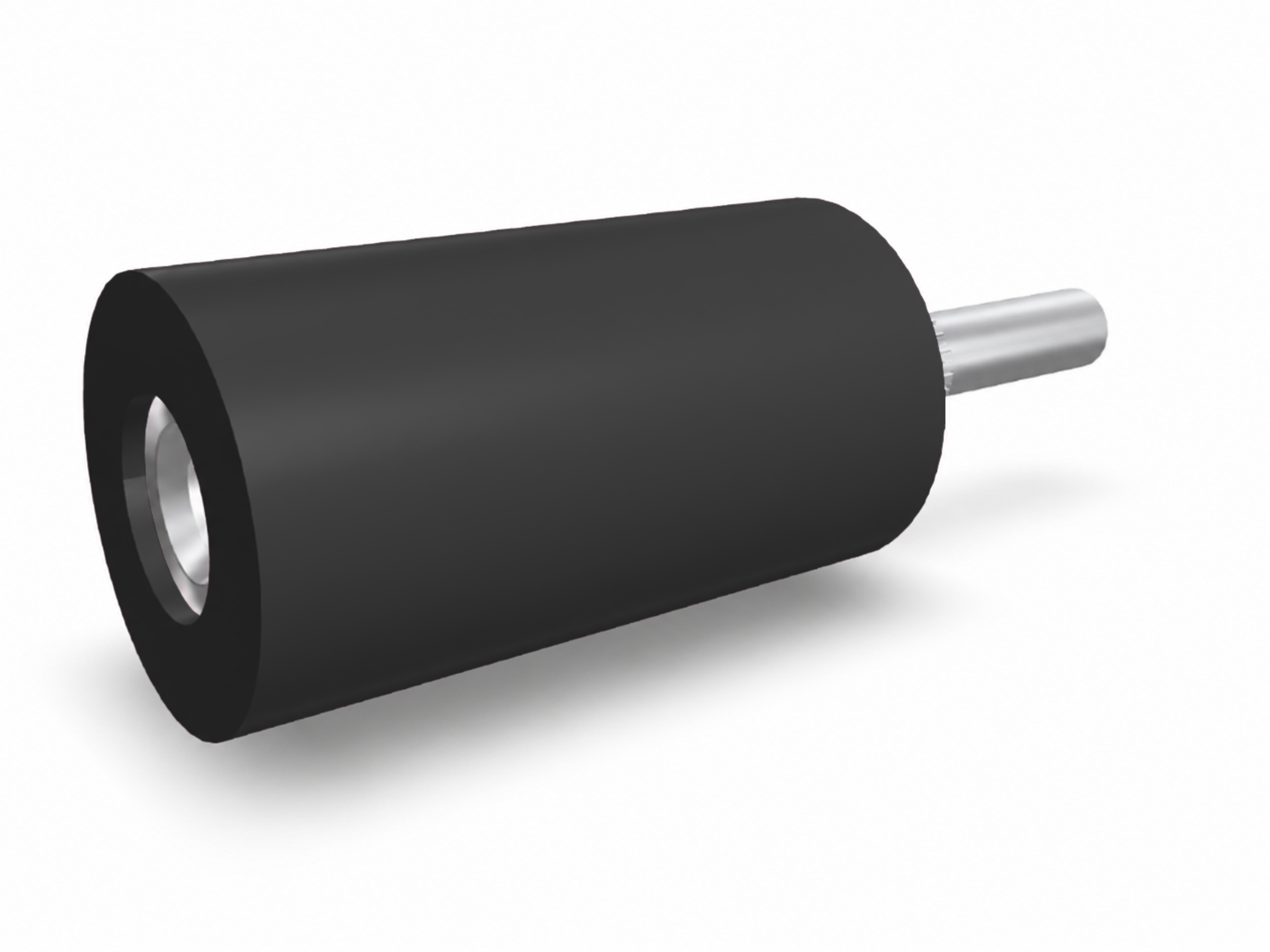

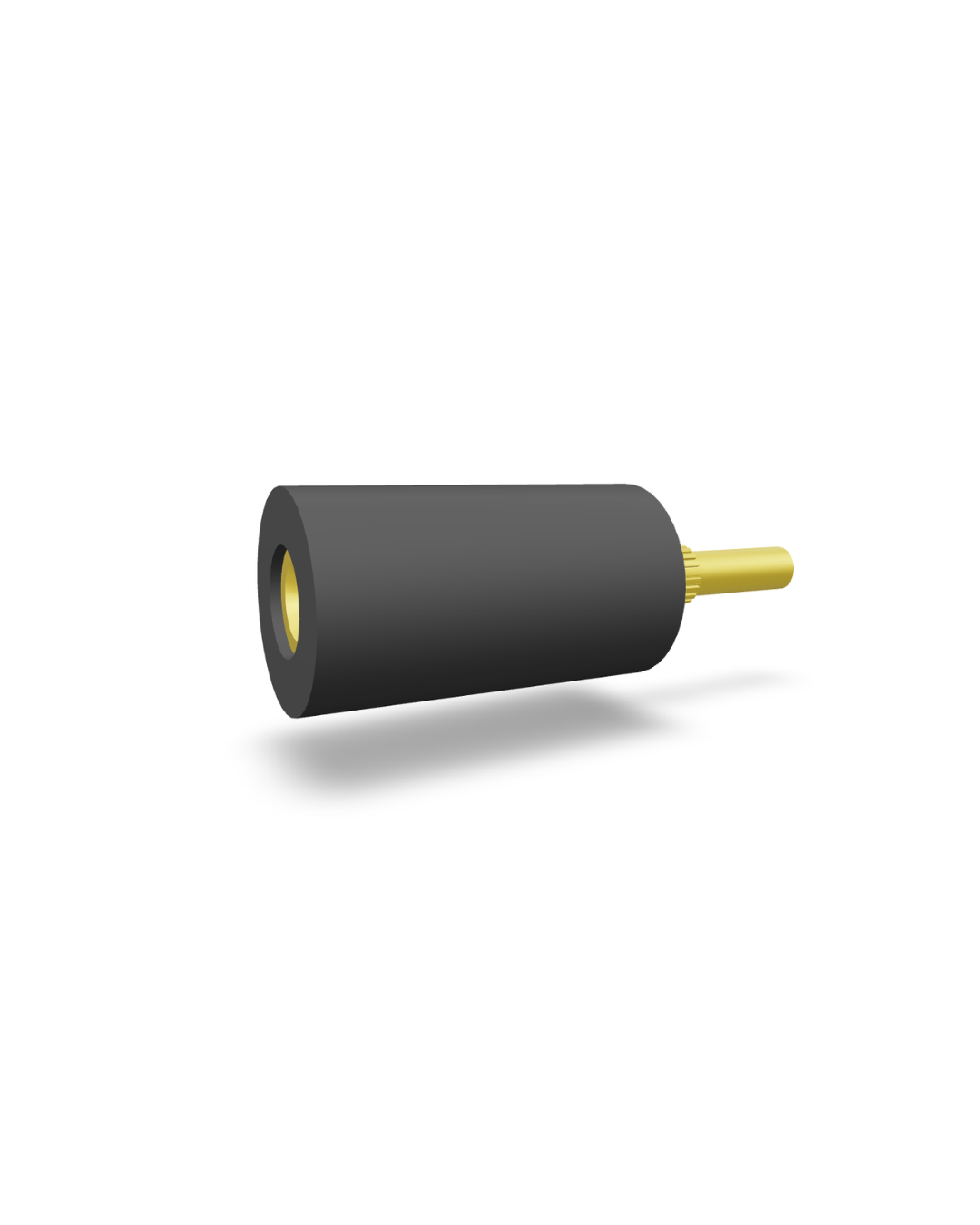

Black |
|
|
P8101-10-11-0 |
P8101-10-12-0 |
P8101-10-11-S |
P8101-10-12-S |

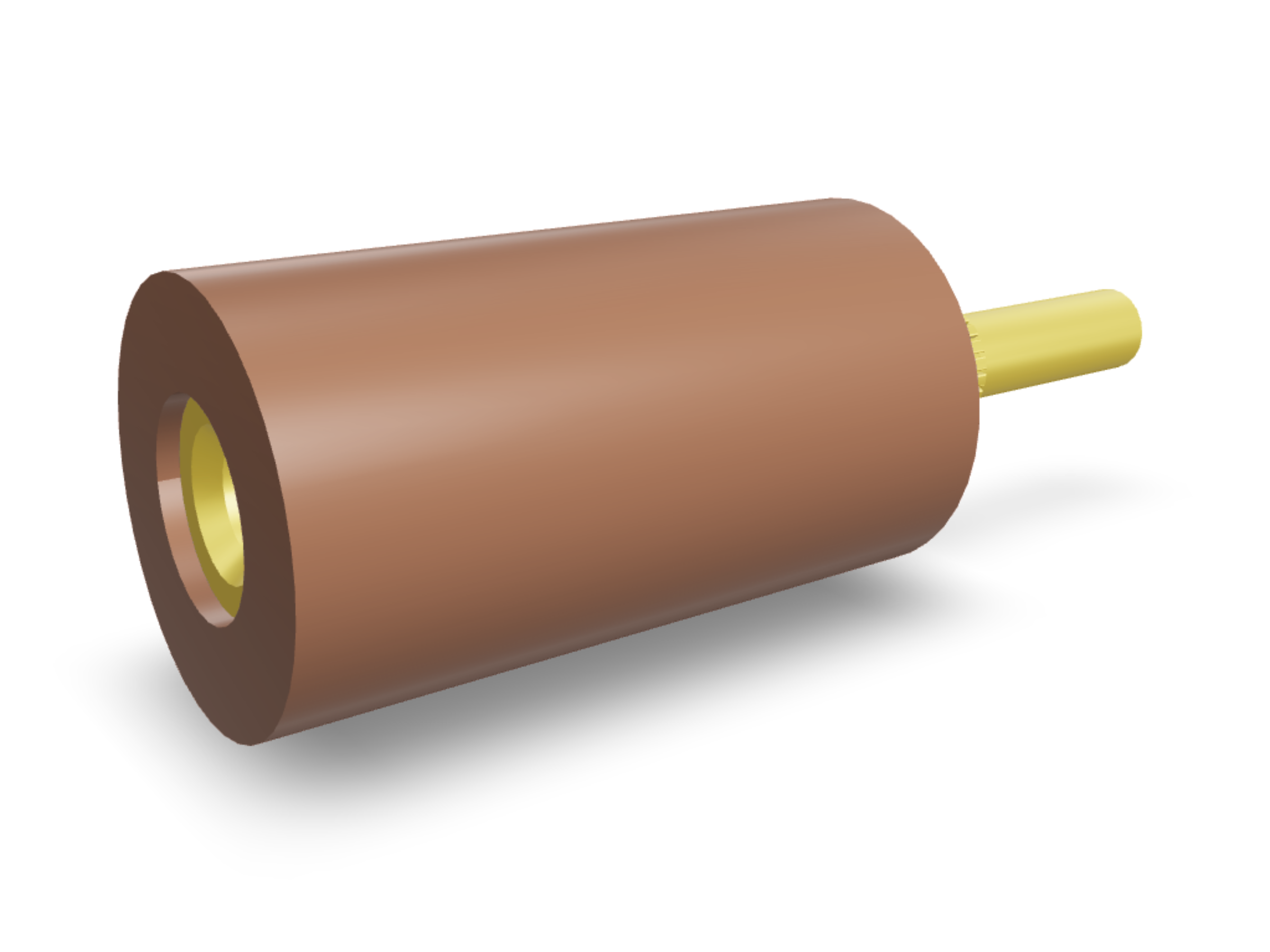

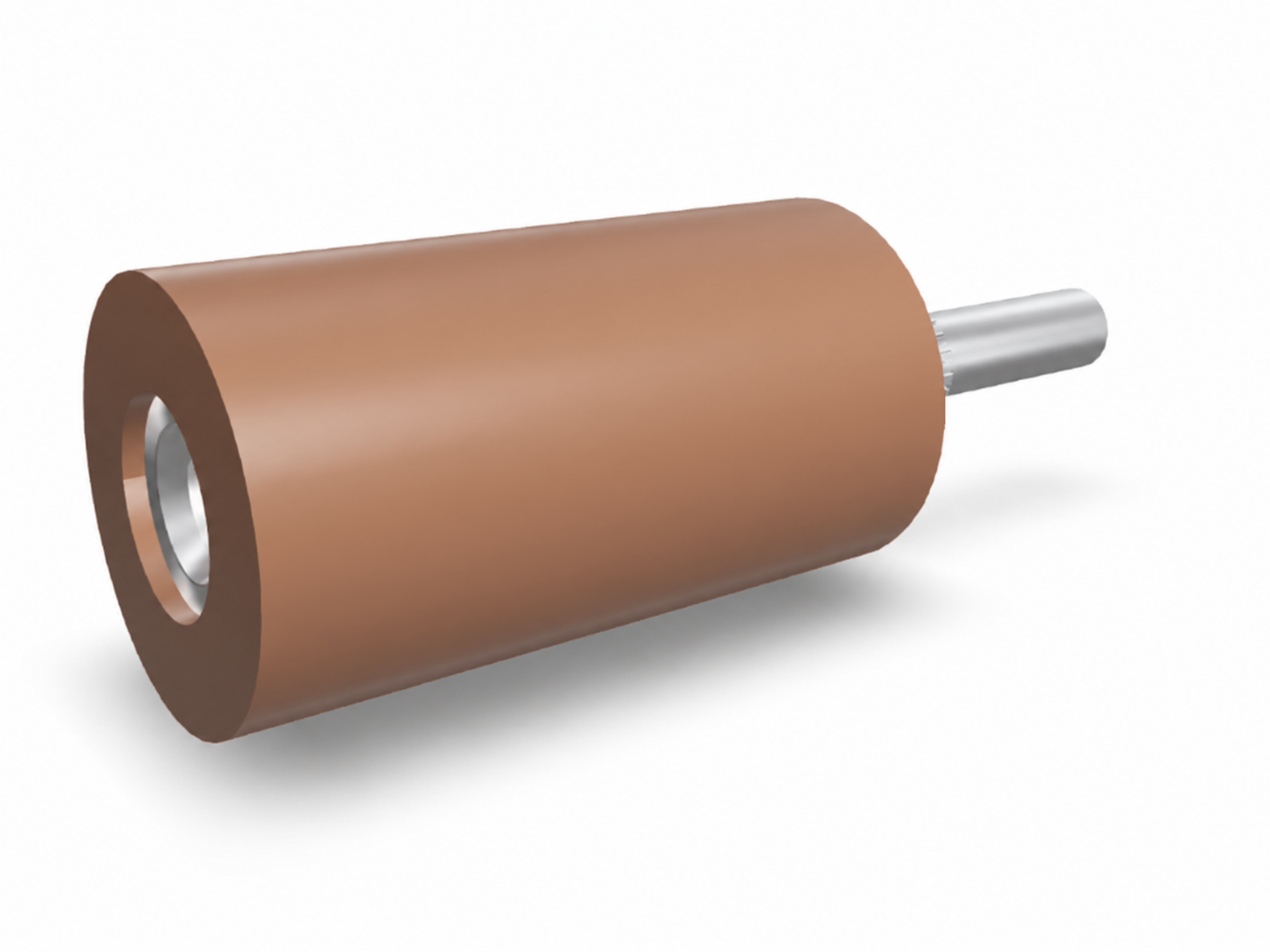

Brown |
|
|
P8101-11-11-0 |
P8101-11-12-0 |
P8101-11-11-S |
P8101-11-12-S |

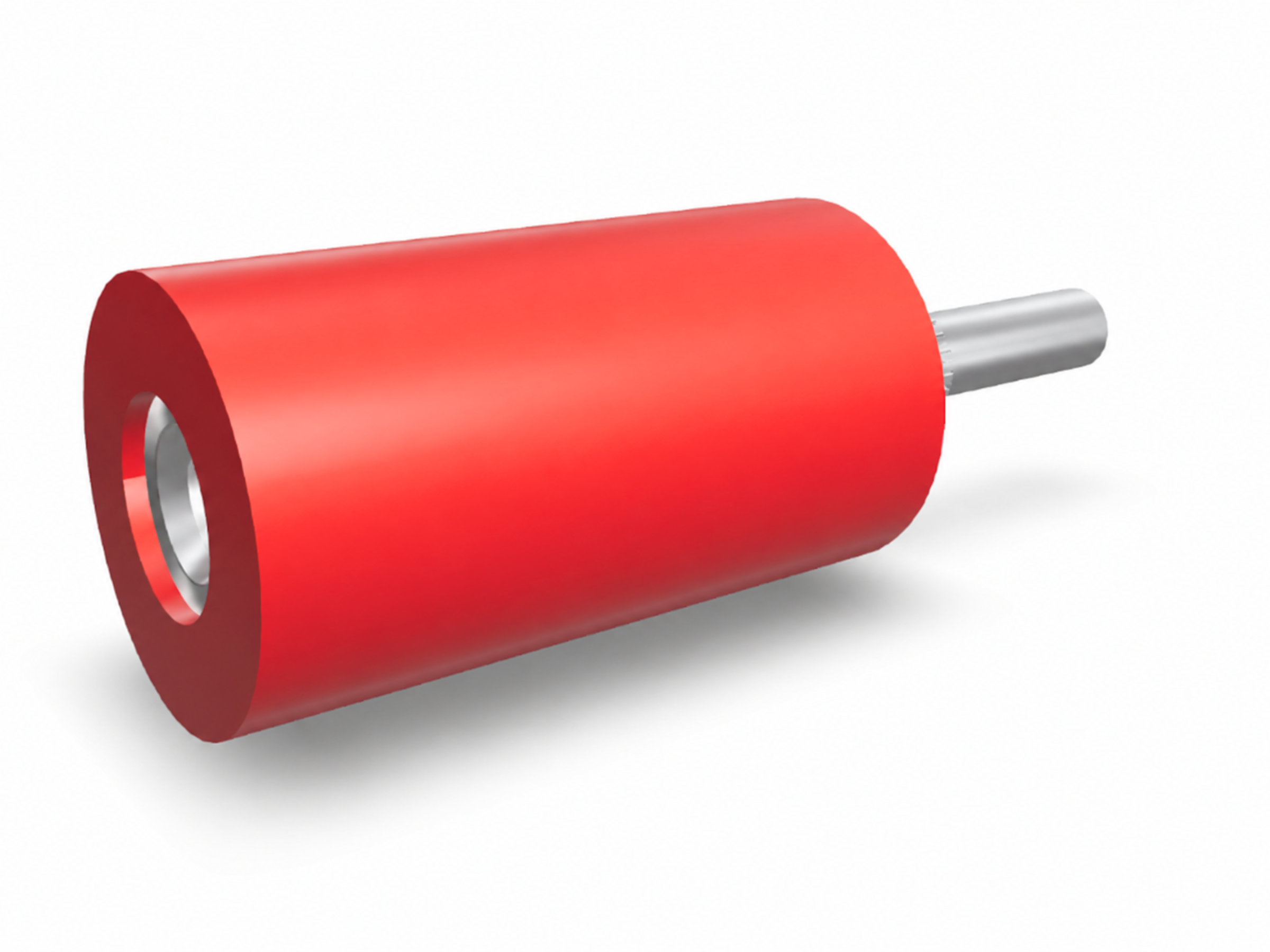

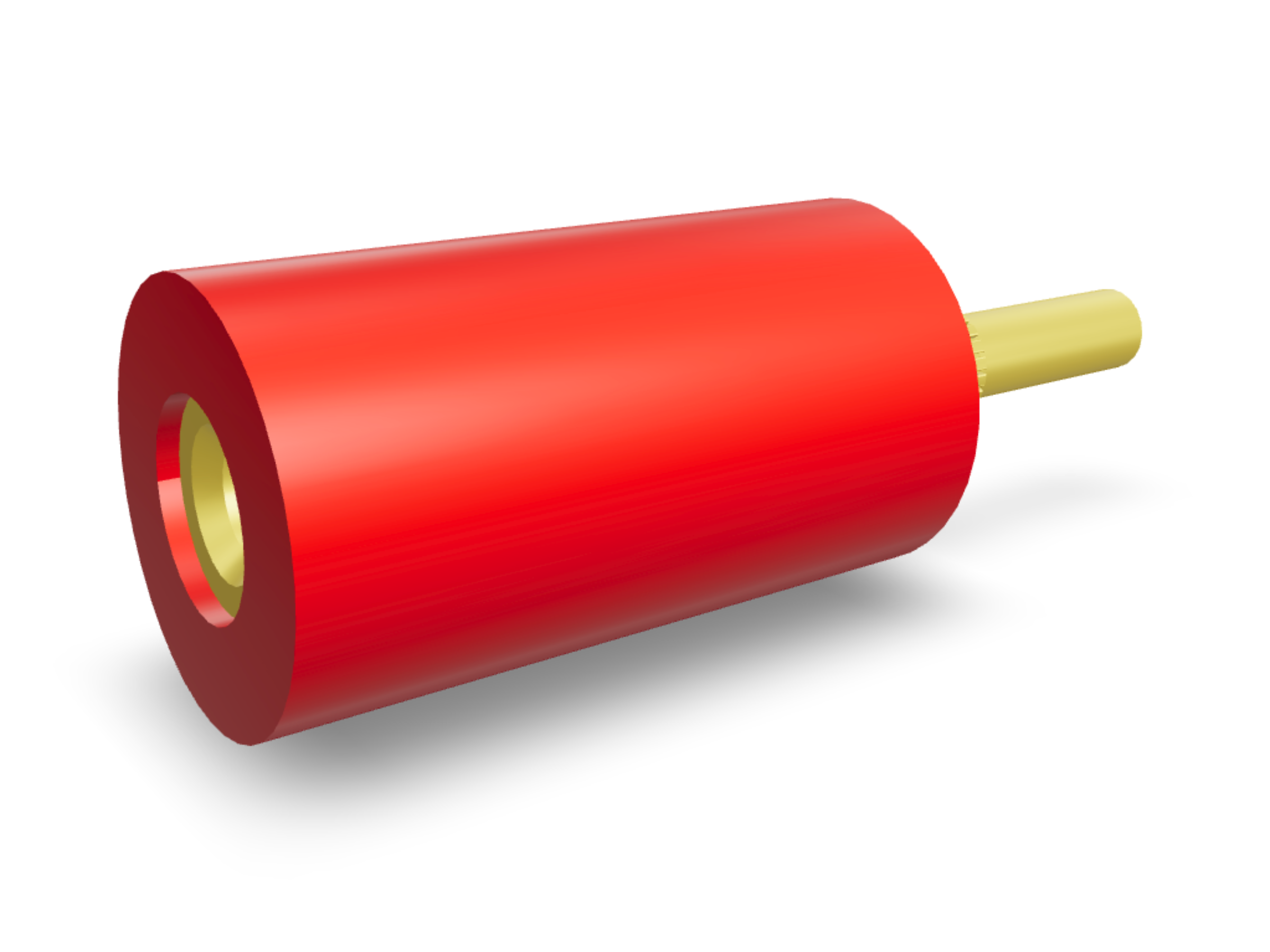

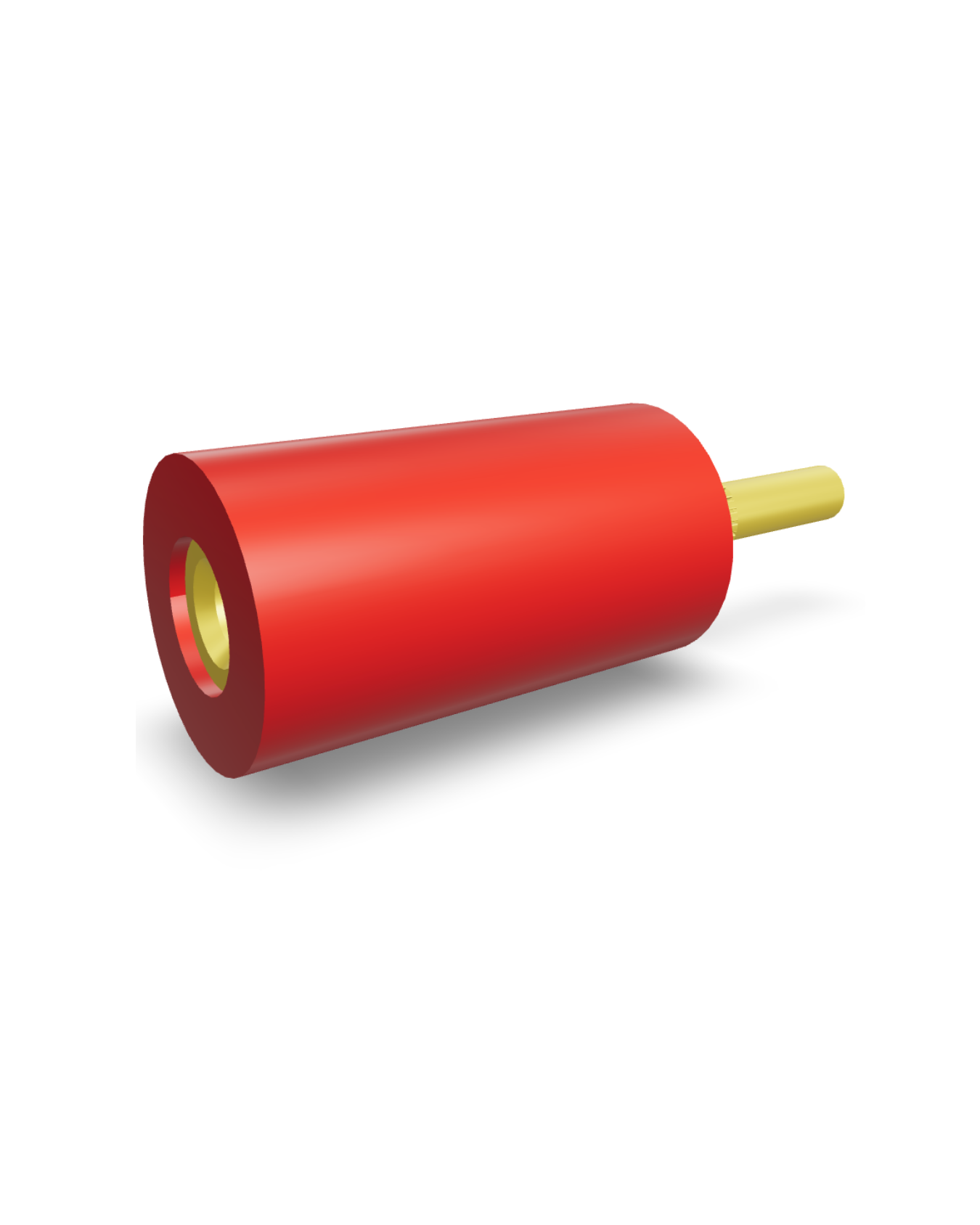

Red |
|
|
P8101-12-11-0 |
P8101-12-12-0 |
P8101-12-11-S |
P8101-12-12-S |

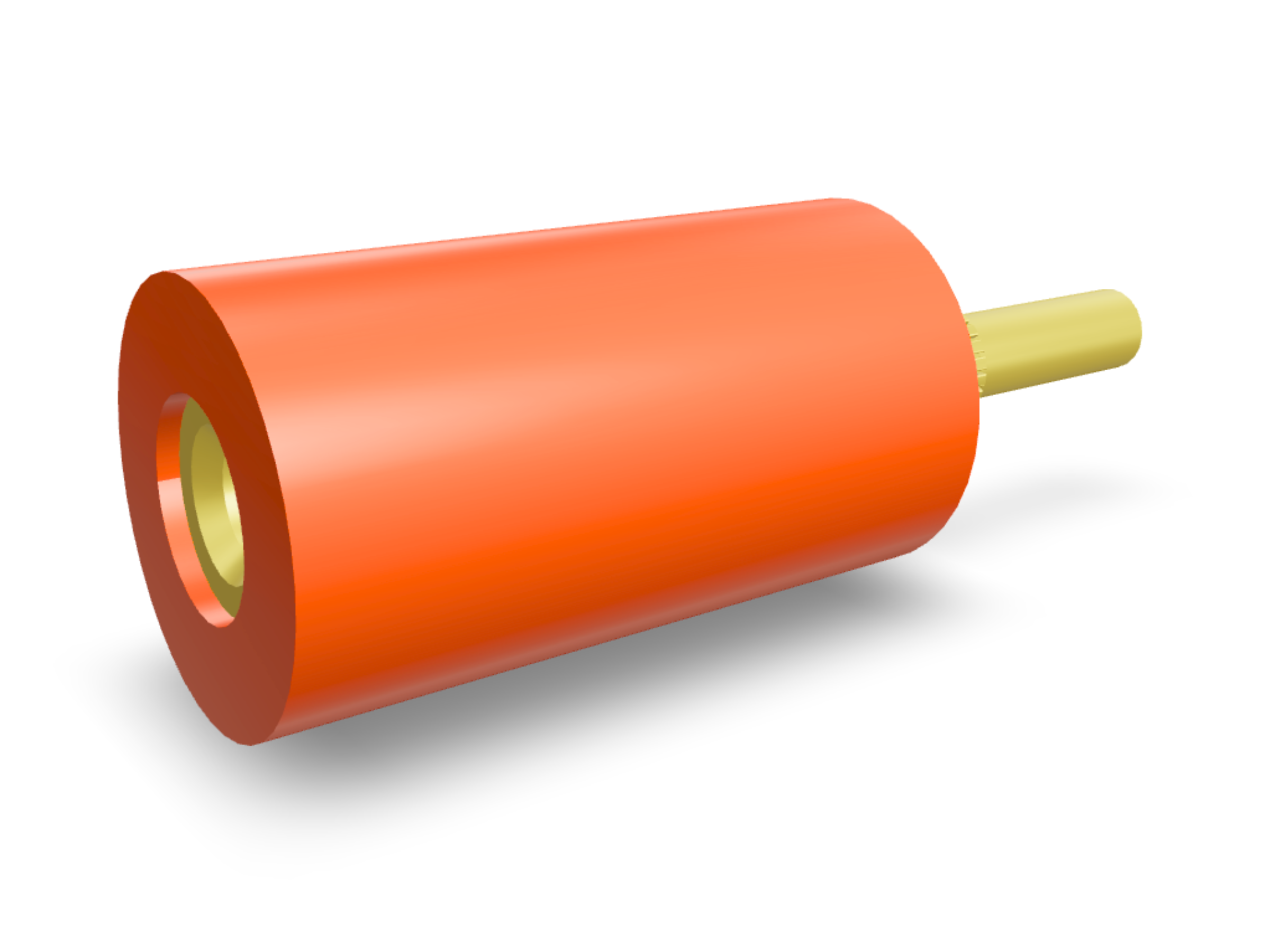

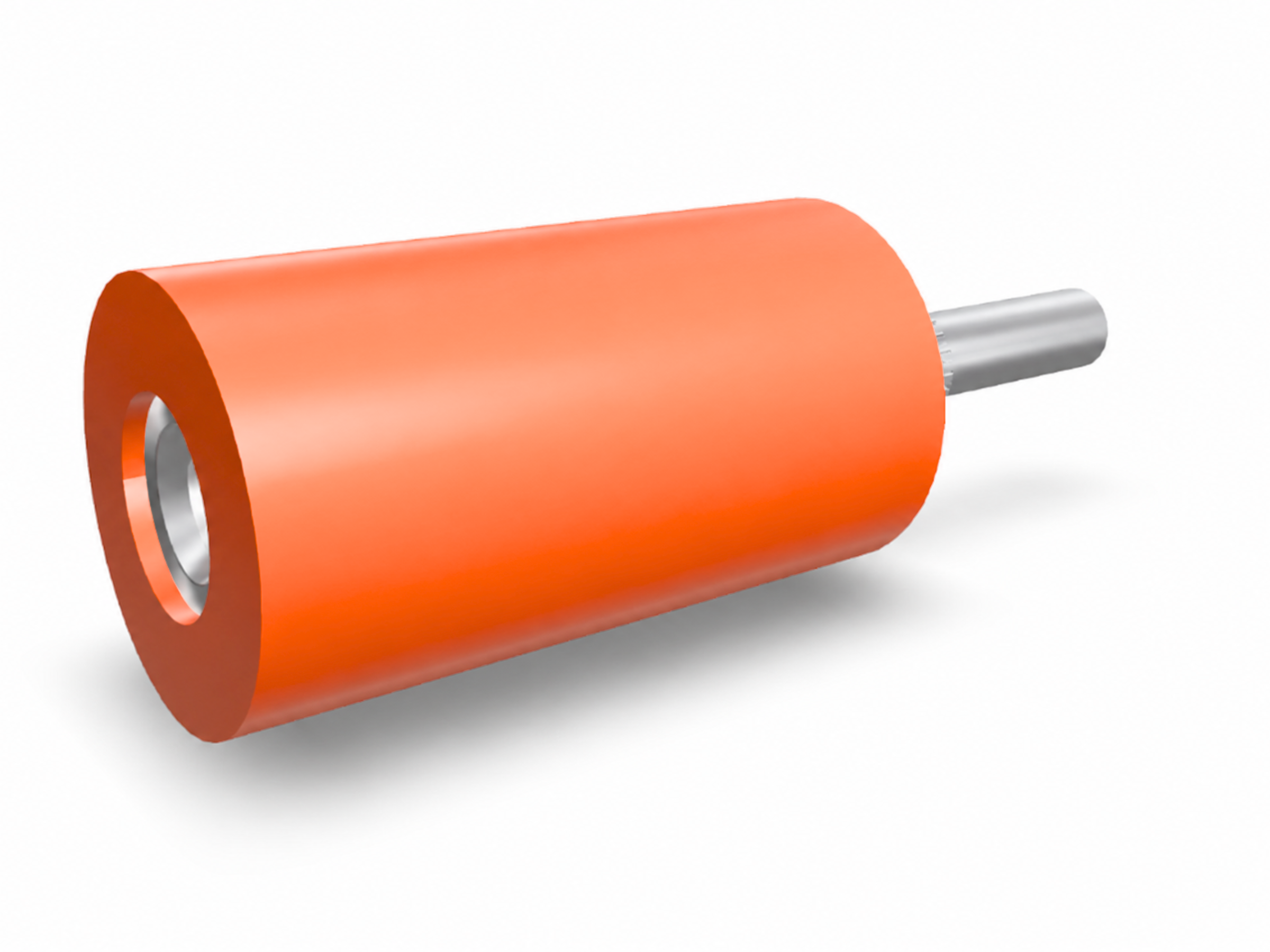

Orange |
|
|
P8101-13-11-0 |
P8101-13-12-0 |
P8101-13-11-S |
P8101-13-12-S |

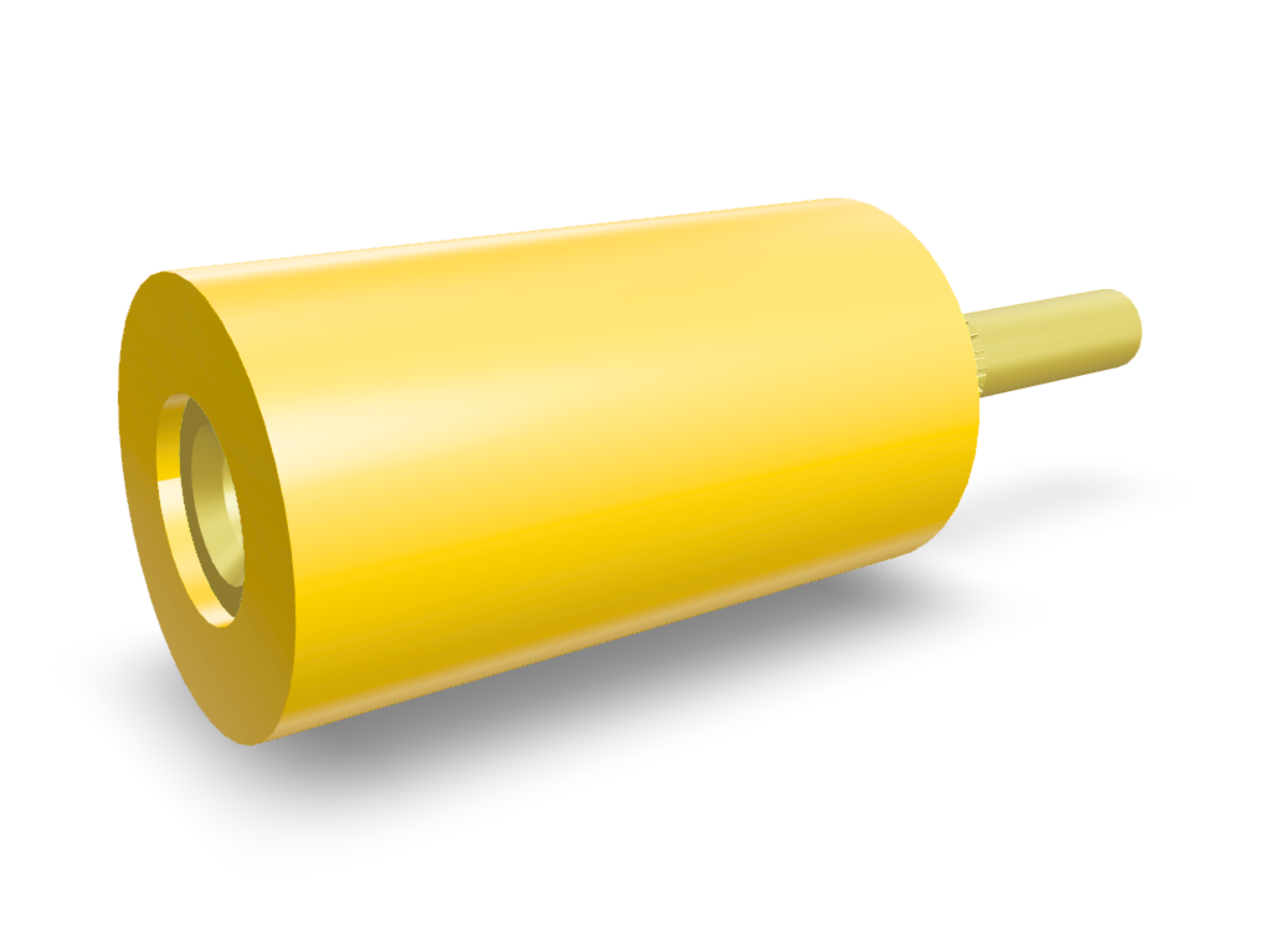

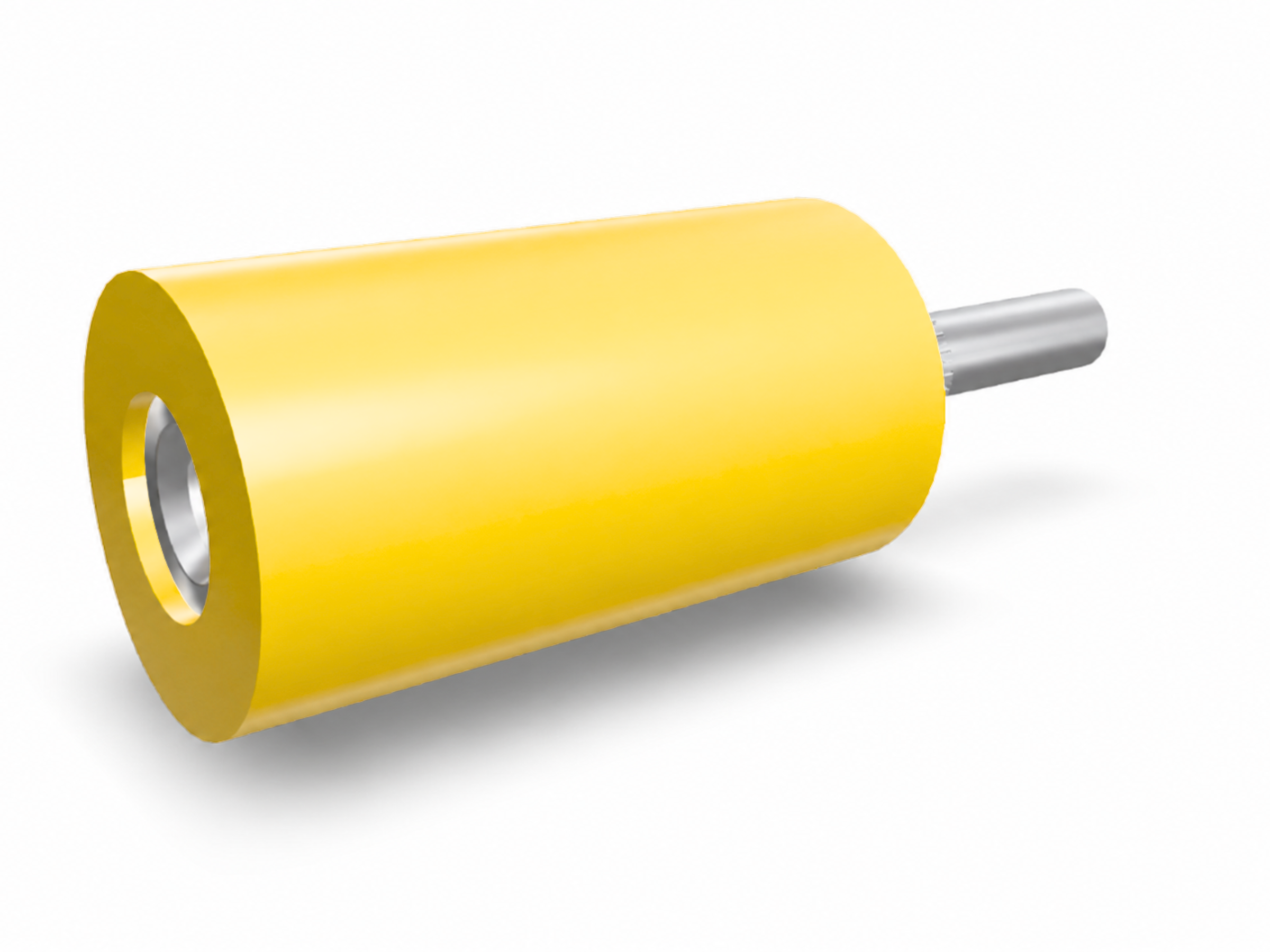

Yellow |
|
|
P8101-14-11-0 |
P8101-14-12-0 |
P8101-14-11-S |
P8101-14-12-S |

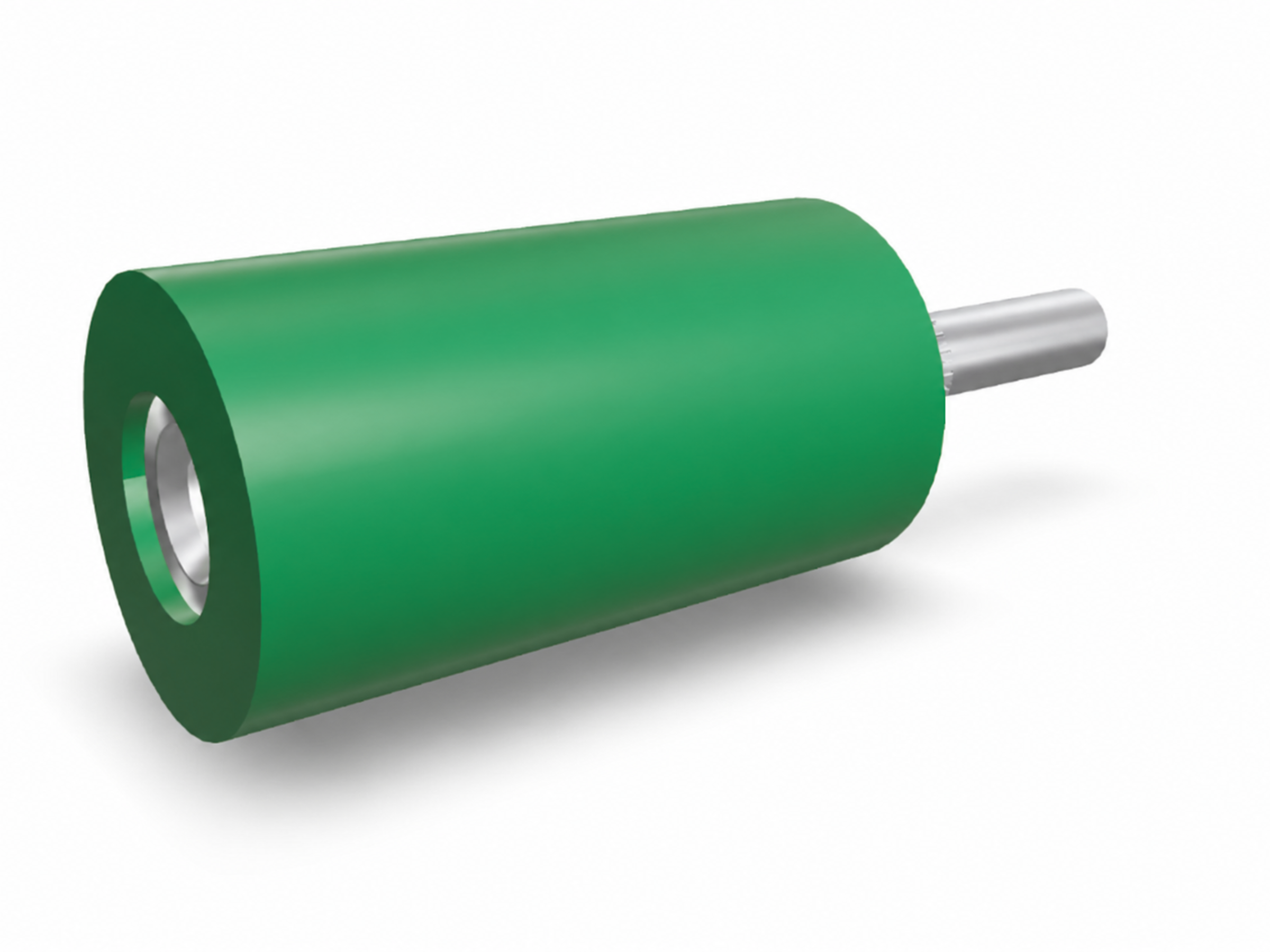

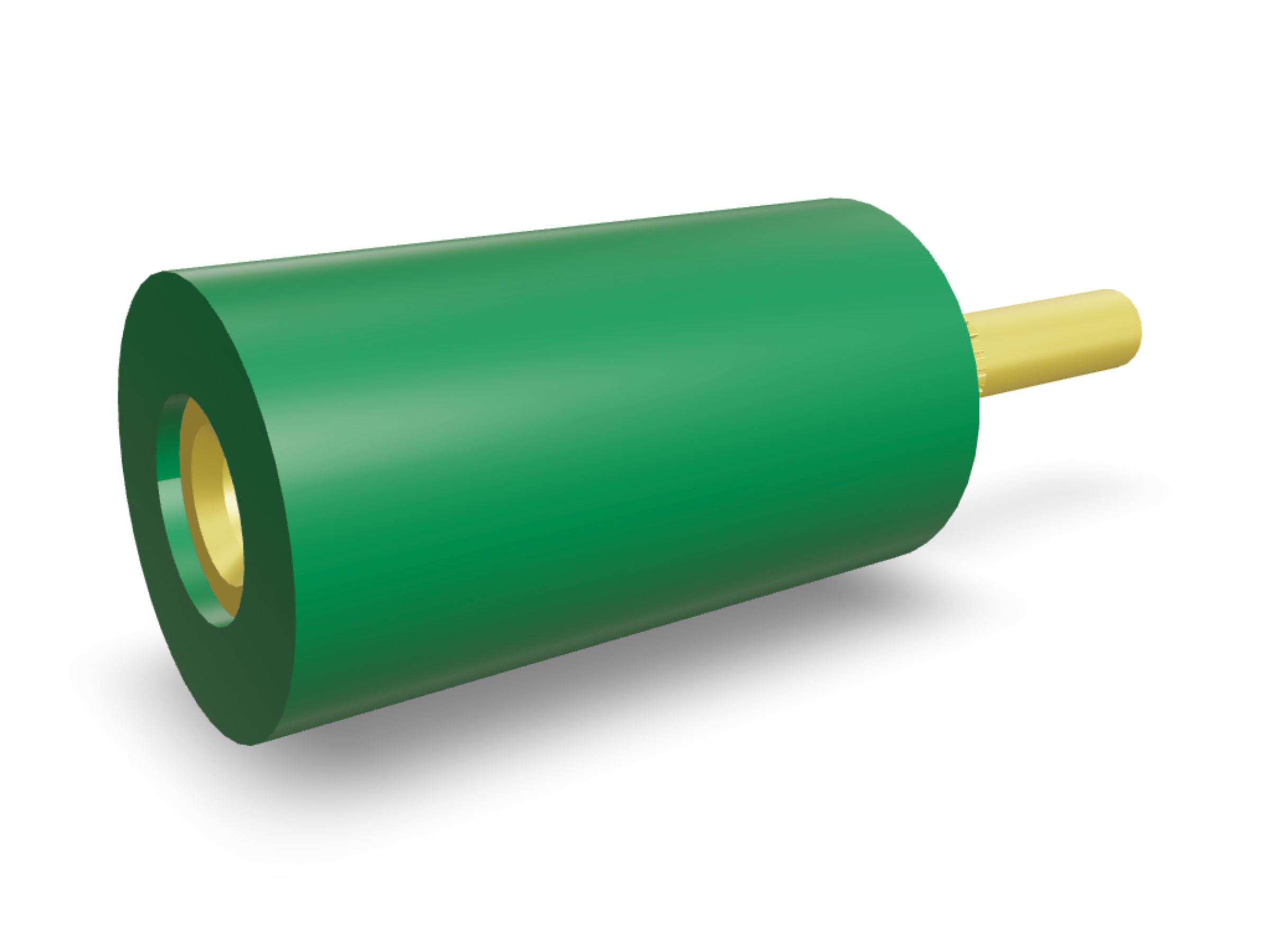

Green |
|
|
P8101-15-11-0 |
P8101-15-12-0 |
P8101-15-11-S |
P8101-15-12-S |

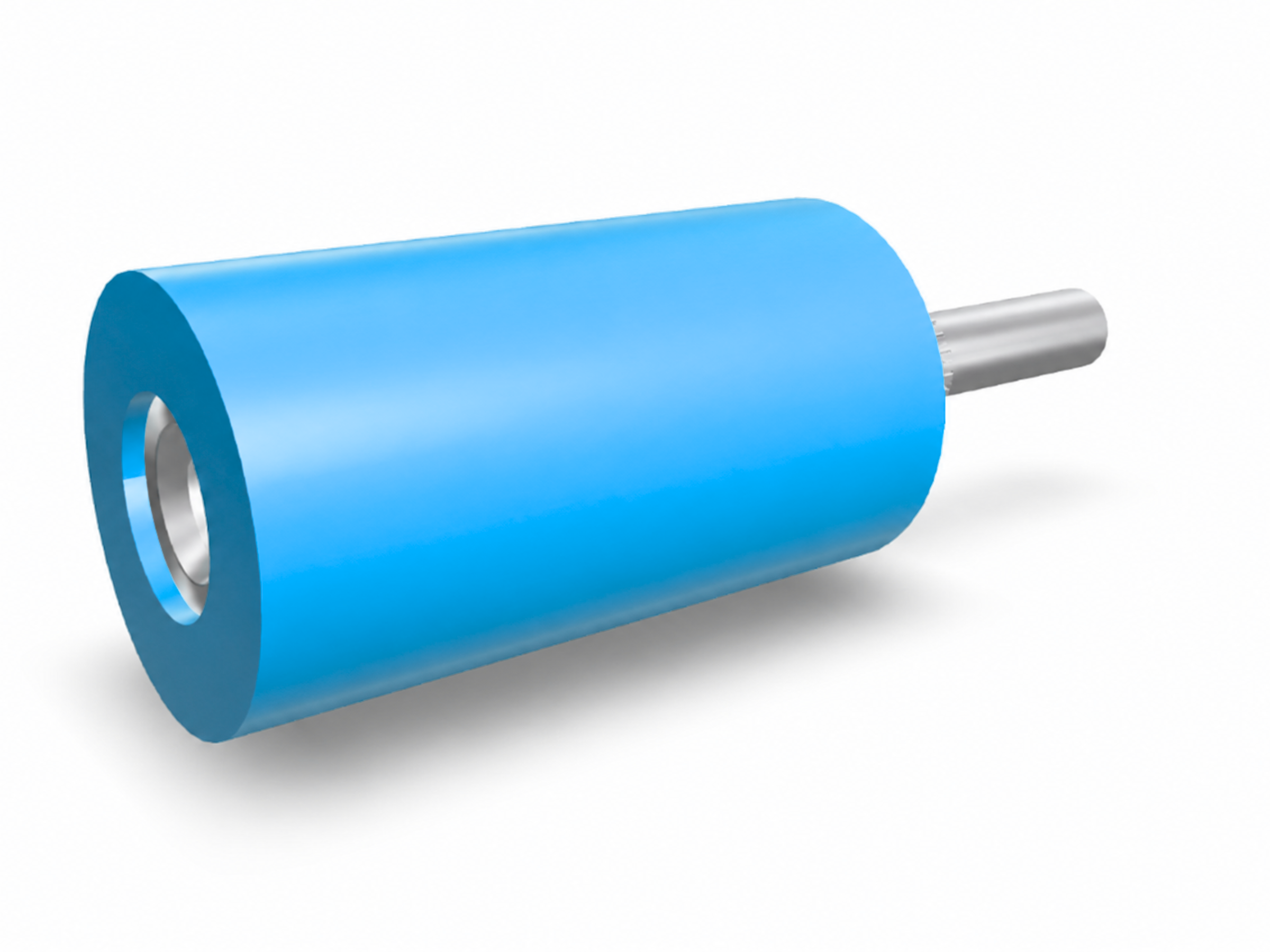

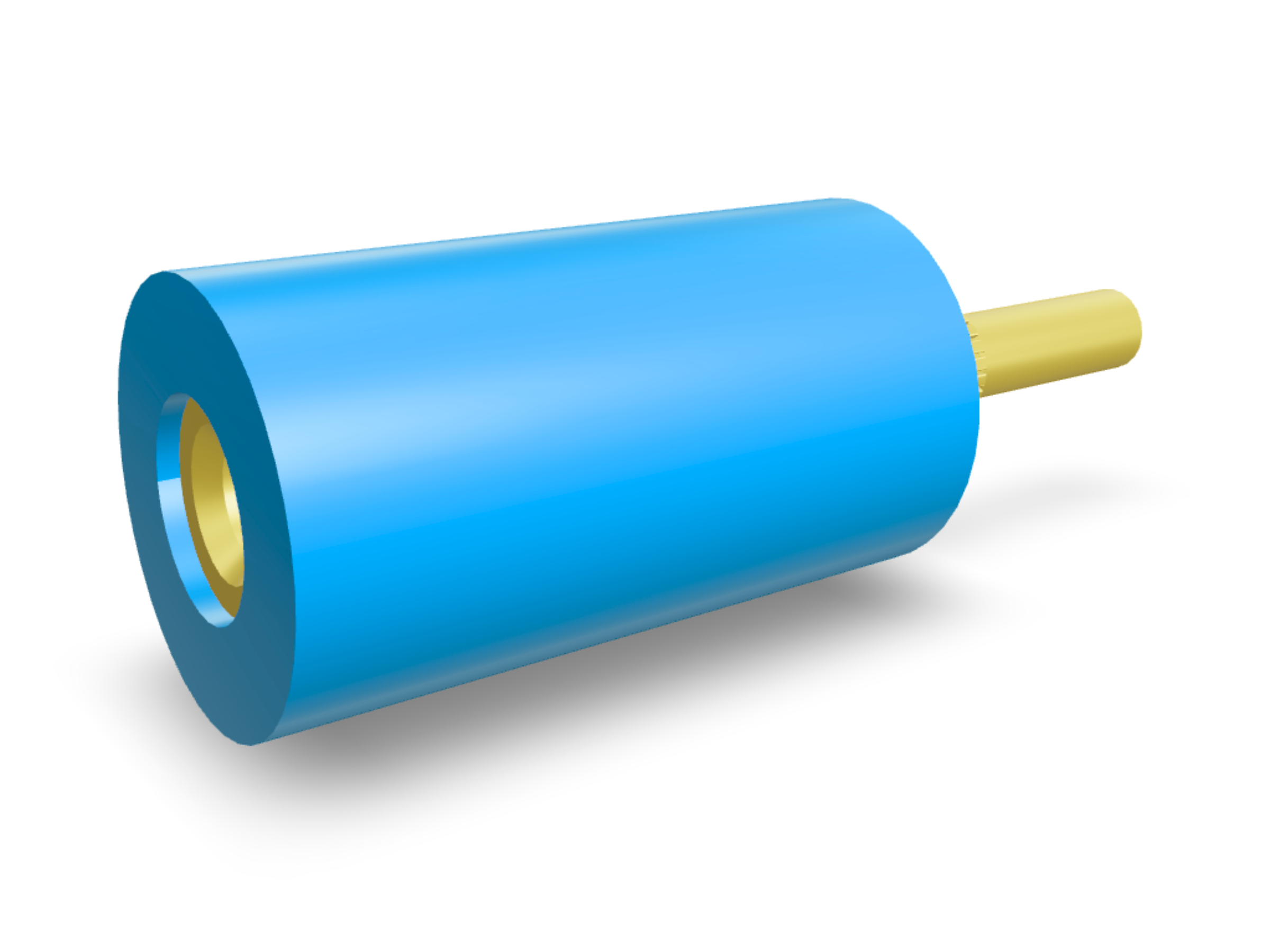

Blue |
|
|
P8101-16-11-0 |
P8101-16-12-0 |
P8101-16-11-S |
P8101-16-12-S |

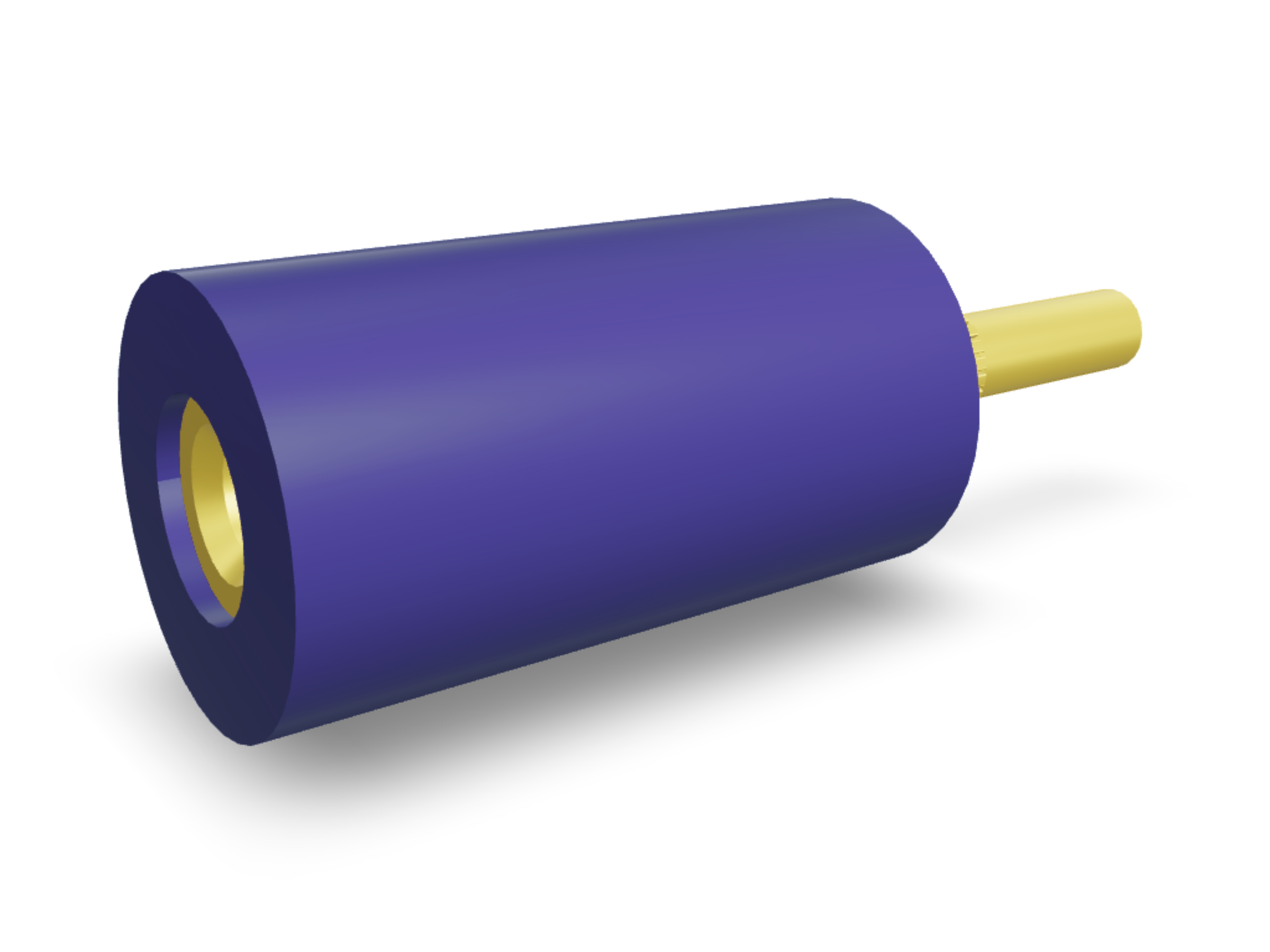

Violet |
|
|
P8101-17-11-0 |
P8101-17-12-0 |
P8101-17-11-S |
P8101-17-12-S |

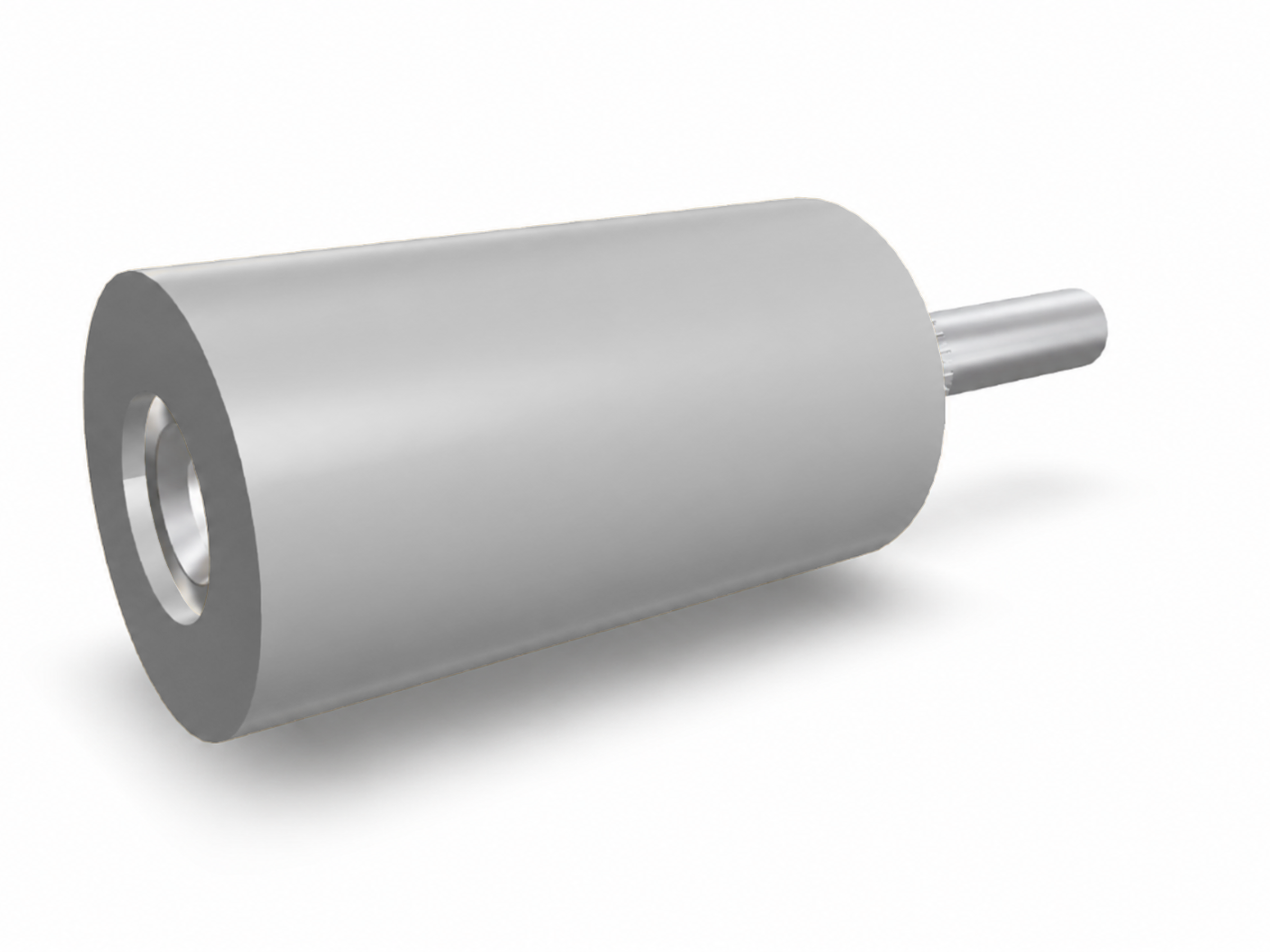

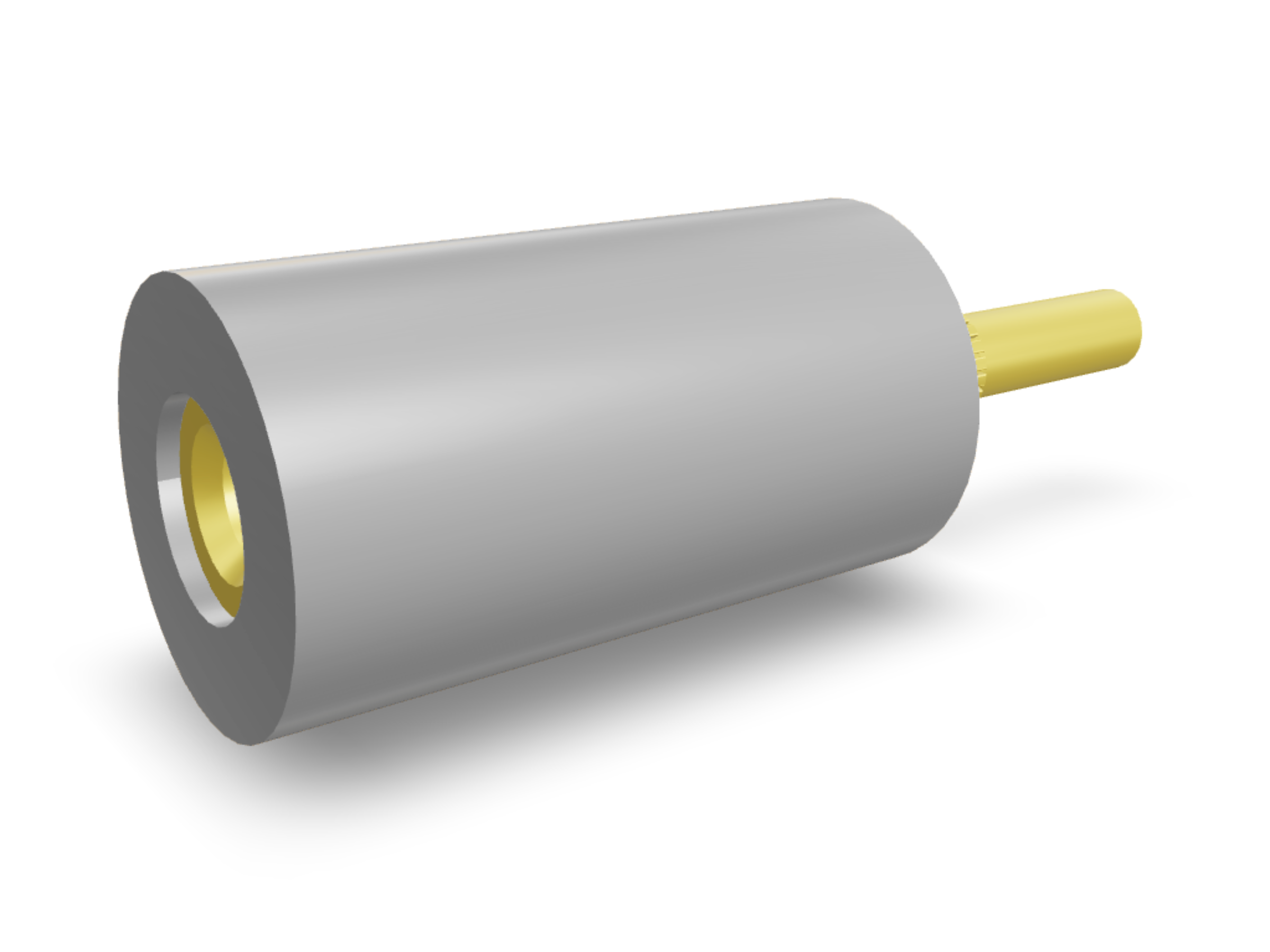

Grey |
|
|
P8101-18-11-0 |
P8101-18-12-0 |
P8101-18-11-S |
P8101-18-12-S |

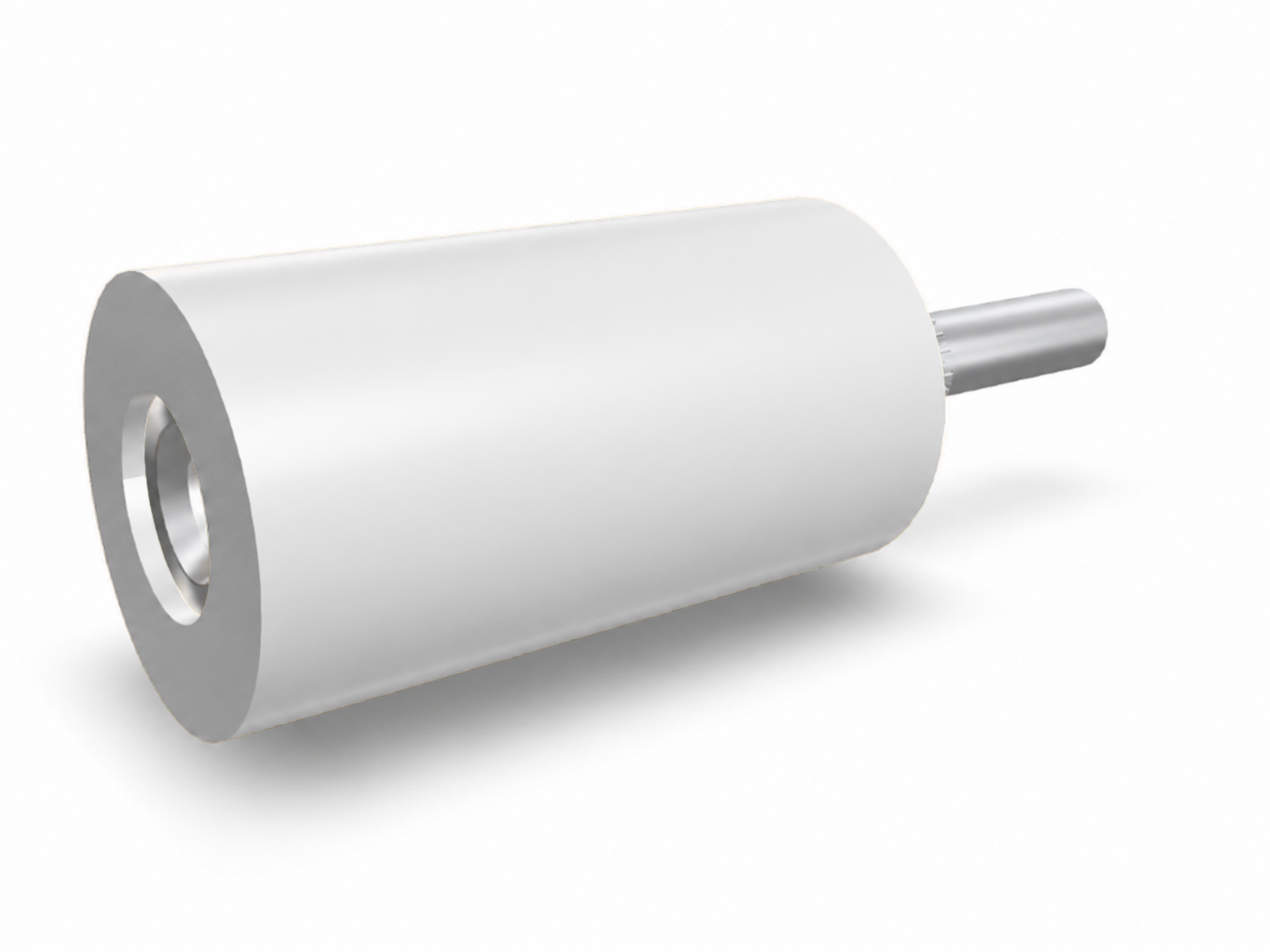

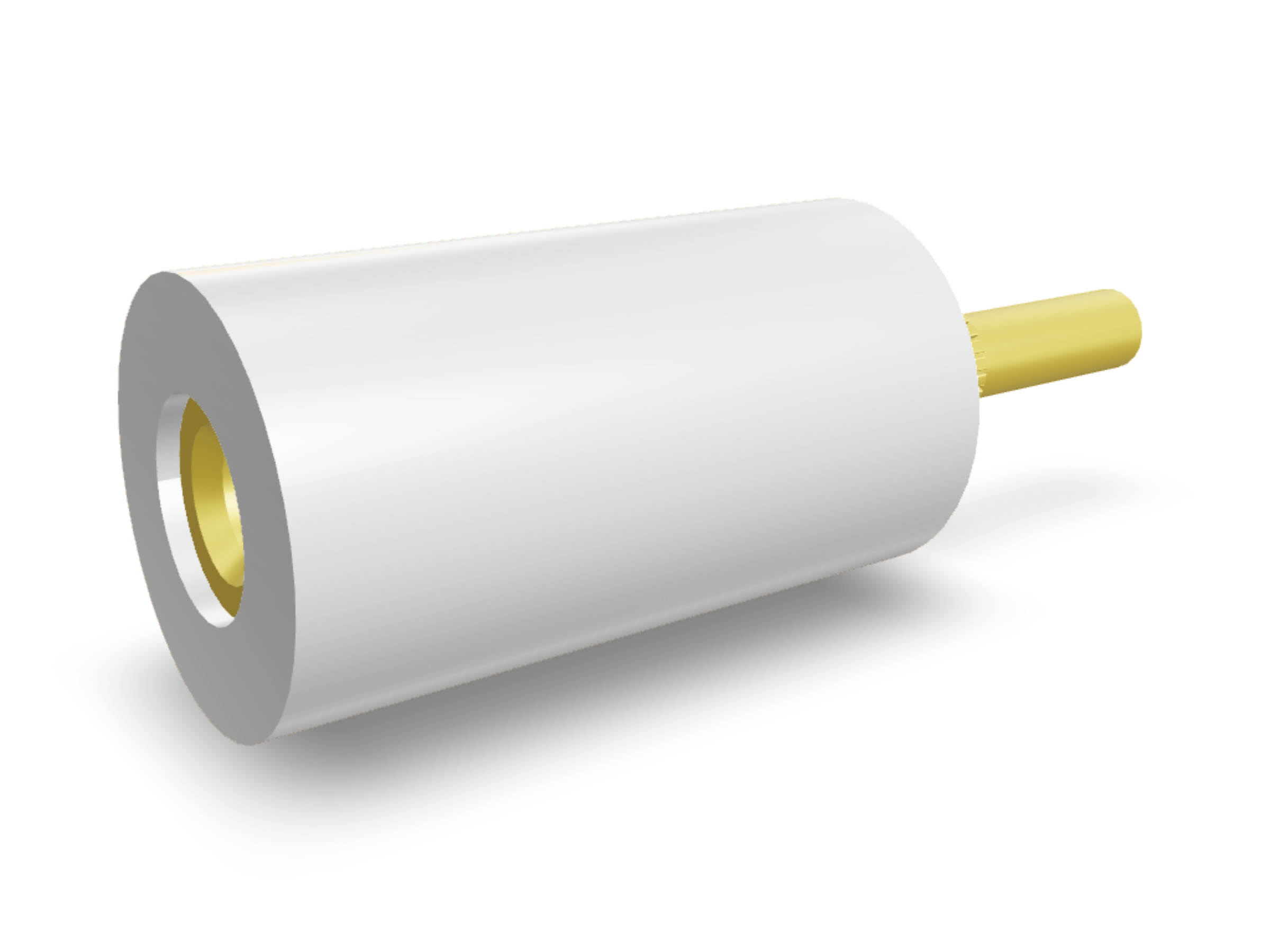

White |
|
|
P8101-19-11-0 |
P8101-19-12-0 |
P8101-19-11-S |
P8101-19-12-S |
