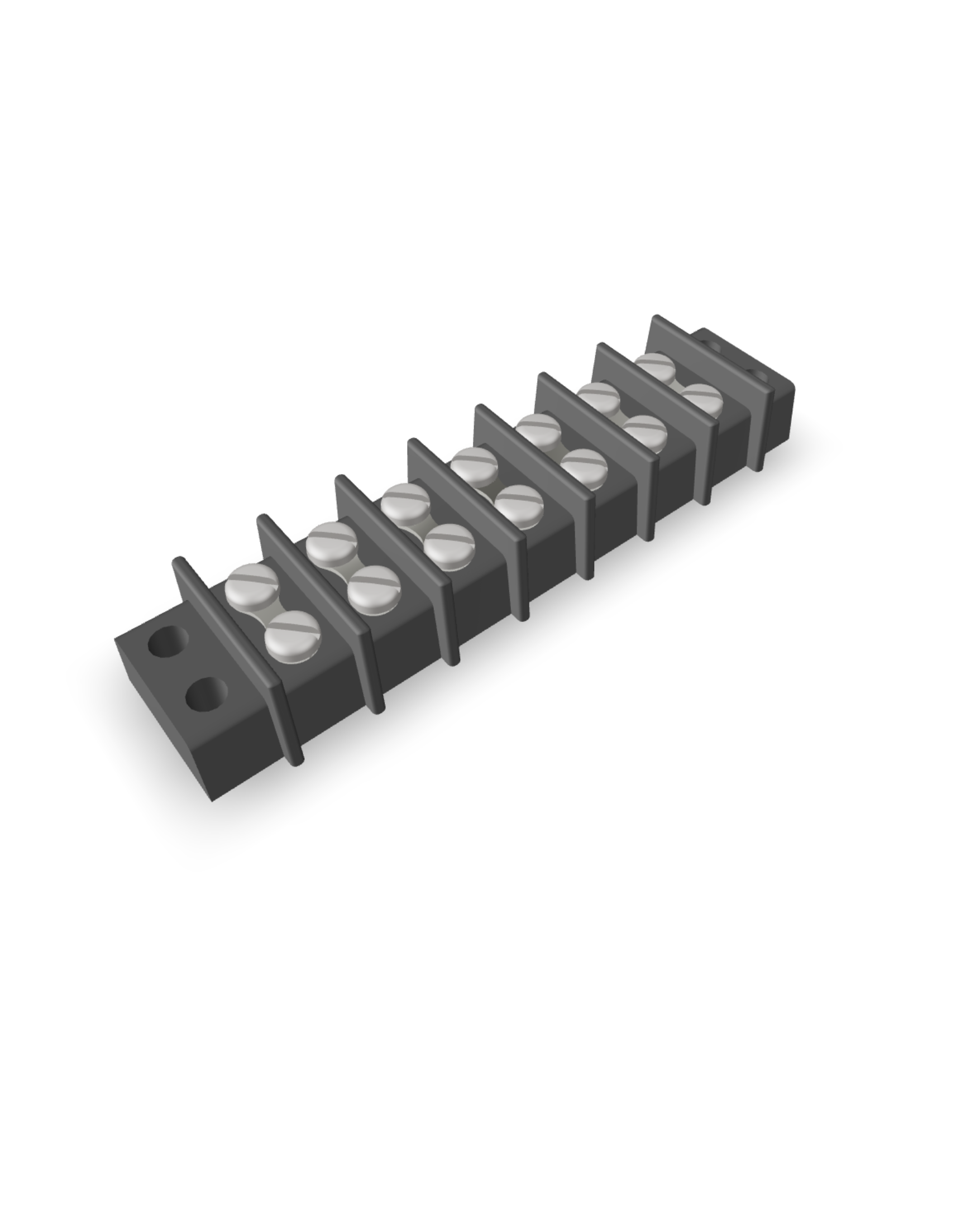

15A(P8047)
Description
P8047
SPECIFICATIONS
| Voltage Rating | 300V AC rms max |
|---|---|
| Current Rating | 15A |
| Insulation Resistance at 500V DC | 1000MΩ min |
| Dielectric Withstanding | 2000V AC rms |
| Temperature Range | -65°C to +125°C |
MATERAIL & FINISH
| Insullator | Glass Filled Thermoplastic Polyester |
|---|---|
| Terminal Lugs | Brass, Tin Plated Over Copper Flash |
| Screws | Brass, Nickel Plated Over Copper Flash |
| Jumpers | Steel, Nickel Plated Over Copper Flash |
| Marker Strip | Phenolic Nylon Filled |
ORDERING INFORMATION
| NO OF TERMINALS |
±0.40 A |
±0.40 A |
PART NUMBER |
|---|---|---|---|
| 2 | 28.50 | 36.12 | P8047-50-1F02 |
| 3 | 38.10 | 45.64 | P8047-50-1F03 |
| 4 | 47.63 | 55.17 | P8047-50-1F04 |
| 5 | 57.15 | 65.07 | P8047-50-1F05 |
| 6 | 66.68 | 74.63 | P8047-50-1F06 |
| 7 | 76.20 | 84.12 | P8047-50-1F07 |
| 8 | 85.73 | 93.68 | P8047-50-1F08 |
| 9 | 95.66 | 103.17 | P8047-50-1F09 |
| 10 | 105.18 | 112.73 | P8047-50-1F10 |
| 11 | 114.76 | 122.22 | P8047-50-1F11 |
| 12 | 124.23 | 131.78 | P8047-50-1F12 |
| 13 | 133.76 | 141.27 | P8047-50-1F13 |
| 14 | 143.28 | 150.83 | P8047-50-1F14 |
| 15 | 152.81 | 160.32 | P8047-50-1F15 |
| 16 | 162.33 | 169.88 | P8047-50-1F16 |
| 17 | 171.86 | 179.43 | P8047-50-1F17 |
| 18 | 181.38 | 188.93 | P8047-50-1F18 |
| 19 | 190.91 | 198.83 | P8047-50-1F19 |
| 20 | 200.80 | 208.36 | P8047-50-1F20 |
