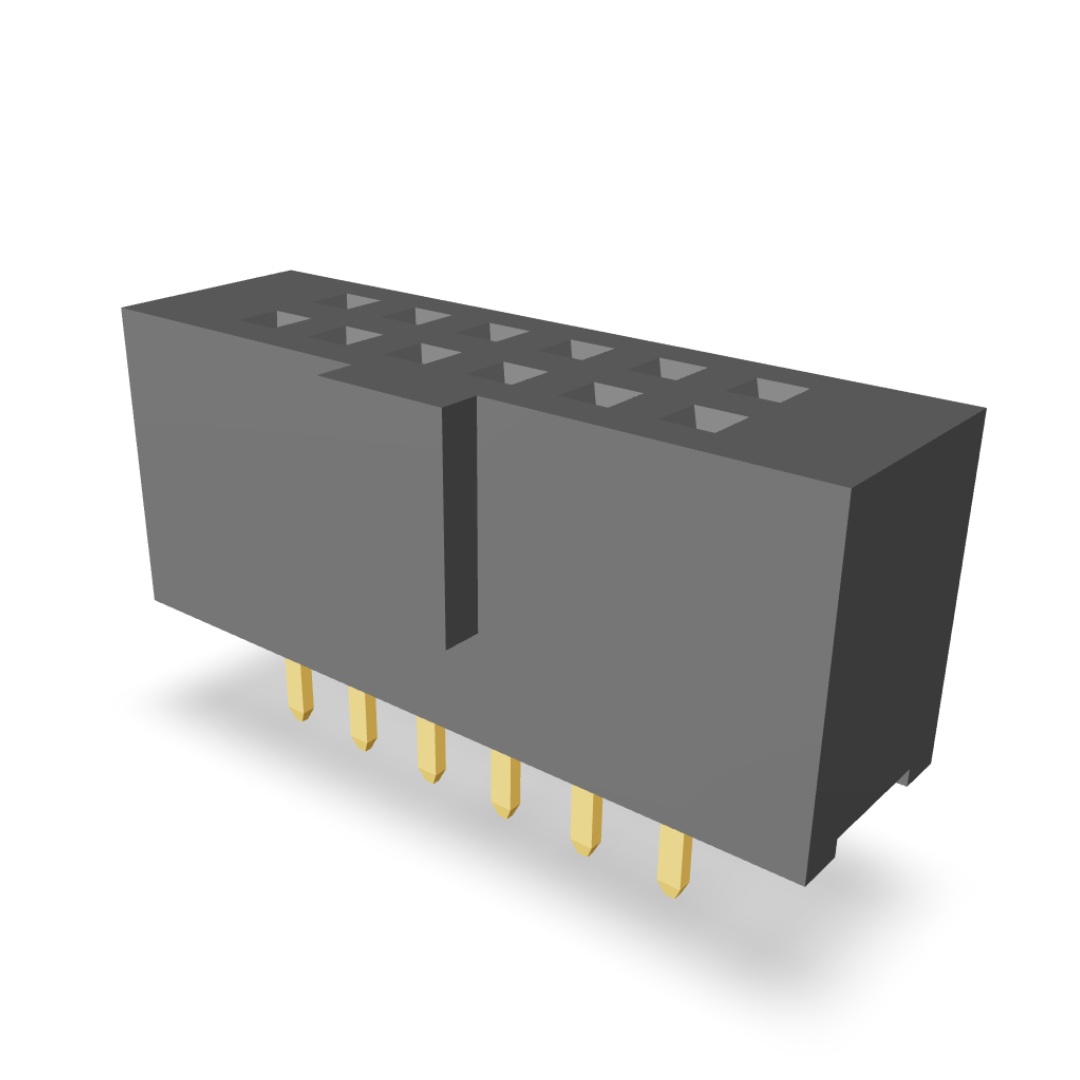

2.54mm Pitch Female Header 8.5mm Base With Polarisation Pad Double Row (Straight) P9703
Description
Its double-row design and polarization pad guarantee correct mating alignment, efficient electronic applications.
Material and Finish
Insulation
Material: |
Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Brass |
Contact Plating: |
Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
1000M OHMS Min |
Contact Resistance: |
20m OHMS Max |
Dielectric Voltage: |
1000V AC/Min |
Part No
P9703-XX-21
