Horizontal Jack Tip (Test Point) For Ø2.03mm(P8020-1X-3X-X)
Description
Its robust construction provides reliable performance in various environments, ensuring consistent and dependable connections.
Material & Finish
Insulator: |
Polypropylene |
Contact: |
Beryllium Copper |
Finish : |
Silver/Gold Plated |
Packaging Type: |
Bulk |
Specifications
Voltage Rating |
600V |
Current Rating |
4A max |
Contact Resistance |
5mΩ max |
Insulation Resistance |
10000MΩ min |
Dielectric withsatnding |
2500V rms |
Mechanical Data
Insertion Force |
2.2kg max |
Extraction Force |
0.22kg min |
Environmental Data
Temperature Range |
-40°C to +70°C |
Variants
Colour |
Silver Plated Image |
Gold Plated Image |
Part Number | |||
|---|---|---|---|---|---|---|
For Tail Length = 3.50mm |
For Tail Length = 5.56mm |
|||||
Silver Plated |
Gold Plated |
Silver Plated |
Gold Plated |
|||

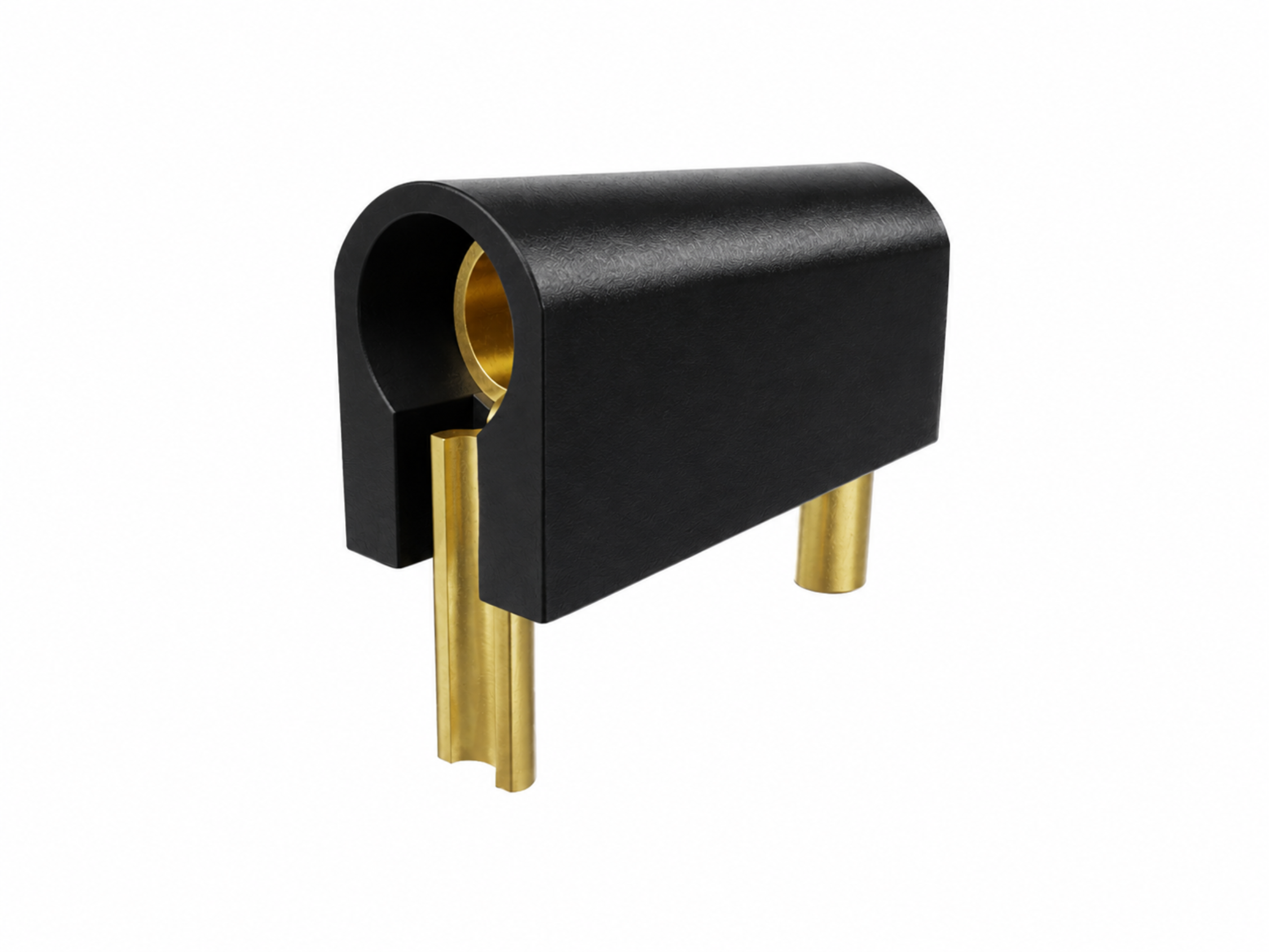

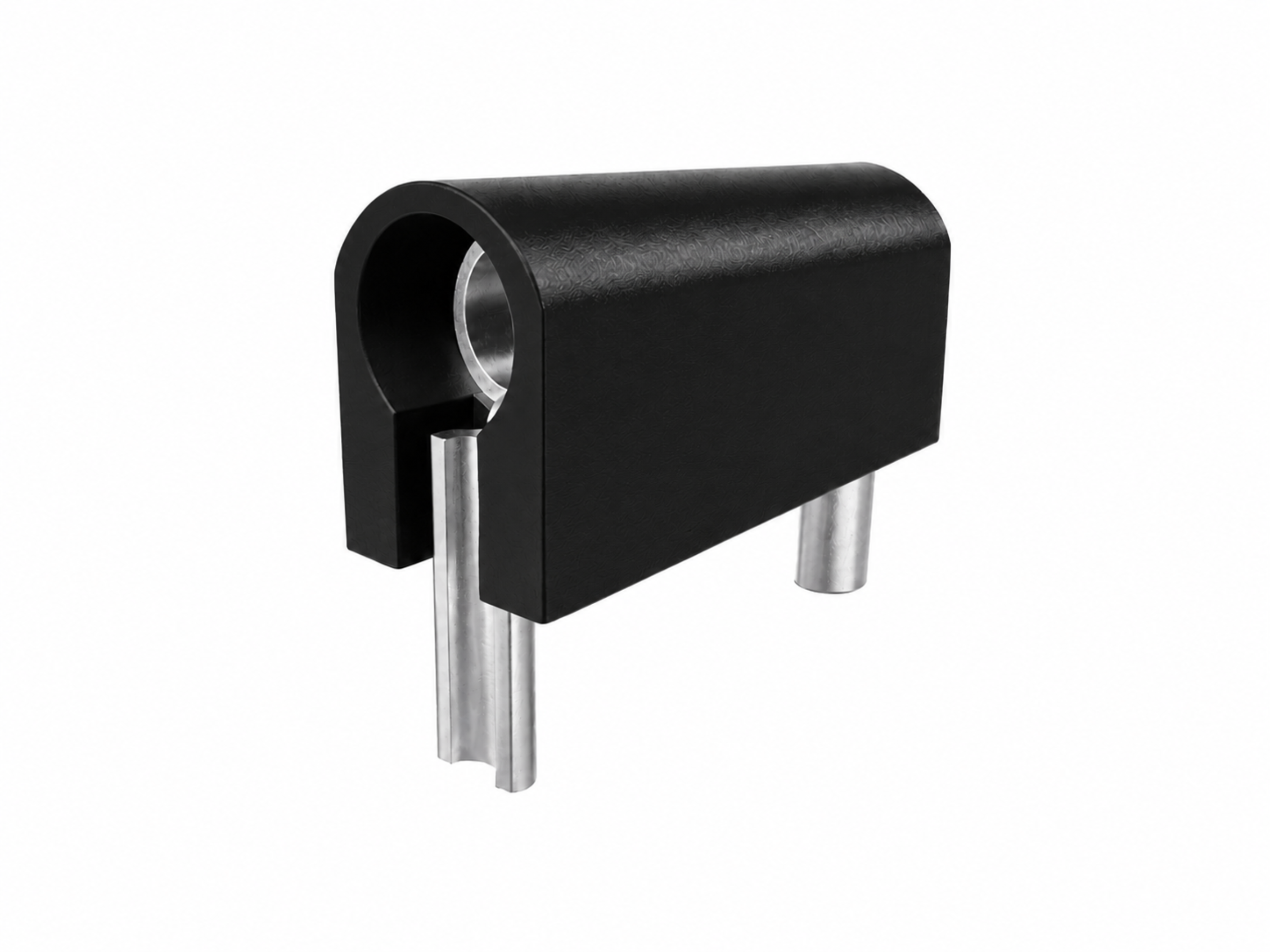

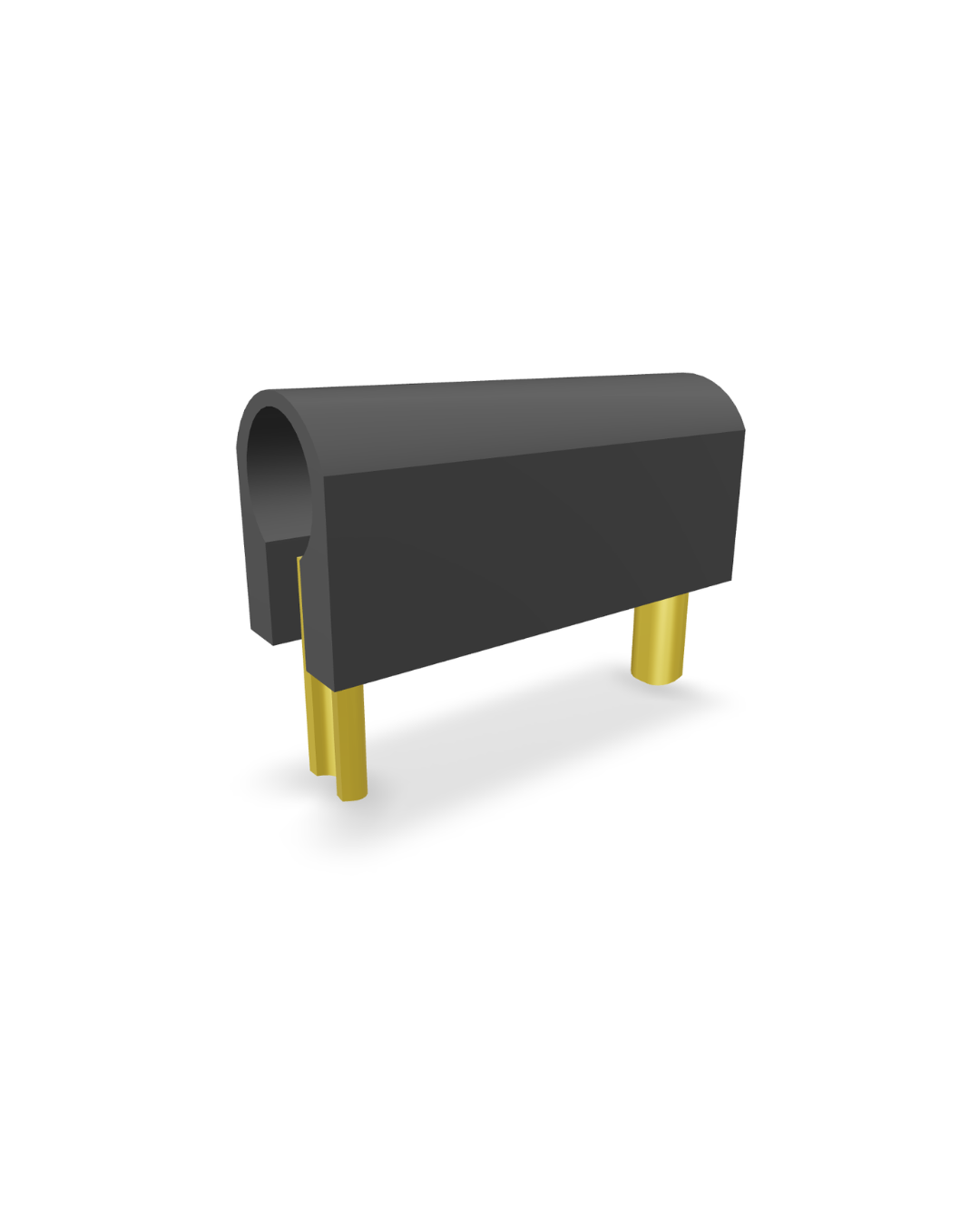

Black |
 |
 |
P8020-10-31-0 |
P8020-10-32-0 |
P8020-10-31-L |
P8020-10-32-L |

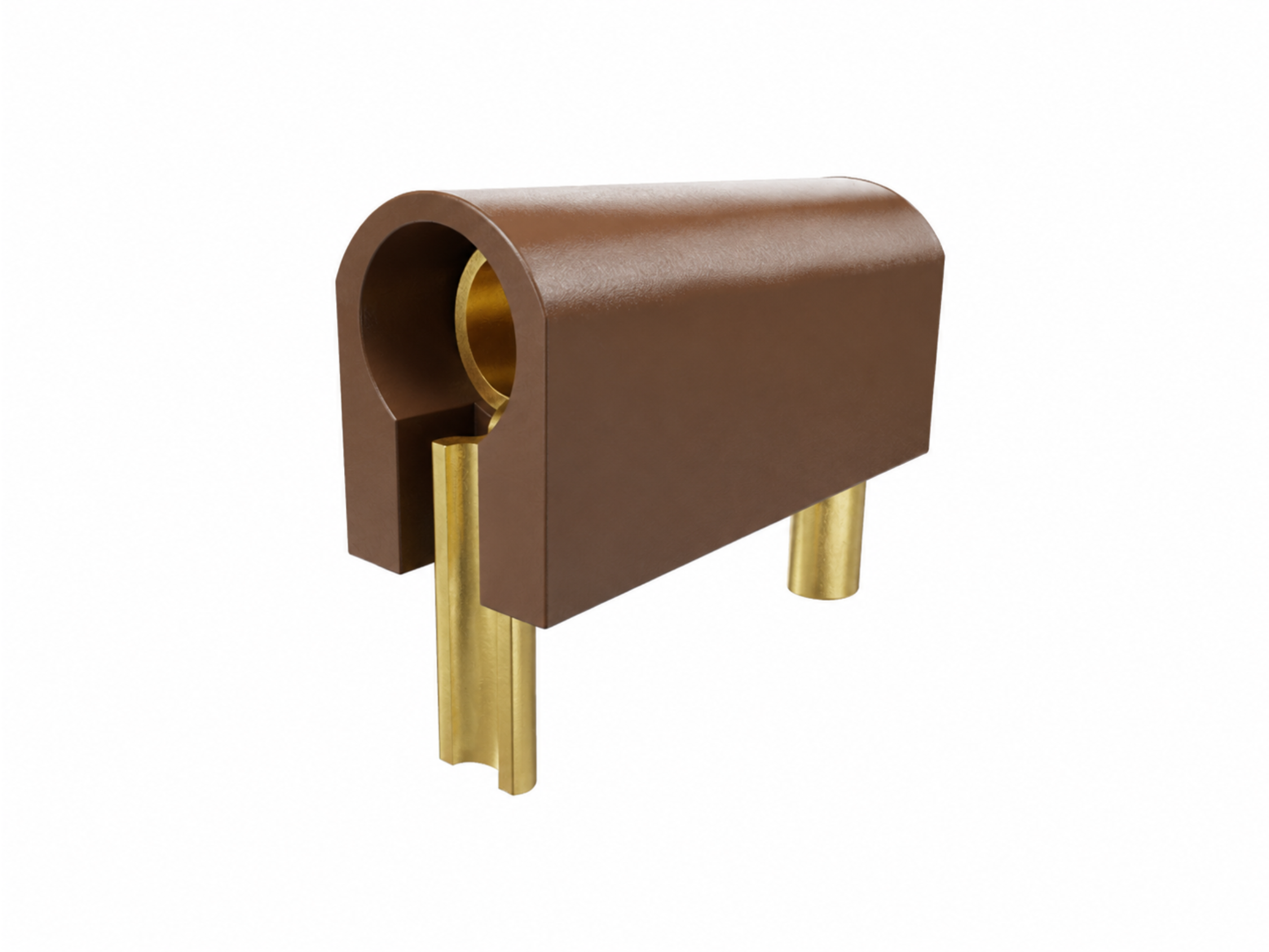

Brown |
 |
 |
P8020-11-31-0 |
P8020-11-32-0 |
P8020-10-31-L |
P8020-10-32-L |
Red |
 |
 |
P8020-12-31-0 |
P8020-12-32-0 |
P8020-10-31-L |
P8020-10-32-L |

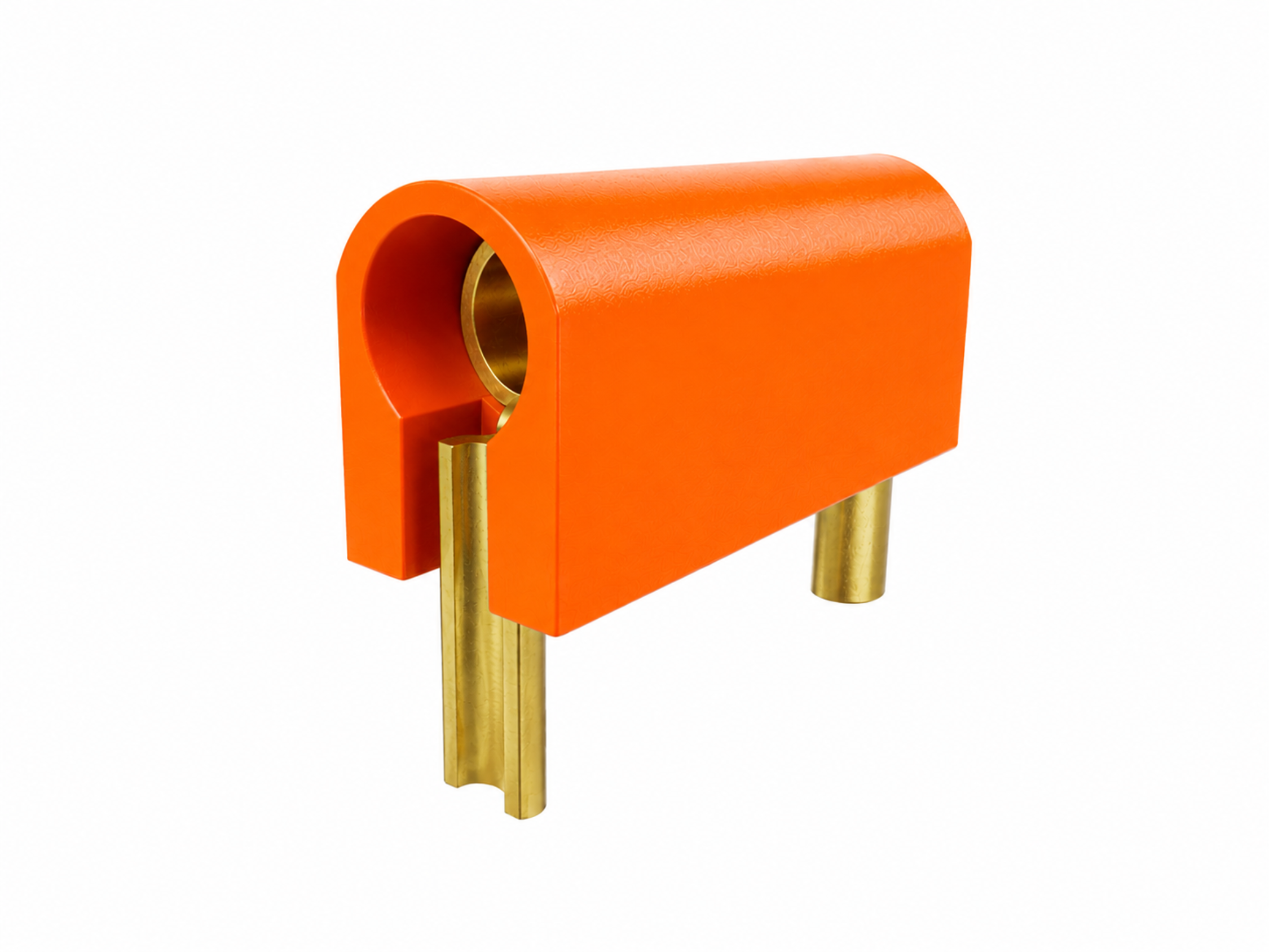

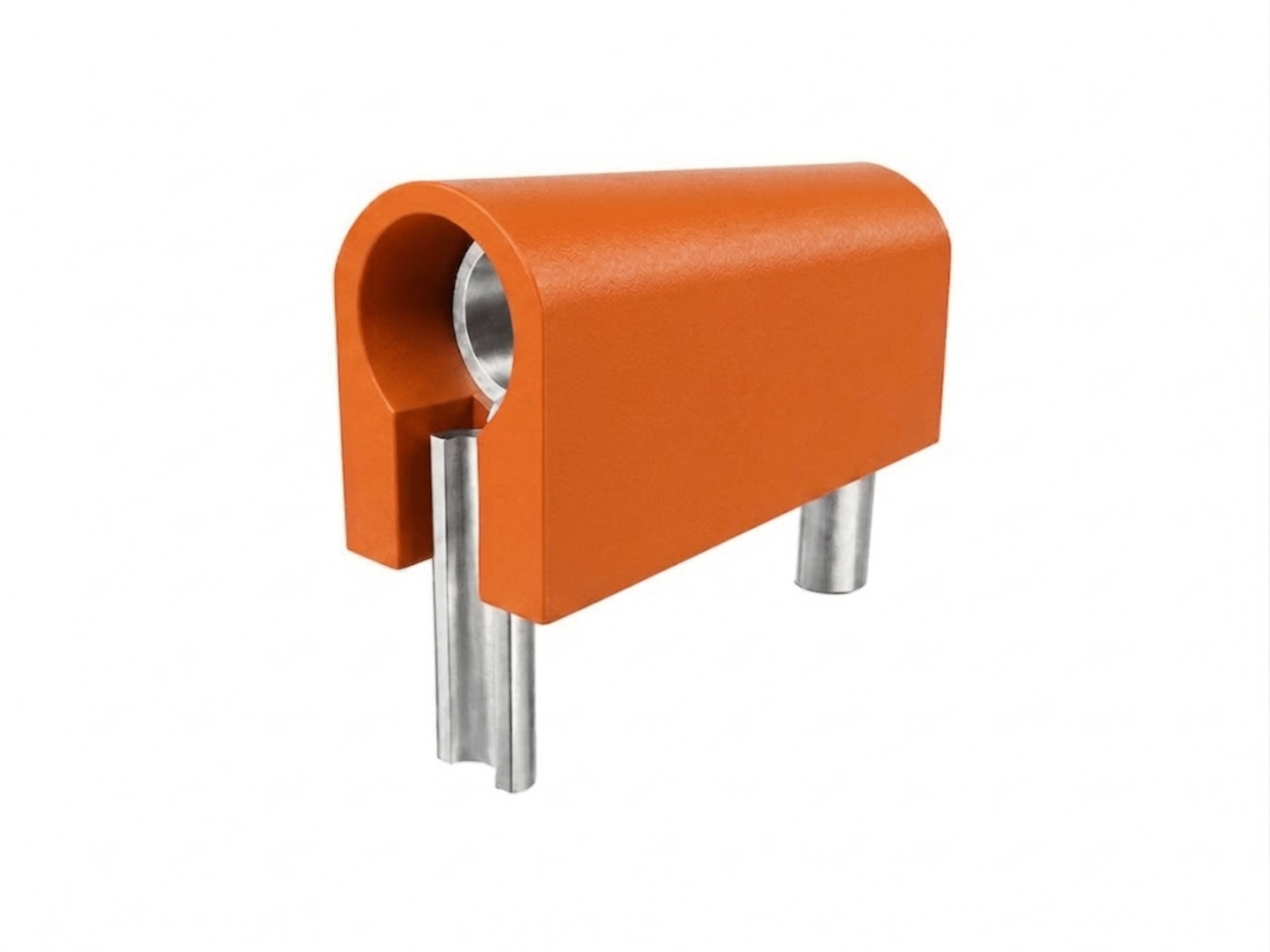

Orange |
 |
 |
P8020-13-31-0 |
P8020-13-32-0 |
P8020-10-31-L |
P8020-10-32-L |

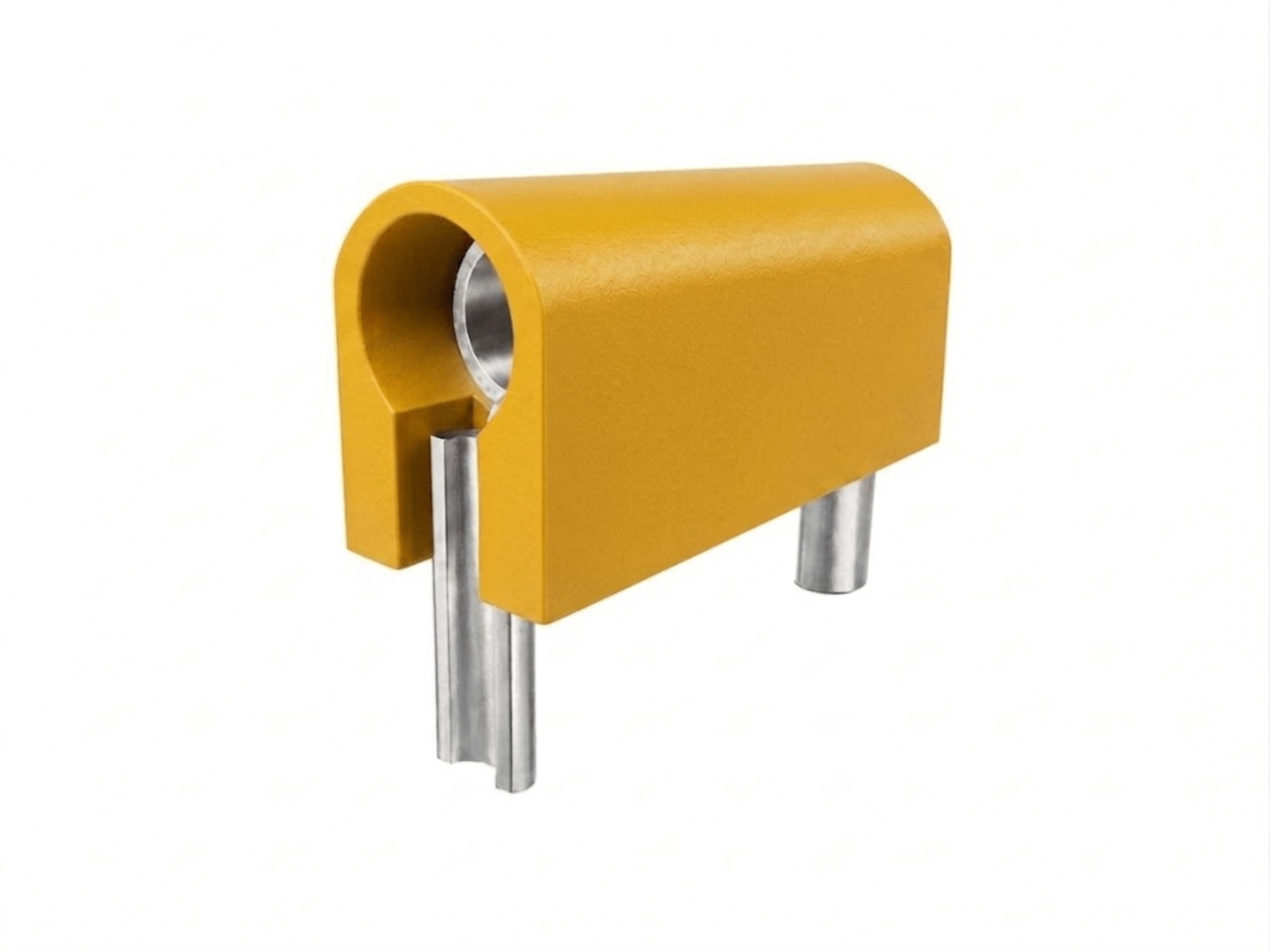

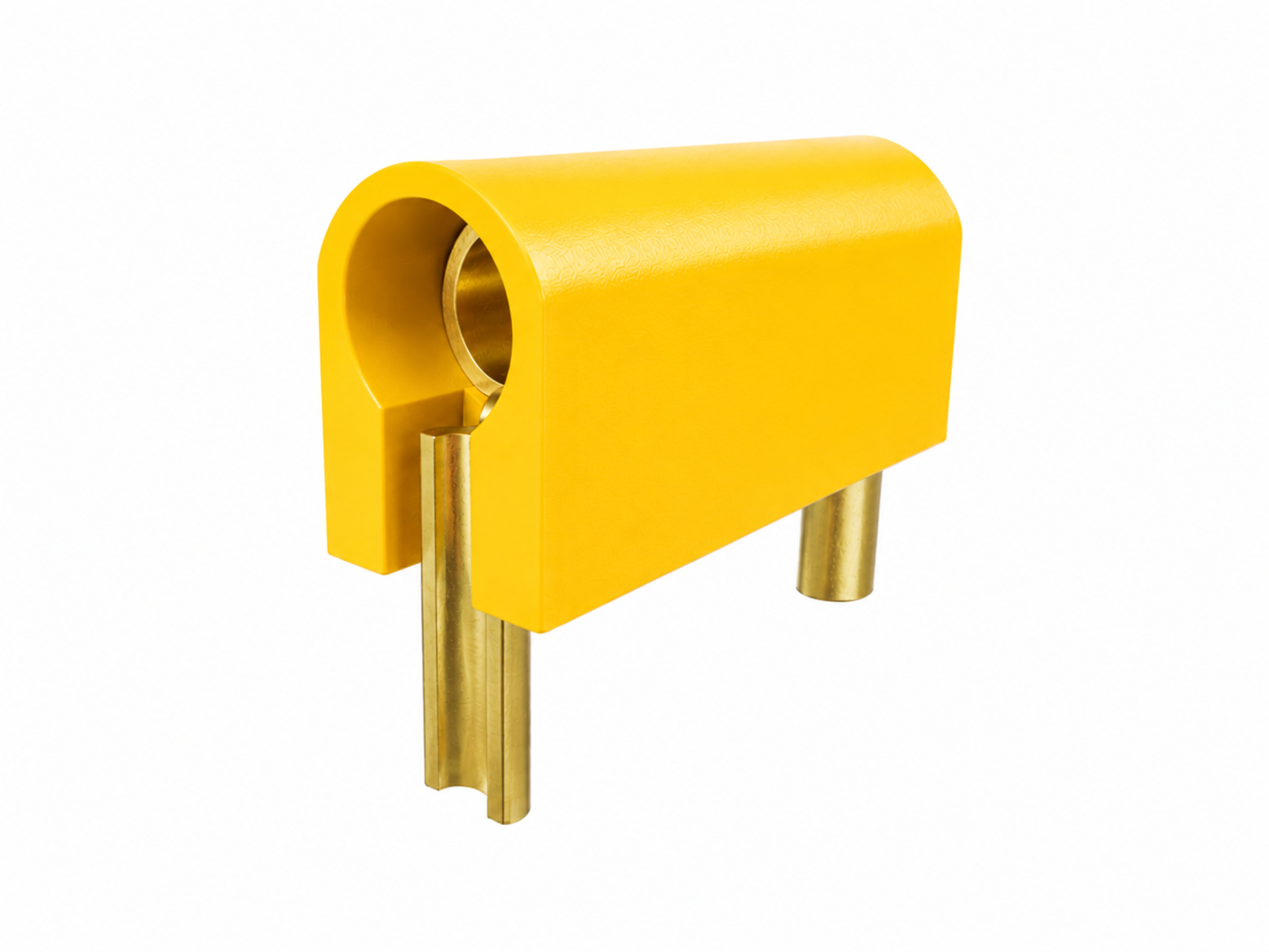

Yellow |
 |
 |
P8020-14-31-0 |
P8020-14-32-0 |
P8020-10-31-L |
P8020-10-32-L |

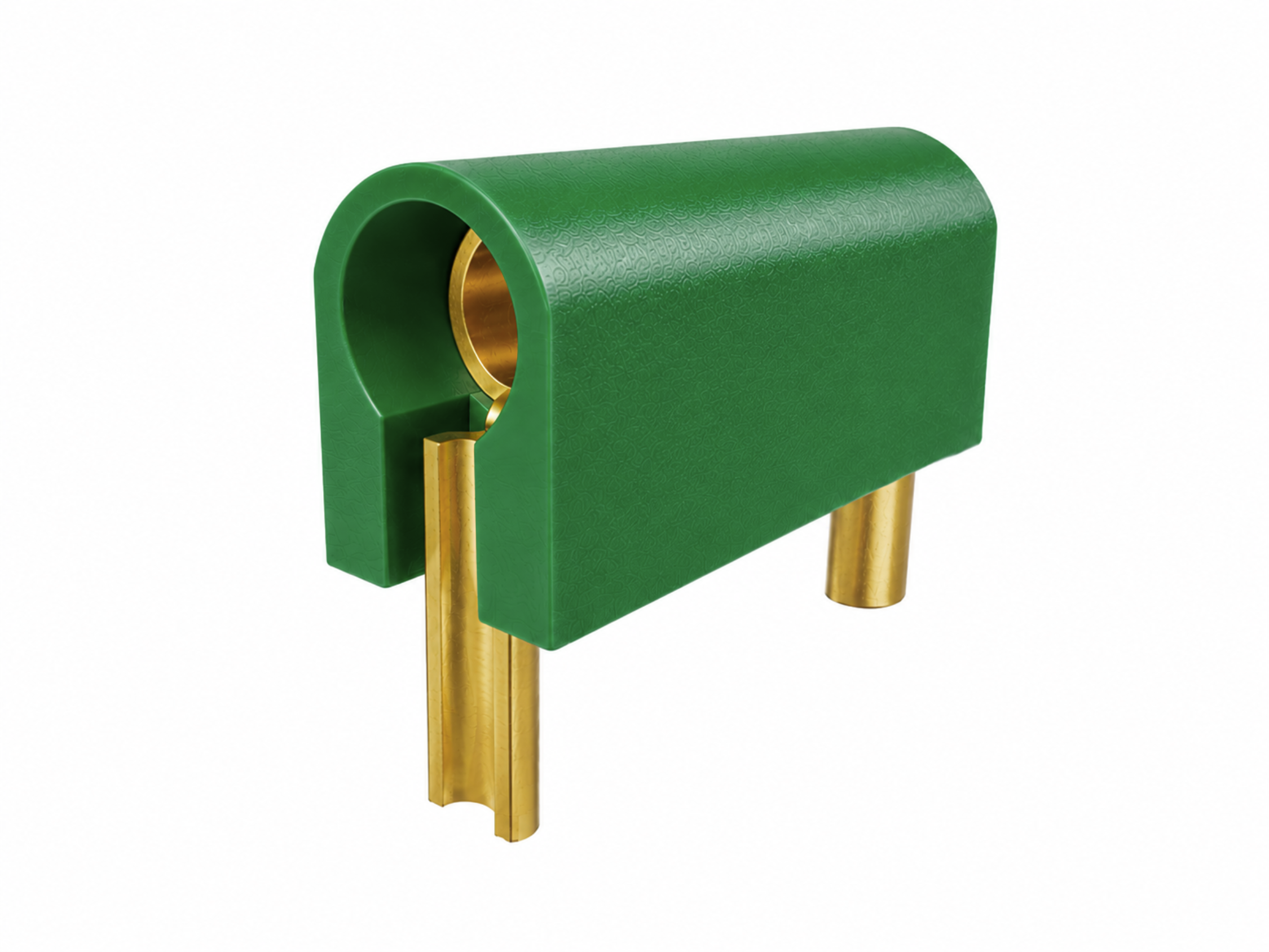

Green |
 |
 |
P8020-15-31-0 |
P8020-15-32-0 |
P8020-10-31-L |
P8020-10-32-L |
Blue |
 |
 |
P8020-16-31-0 |
P8020-16-32-0 |
P8020-10-31-L |
P8020-10-32-L |

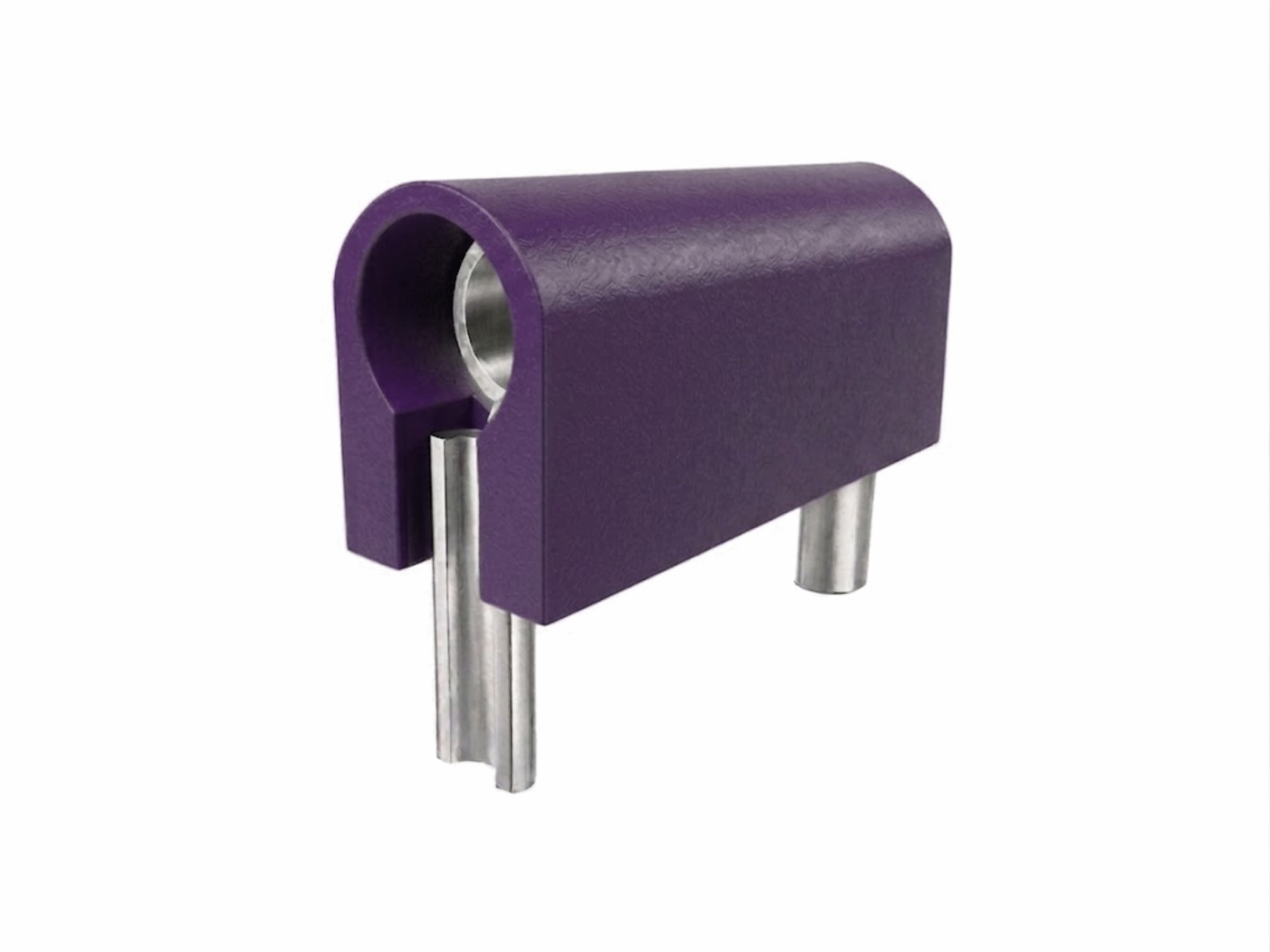

Violet |
 |
 |
P8020-17-31-0 |
P8020-17-32-0 |
P8020-10-31-L |
P8020-10-32-L |

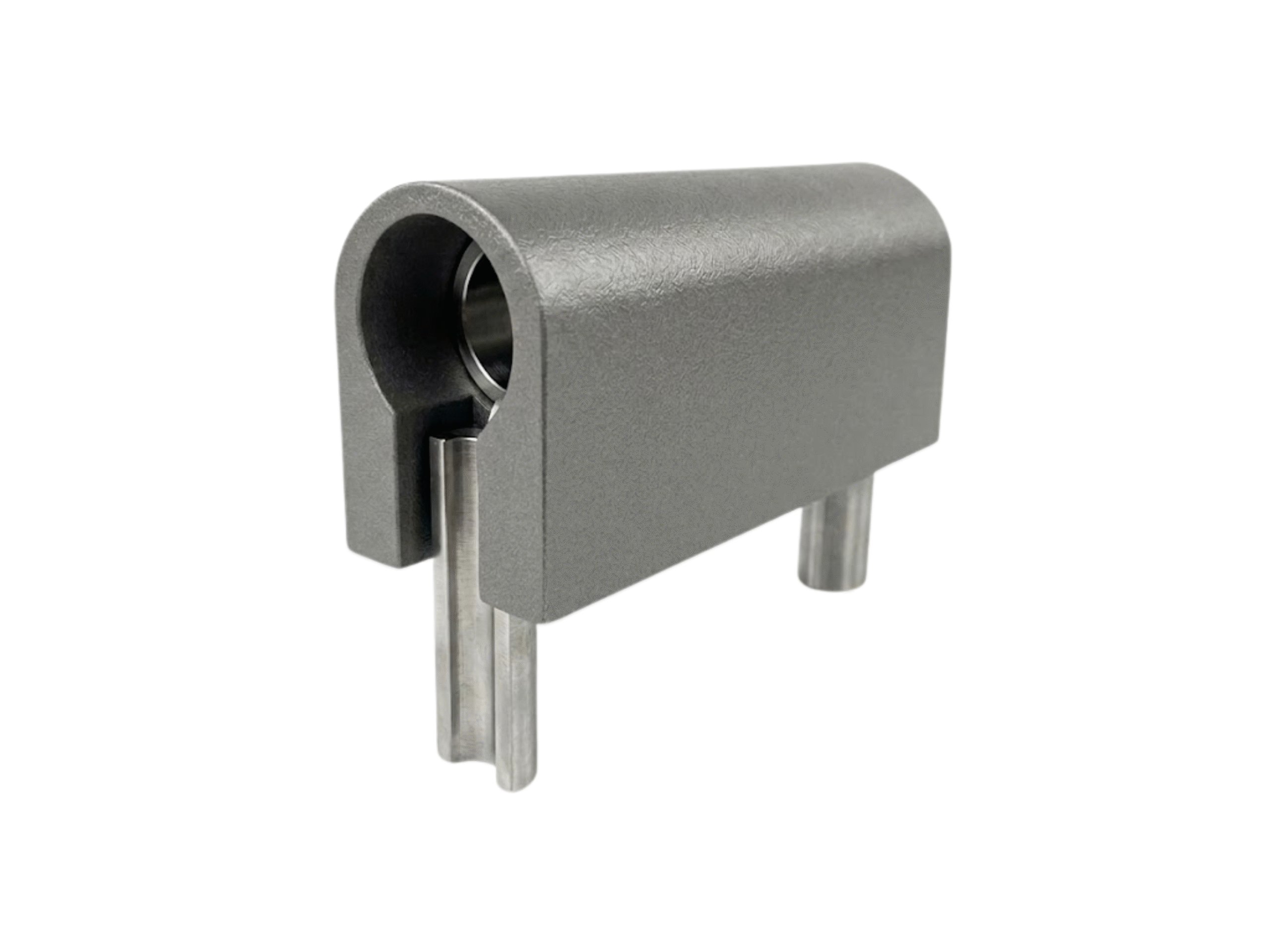

Grey |
 |
 |
P8020-18-31-0 |
P8020-18-32-0 |
P8020-10-31-L |
P8020-10-32-L |

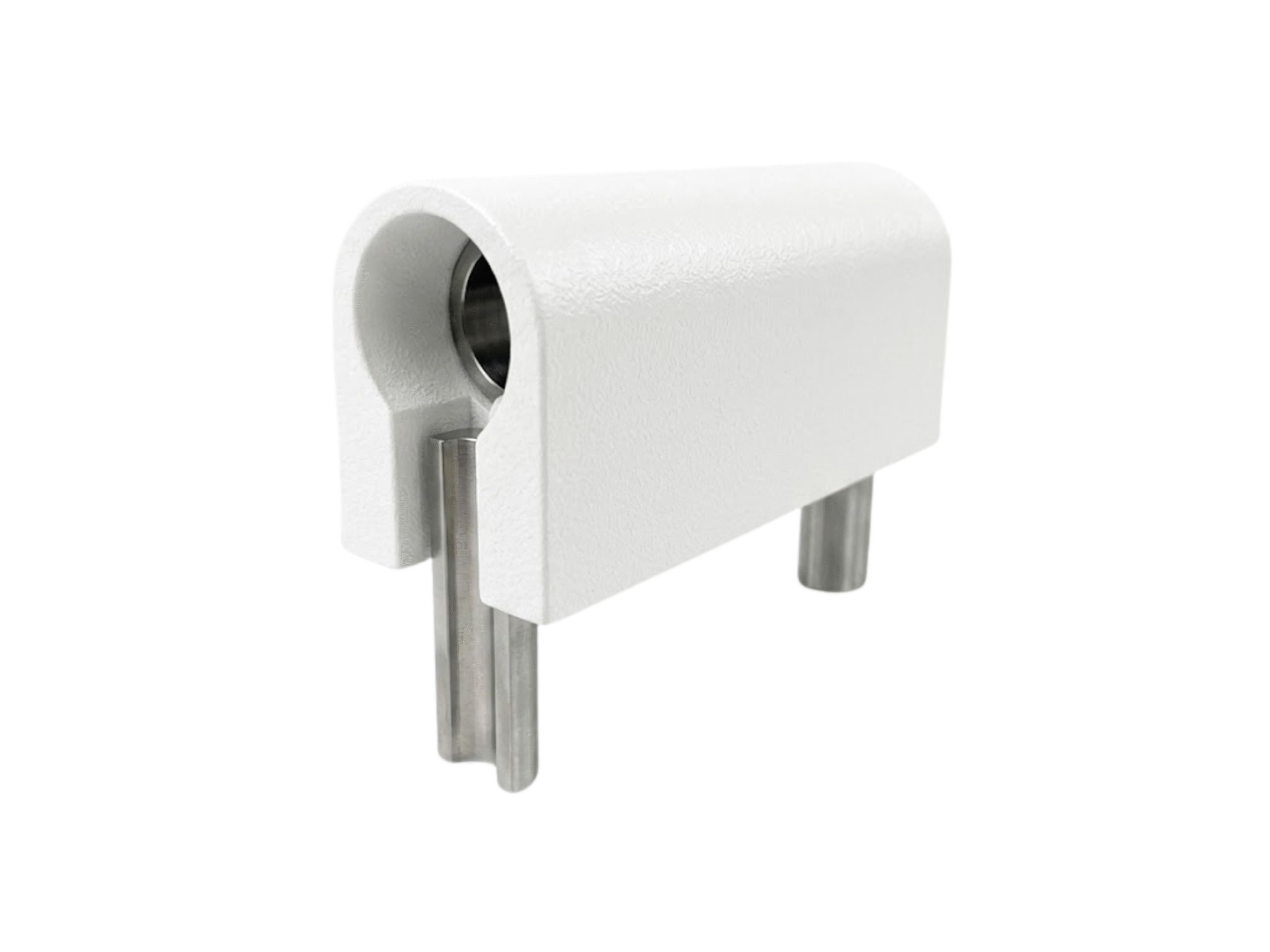

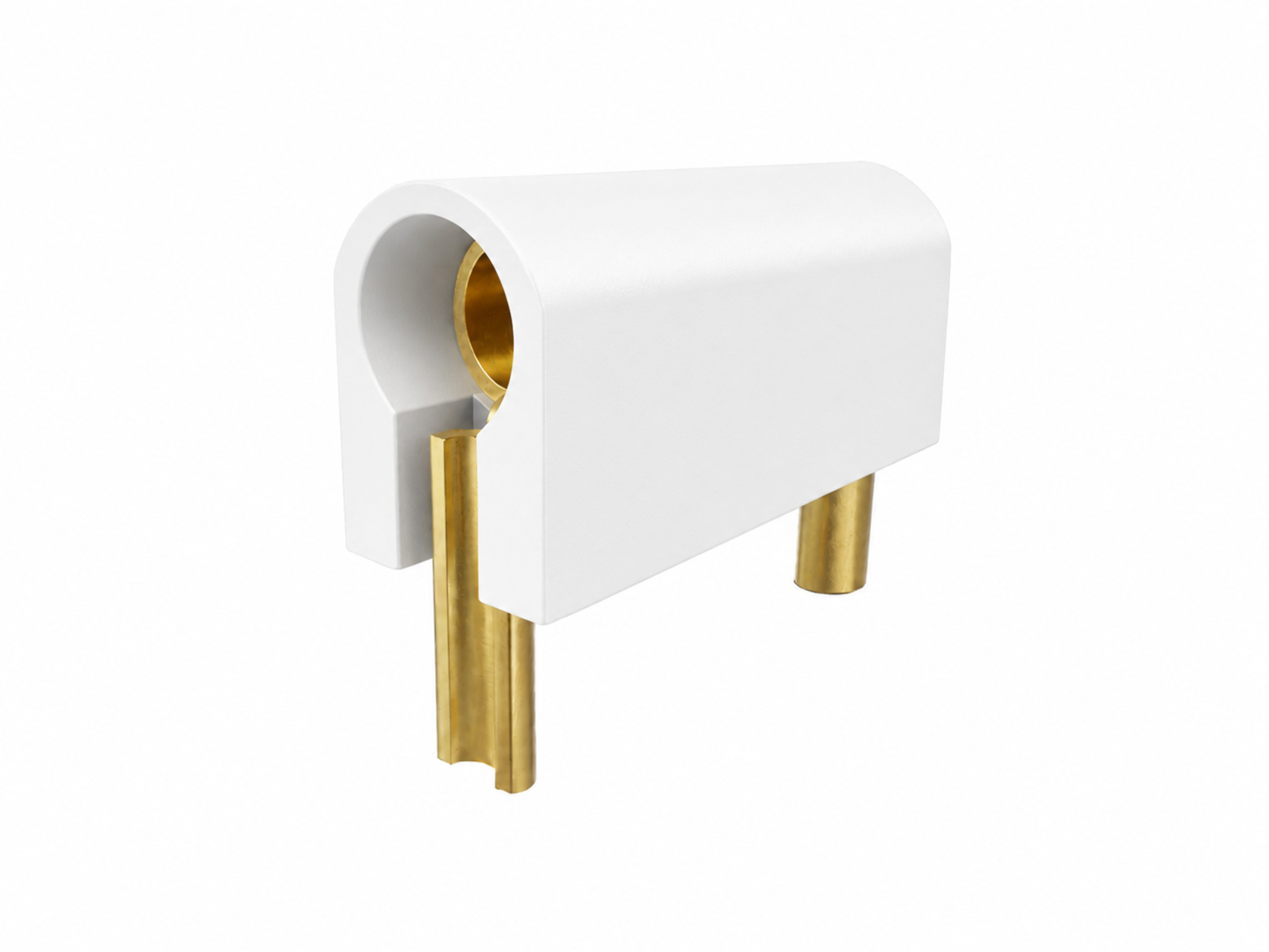

White |
 |
 |
P8020-19-31-0 |
P8020-19-32-0 |
P8020-10-31-L |
P8020-10-32-L |
