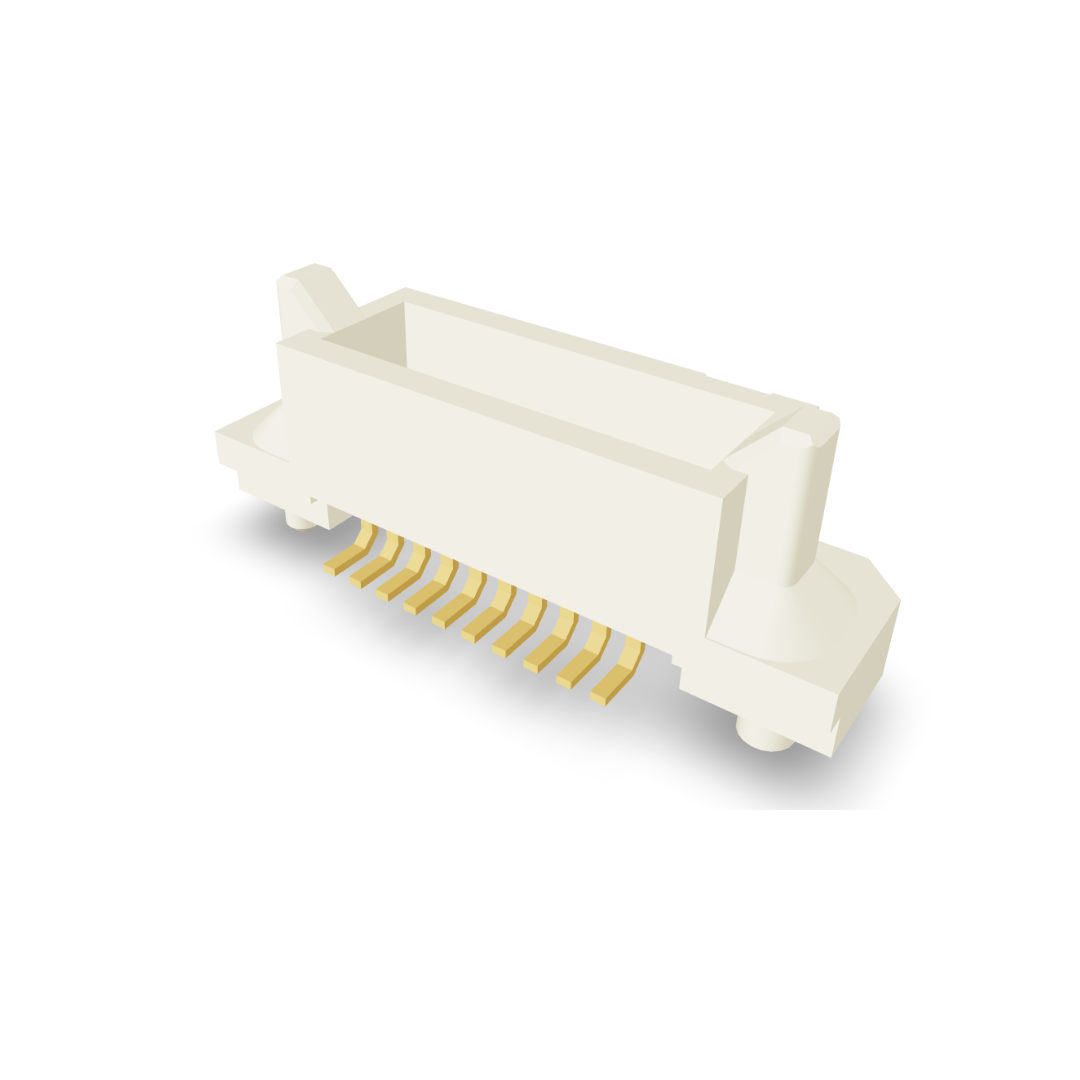

0.8mm Pitch Pin Header/Female Header Docking Type (P9155-XXX83-1)
Description
Its docking type configuration ensures stable and precise interconnections, electronic applications that require high-density connectivity.
Material and Finish
Insulation
Material: |
Nylon-6T OR LCP |
Flammability: |
UL94V-0 |
Contact
Material: |
Phosphor Bronze |
Solder Tails |
Gold Plated |
Electrical Characteristics
Current Rating: |
0.5A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
500V AC/Min |
Contact Resistance: |
40m OHMS Max |
Part No
P9155-XXX831
