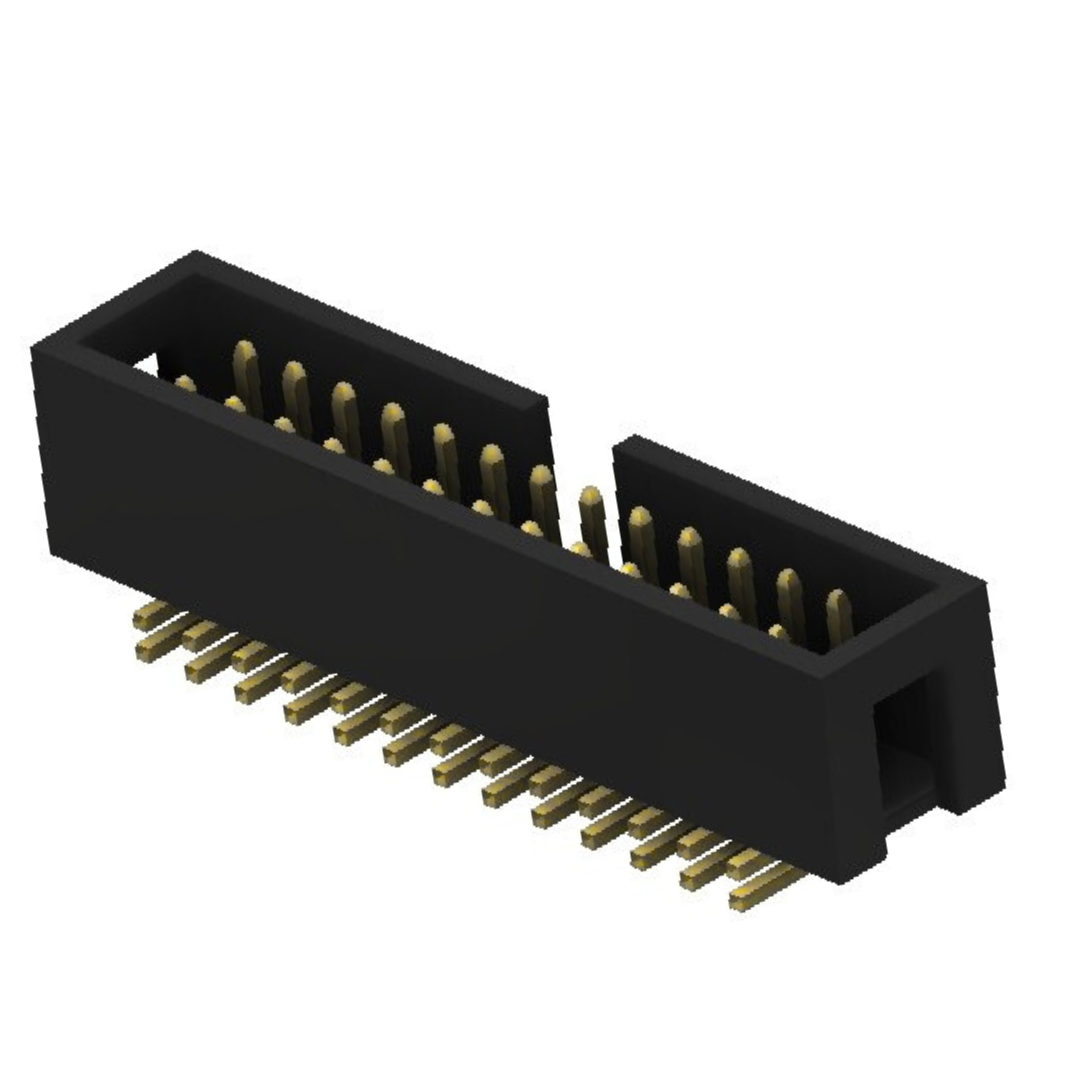

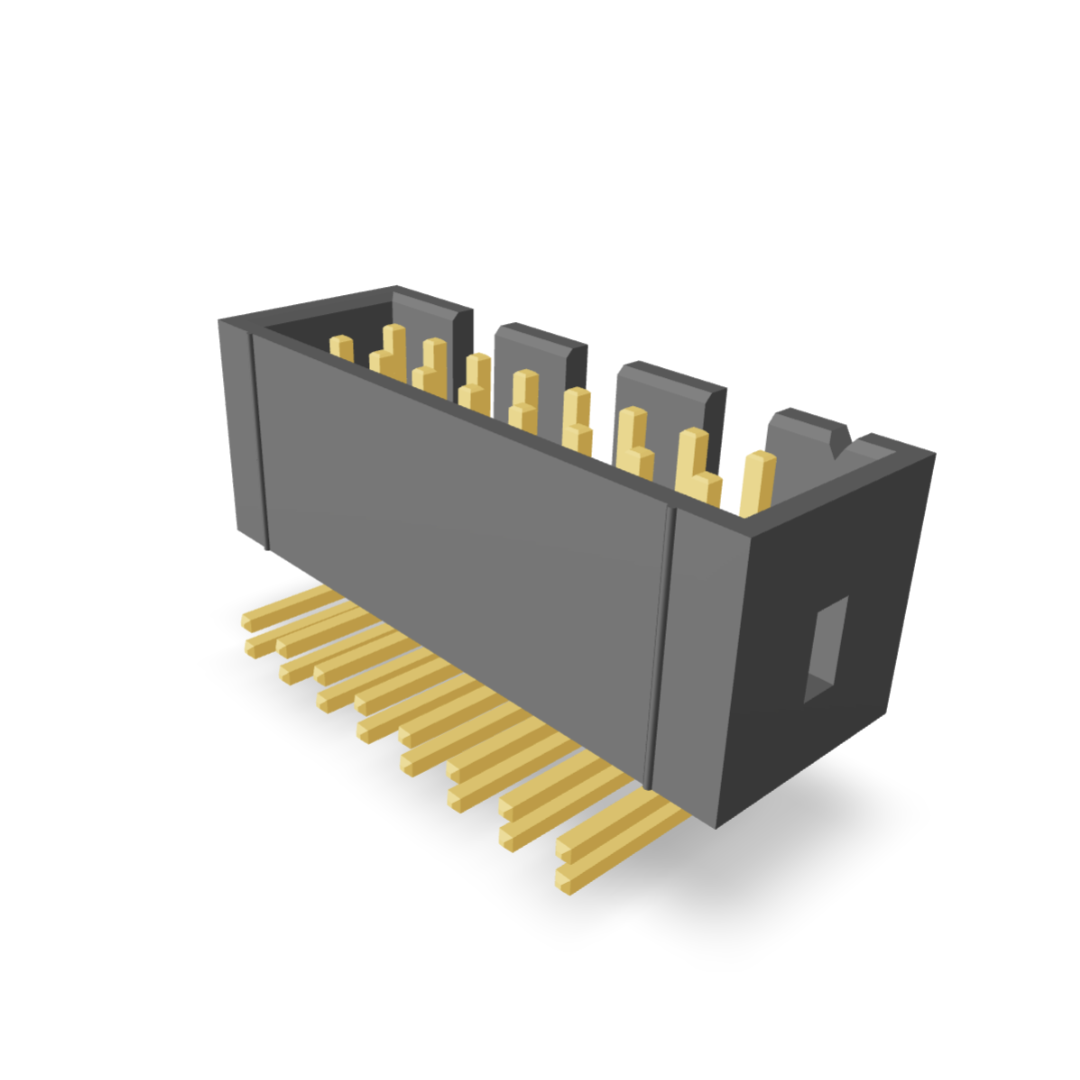

2.54mm Pitch Box Header Double Row (Right) P9604
Description
It is perfect for high-density electronic applications that require precise and durable connectivity.
Material and Finish
Material
Material: |
Thermoplastic |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
100V AC/Min |
Contact Resistance: |
20m OHMS Max |
Part No
P960X-XX-15-1
