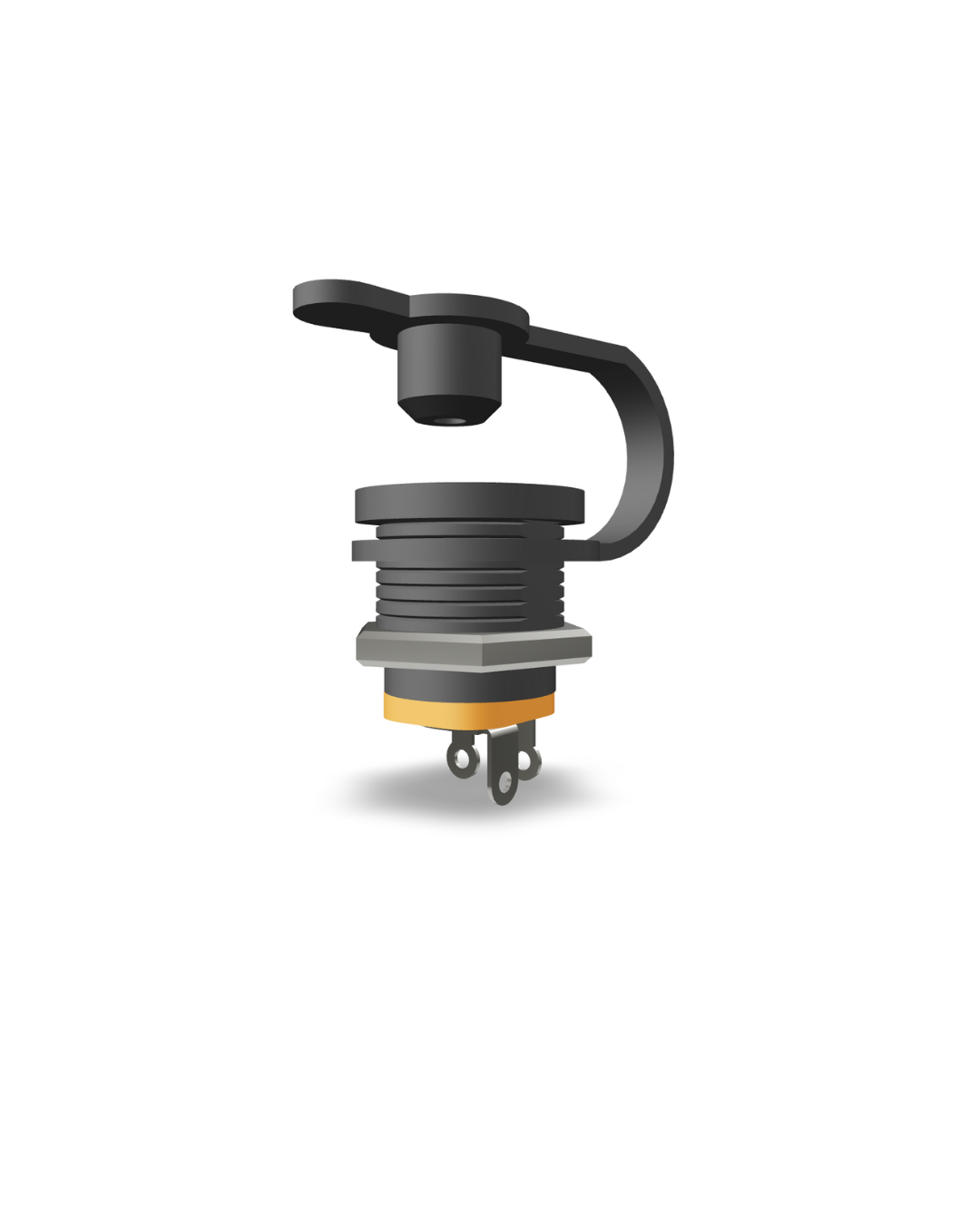

Ø2.0mm Dc Power Jack, With 3 Terminals S/T Panel Mount Water Proof(PDCJ11-02A)

Description

It is a durable Ø2.0mm DC power jack designed with 3 terminals, suitable for S/T panel mounting, and featuring waterproof capabilities.

Material and Finish

NO
Description
QTY
Material
Plating
1
Housing
1
ABS/PBT/PA66
2
Flat Piece
1
H62 Brass
Cu-Sn
3
Spring
1
65Mn Steel
Cu-Sn
4
Pin
1
H59 Brass
Ni
5
Contact
1
Brass
Cu-Sn
6
Cover
1
PF

Electrical Characteristics

Current Rating:
5A
Insulation Resistance:
100M OHMS Min
Contact Resistance:
30m OHMS Max
Withstand Voltage:
5000V AC

Mechanical Data

Insertion & Extraction Force:
3-20N
Mechanical Life:
5000 Cycles

Part No

PDCJ11-02A
