2.03mm Jack Tip, Vertical(P8025B3X-3K)
- Description
- Material & Finish
- Electrical Characteristics
- Mechanical Data
- Environmental Data
- Variants
Description
The P8025B is a vertical component with a diameter of 2.03mm, designed for press-fit applications. Its precise dimensions and robust construction ensure a secure and reliable fit.
Material & Finish
Contact |
Beryllium Copper, Gold Plated |
Insulator |
Teflon |
Electrical Characteristics
Voltage Rating |
800V |
Current Rating |
5.5A max |
Contact Resistance |
4mΩ max |
Insulation Resistance |
5000MΩ min |
Dielectric Withstanding |
1000V rms |

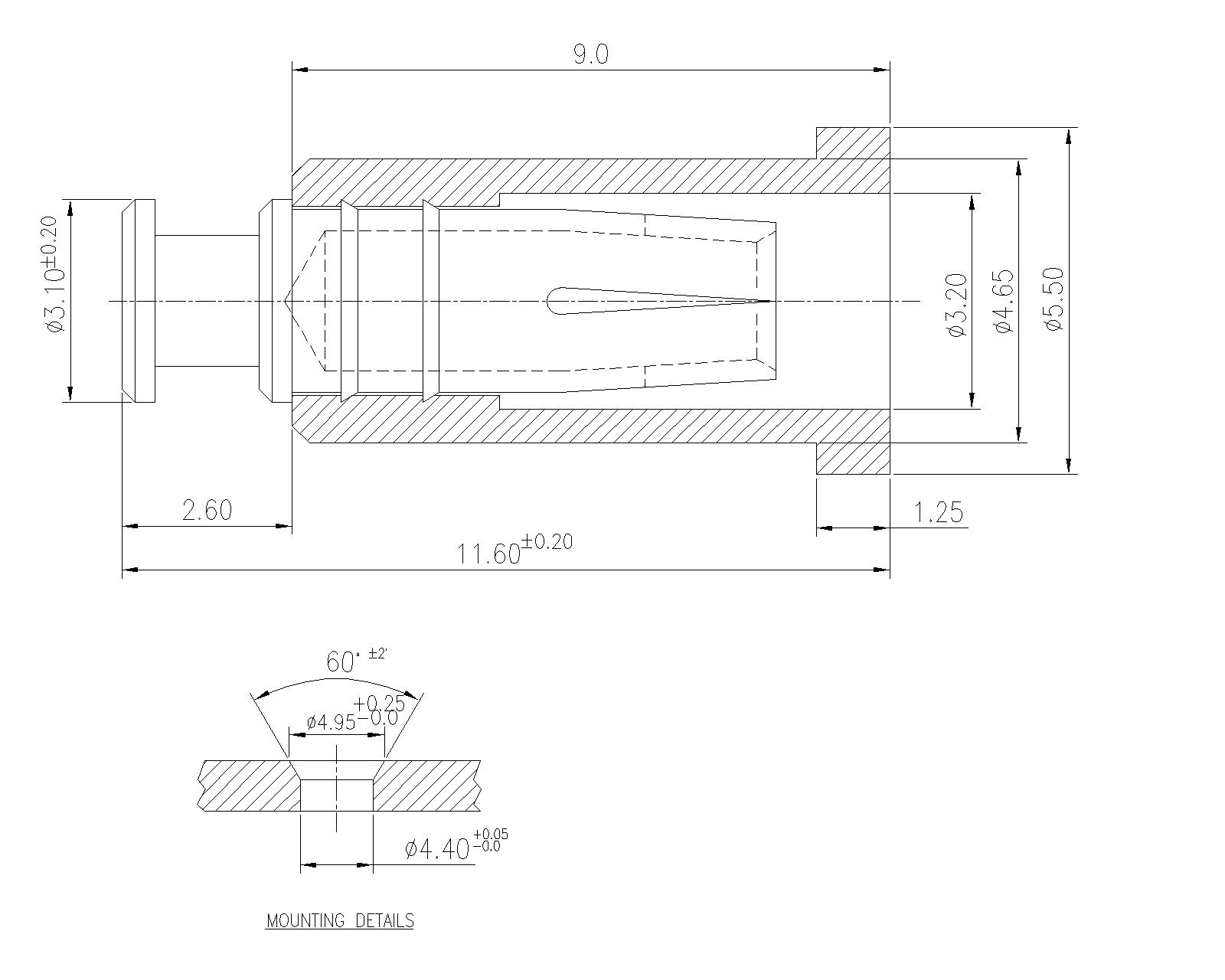

Mechanical Data
Insertion Force |
2.2kg max |
Extraction Force |
0.18kg min |
Environmental Data
Temperature Range |
-65°C to +85°C |
Variants
Colour |
Part Number |
Product Image |
Gold Plated |
||

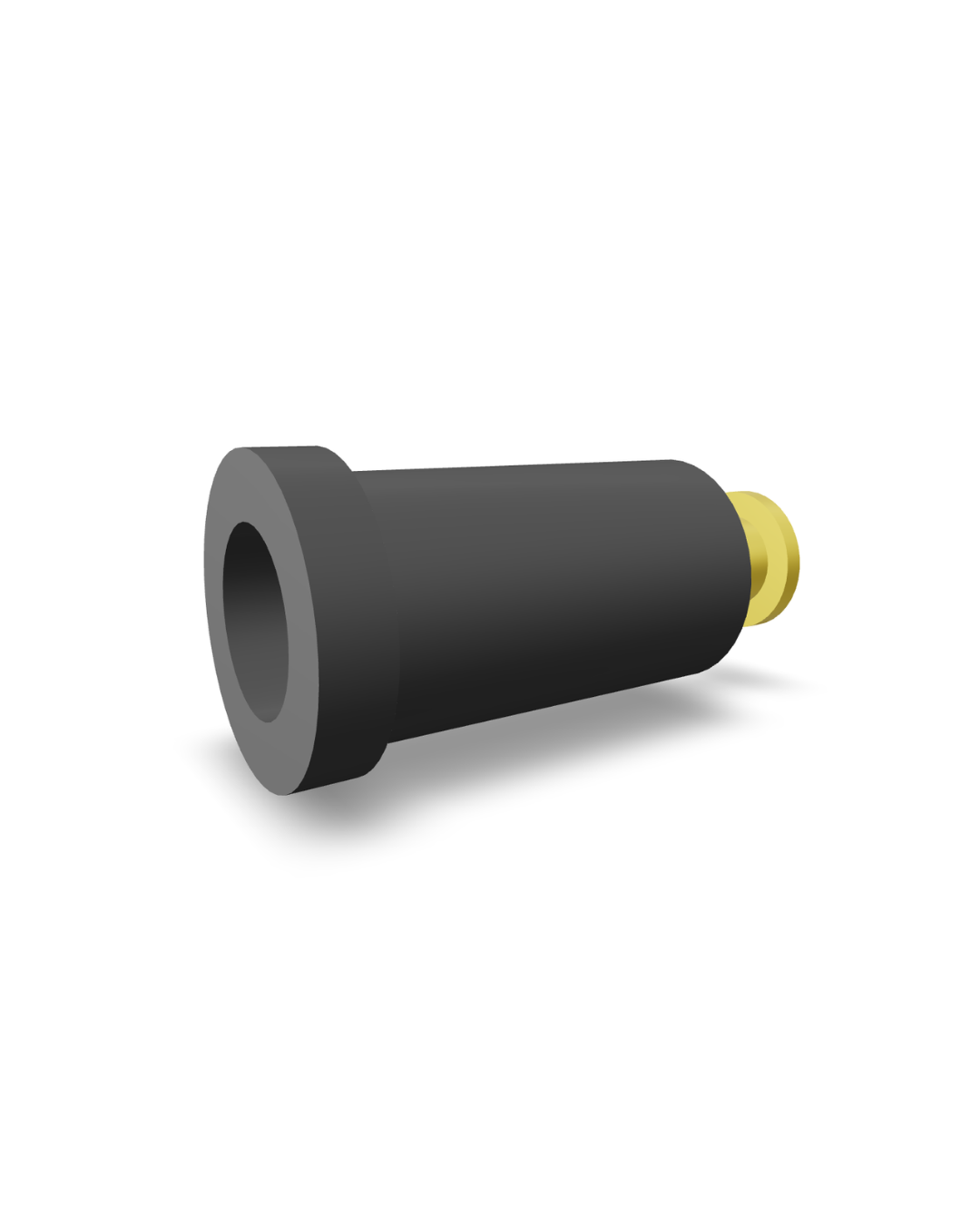

Black |
P8025B30-3K |
 |

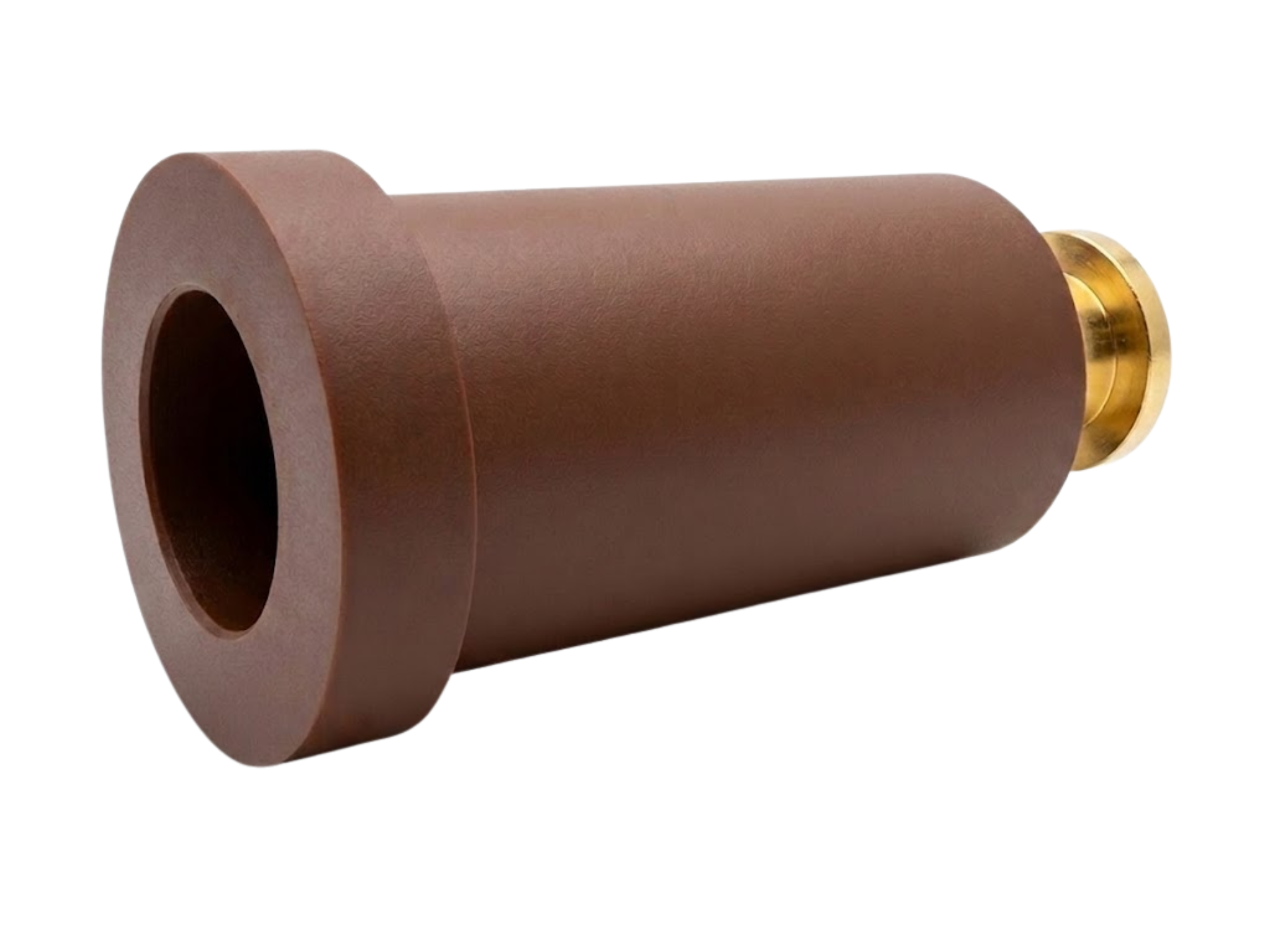

Brown |
P8025B31-3K |
 |
Red |
P8025B32-3K |
 |

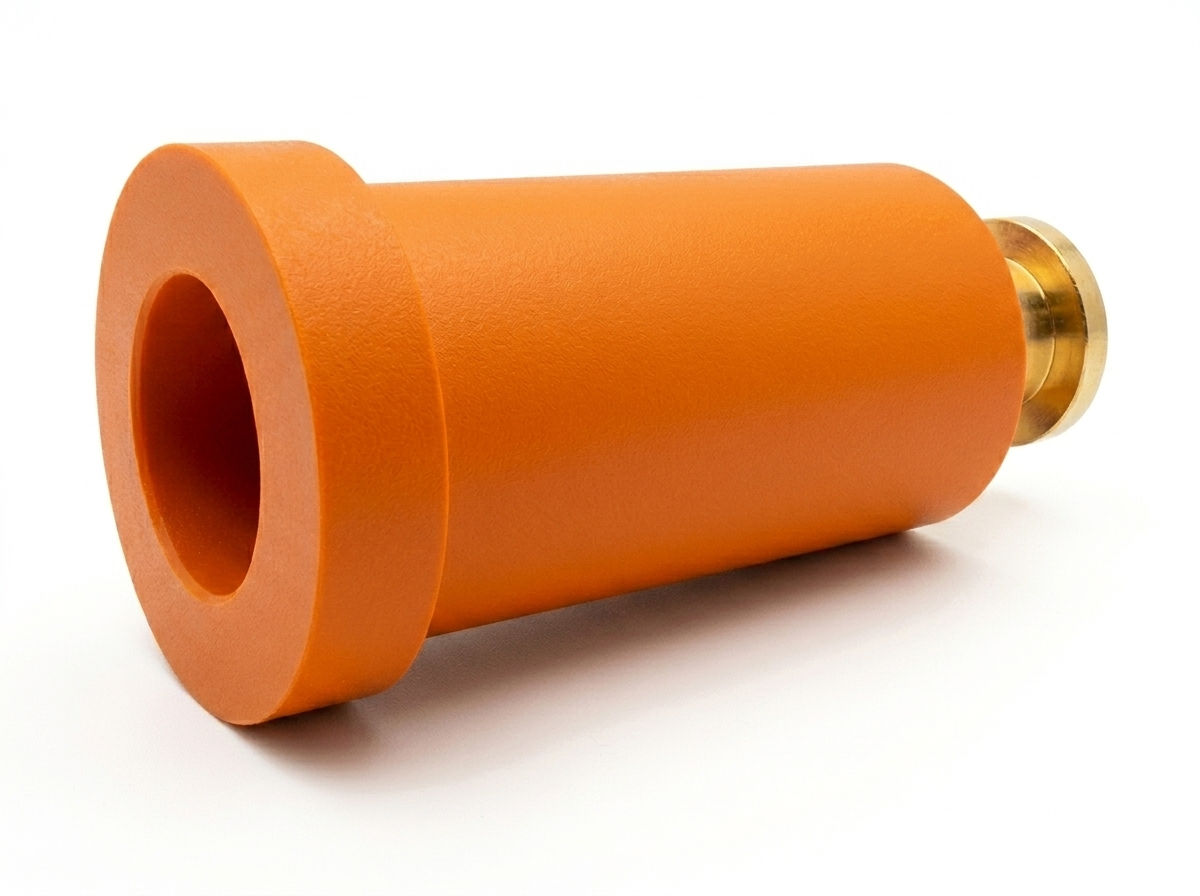

Orange |
P8025B33-3K |
 |

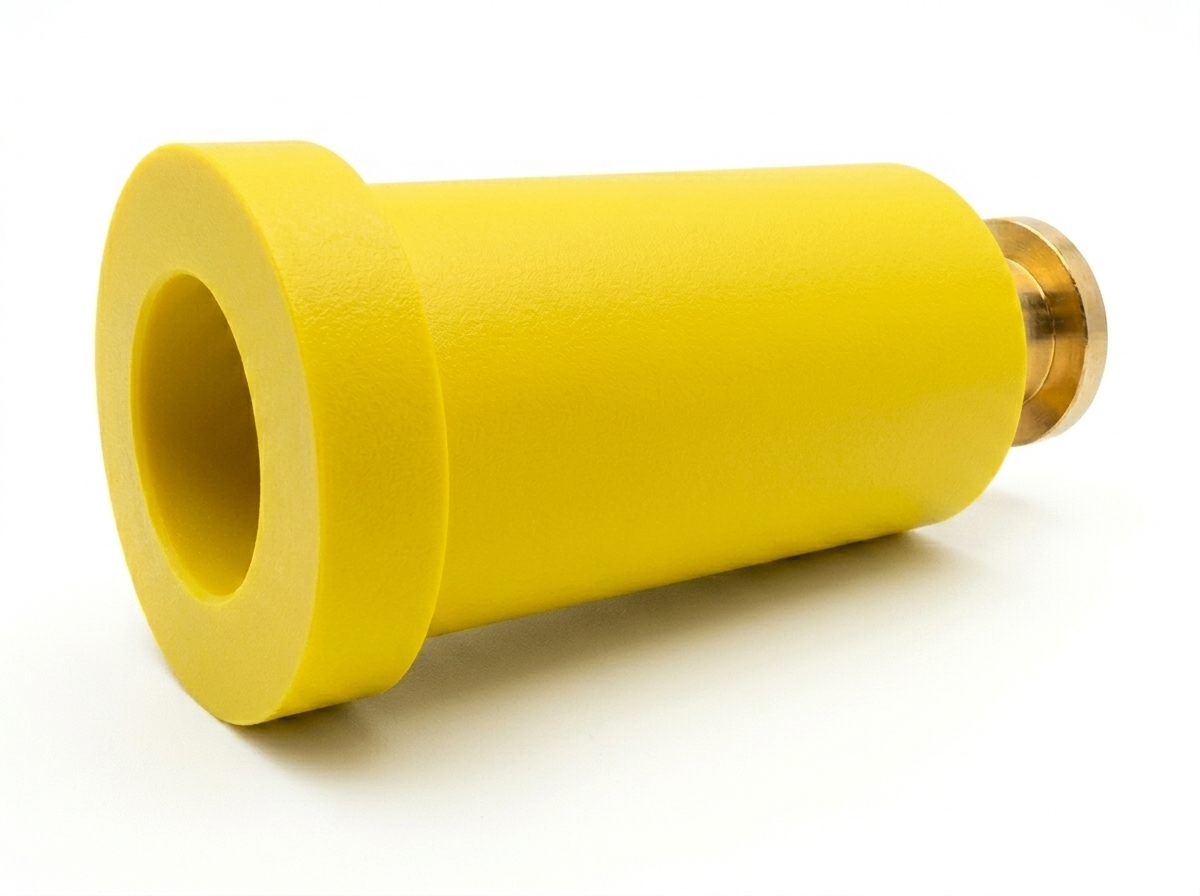

Yellow |
P8025B34-3K |
 |
Green |
P8025B35-3K |
 |

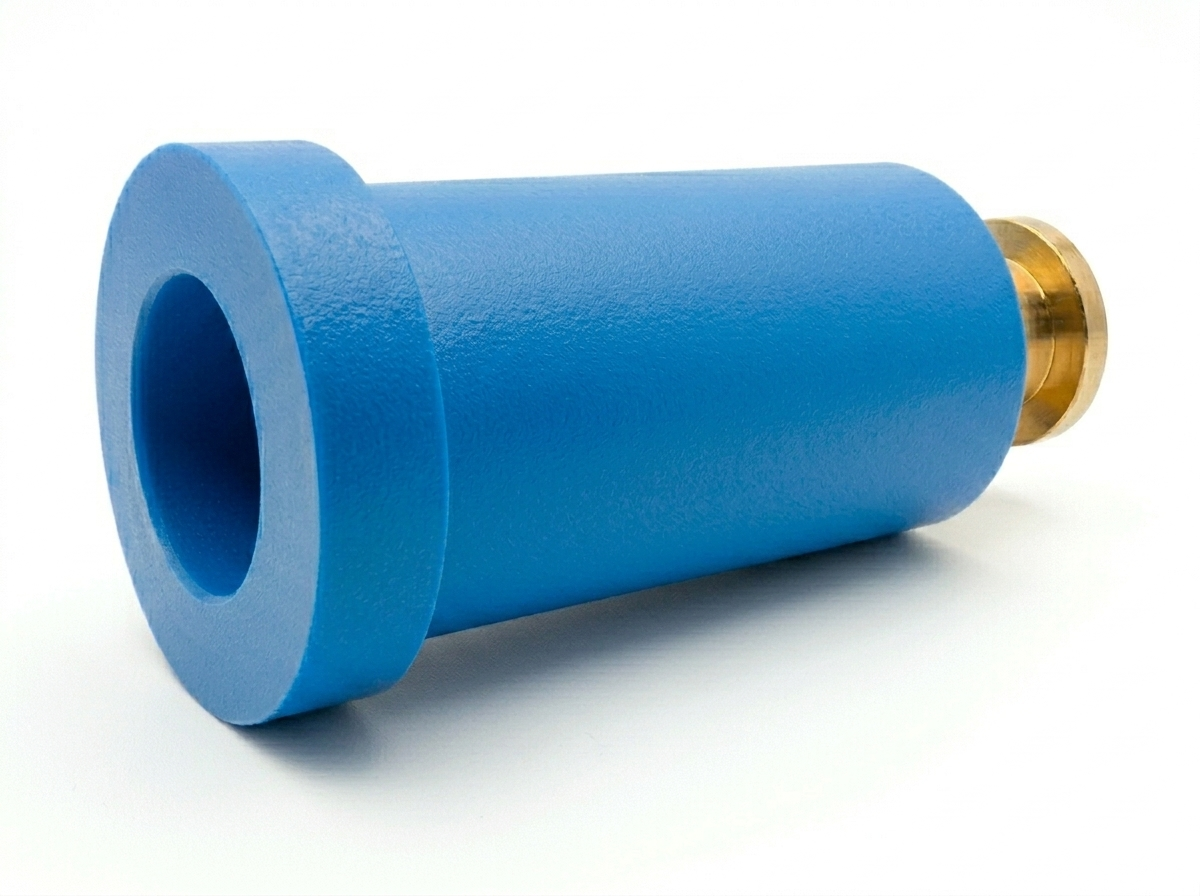

Blue |
P8025B36-3K |
 |
Violet |
P8025B37-3K |
 |

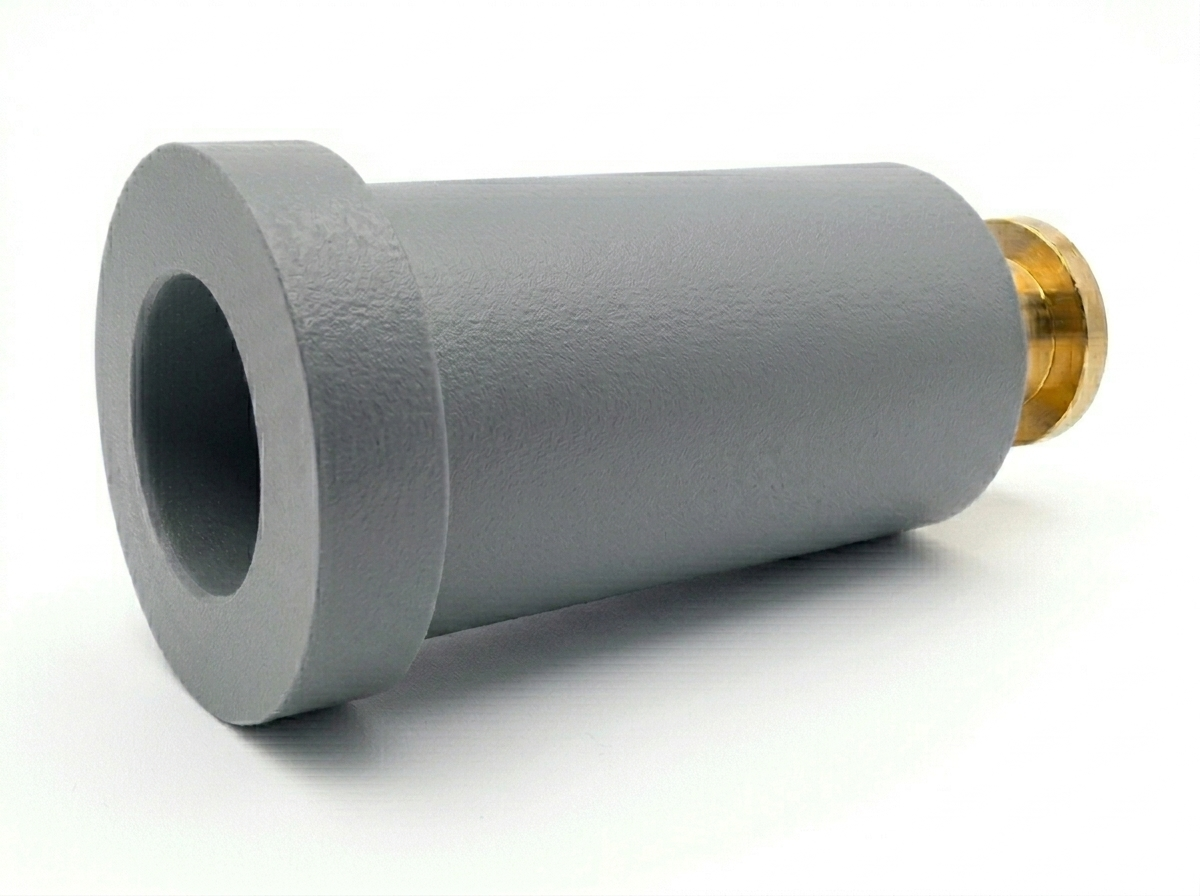

Grey |
P8025B38-3K |
 |

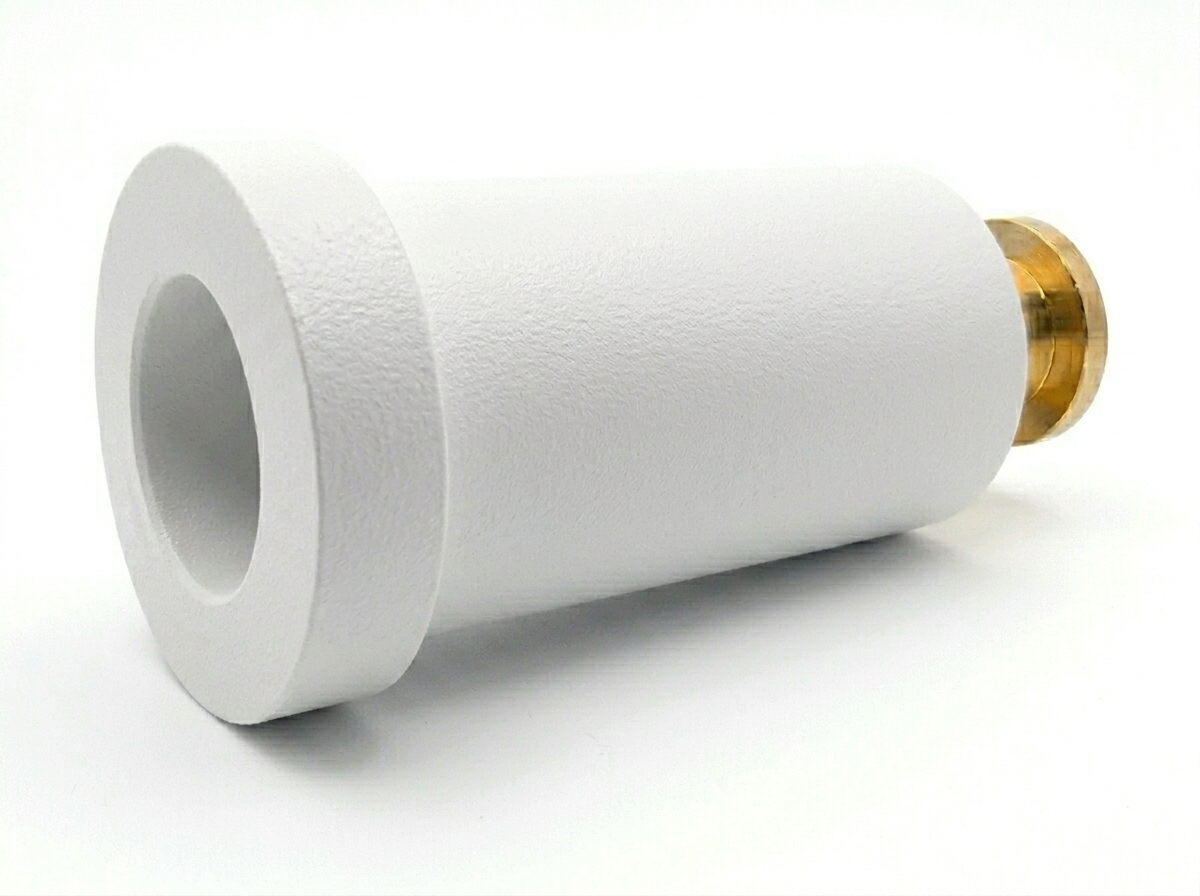

White |
P8025B39-3K |
 |
