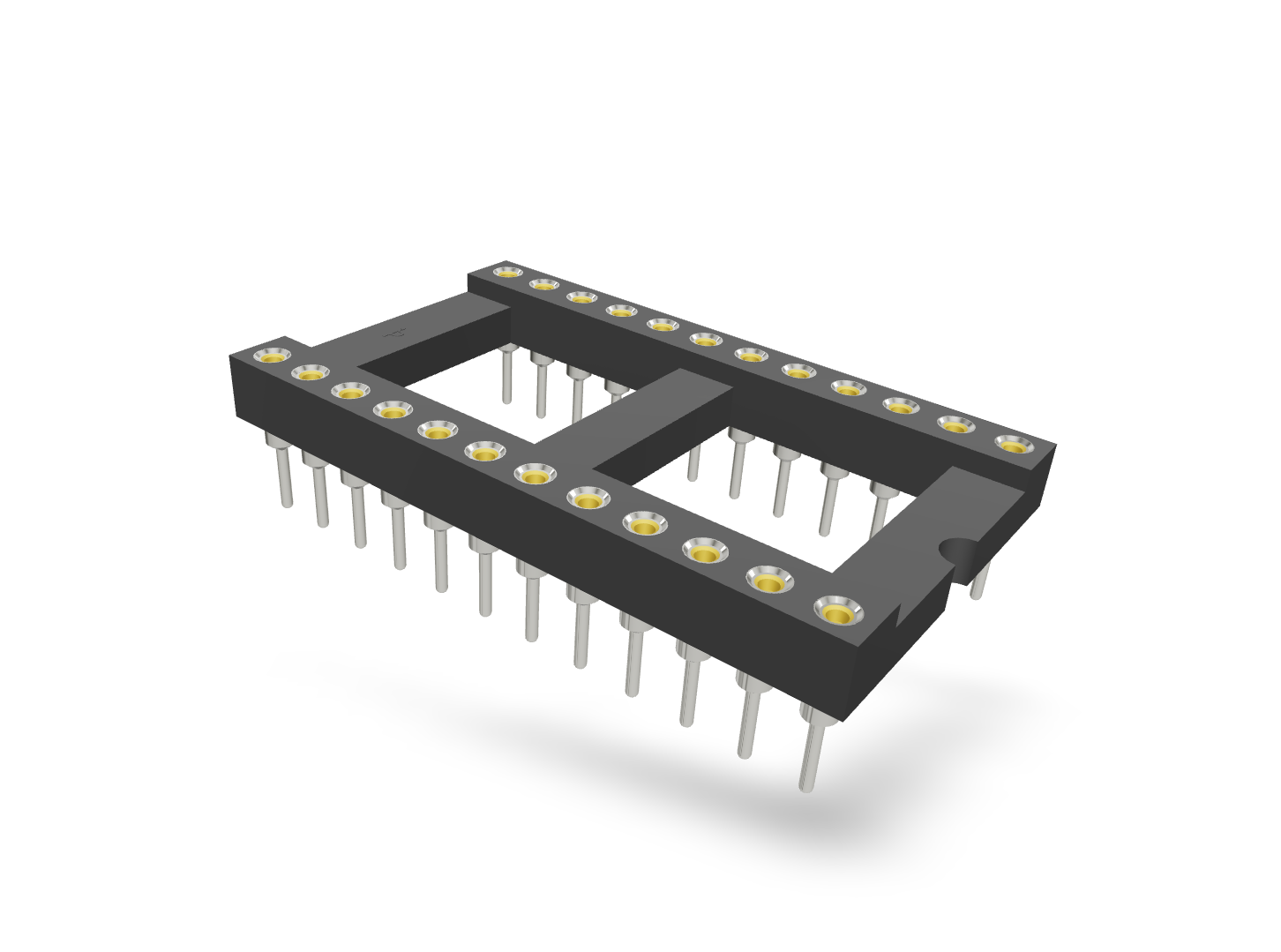

Dual In-Line Adaptors Standard Solder Tail (P805 Series)

Description

They feature two parallel rows of pins that are soldered into corresponding holes on the PCB, ensuring a secure and reliable electrical connection.

Material and Finish

Material: Glass Filled Thermoplastic Self Extinguishing
Flammability: UL94V-0
Contact: Screw Machined, Brass 0,25μ Gold Plated
Packaging Type: Tube/Tray

Electrical Characteristics

Current Rating: 1A
Insulation Resistance: 10000M OHMS @500V DC(Min)
Rated Voltage: 100V AC
Contact Resistance: 10m OHMS Max
Voltage Proof: 1000V rms Min

Part No

P805 Series
