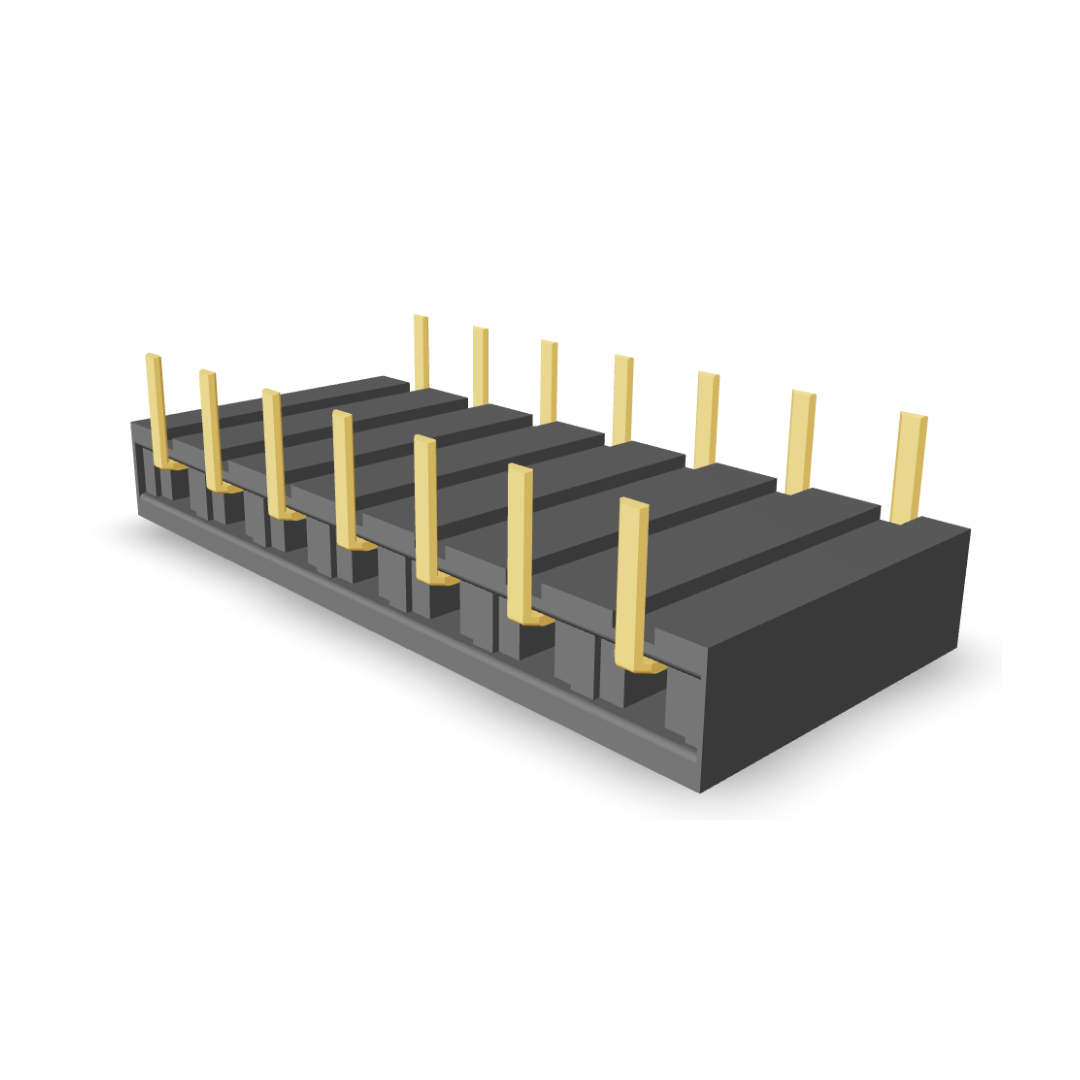

2.54×7.87mm Pitch Female Header Side Entry Single Row (P9409-XX-21)
Description
Its side-entry, single-row configuration ensures stable and reliable connectivity, making it ideal for a variety of electronic applications.
Material and Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color |
Black |
Contact
Material: |
Copper Alloy |
Finish: |
Gold Plated |
Packaging Type: |
Standard Packing |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
1000M OHMS MIN |
Dielectric Withstanding: |
1000V AC/MIN |
Contact Resistance: |
20m OHMS MAX |
Mechanical Data
Insertion Force: |
200g max |
Extraction Force: |
60g min |
Mechanical Force: |
200 Cycles min |
Part No
P9409-XX-21
