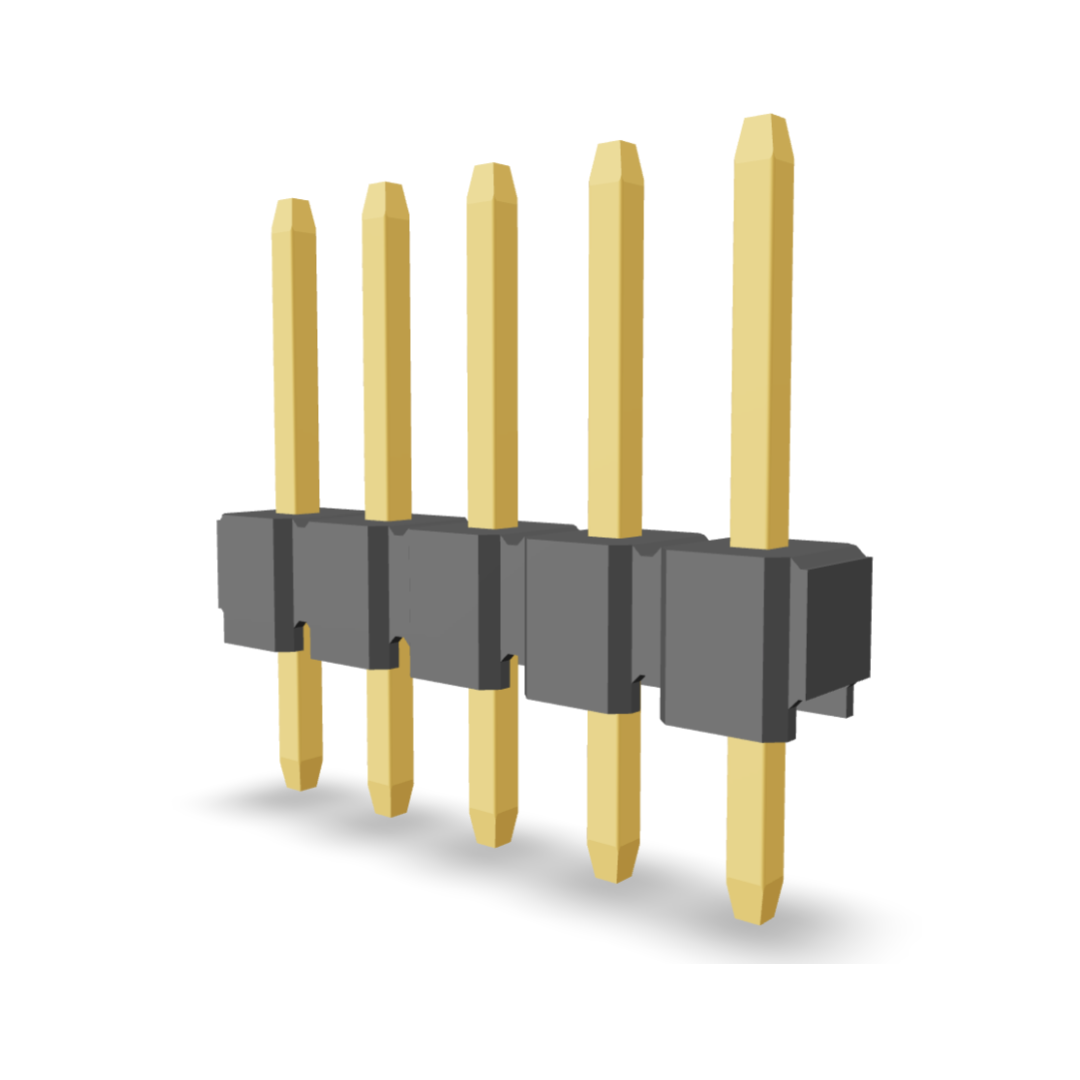

2.54mm Pitch Pin Header Single Row (Straight) (P9101-XX-XX-X)
Description
The P9101 is a single row, straight pin header with a 2.54mm pitch, designed for reliable and efficient electrical connections.
Specification
Pin Retention Force: |
1kg min |
Material and Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Refer Table |
Packaging Type: |
Standard |
Electrical Characteristics
Current Rating: |
5A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
200V AC for 1 minute |
Contact Resistance: |
30M OHMS MAX |
Part No
P9101-XX-XX-X
