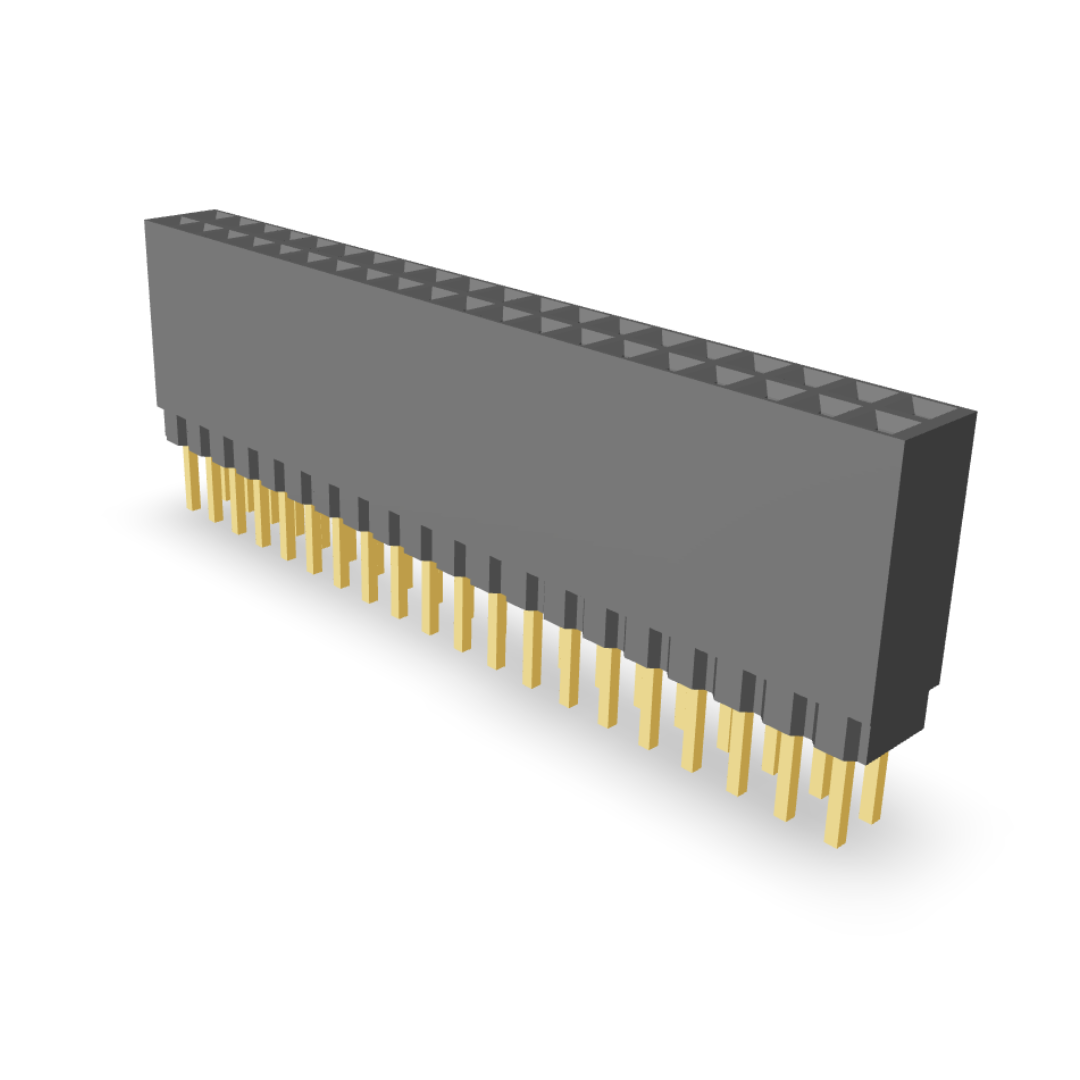

2.54mm Pitch Female Header Double Row Elevated Type P940D

Description

P940D

Specifications

Current Rating 1A
Contact Resistance 20mΩ max
Insulation Resistance 5000MΩ min
Dielectric Withstanding 500V AC
Insertion Force/Contact 200gms max
Extraction Force/Contact 20gms min
Mechanical Life 100 Cycles min
Temperature Range -40°c to +105°c

Material & Finish

Contact Copper Alloy, Gold Plated
Insulator Polyester, UL 94V-0
