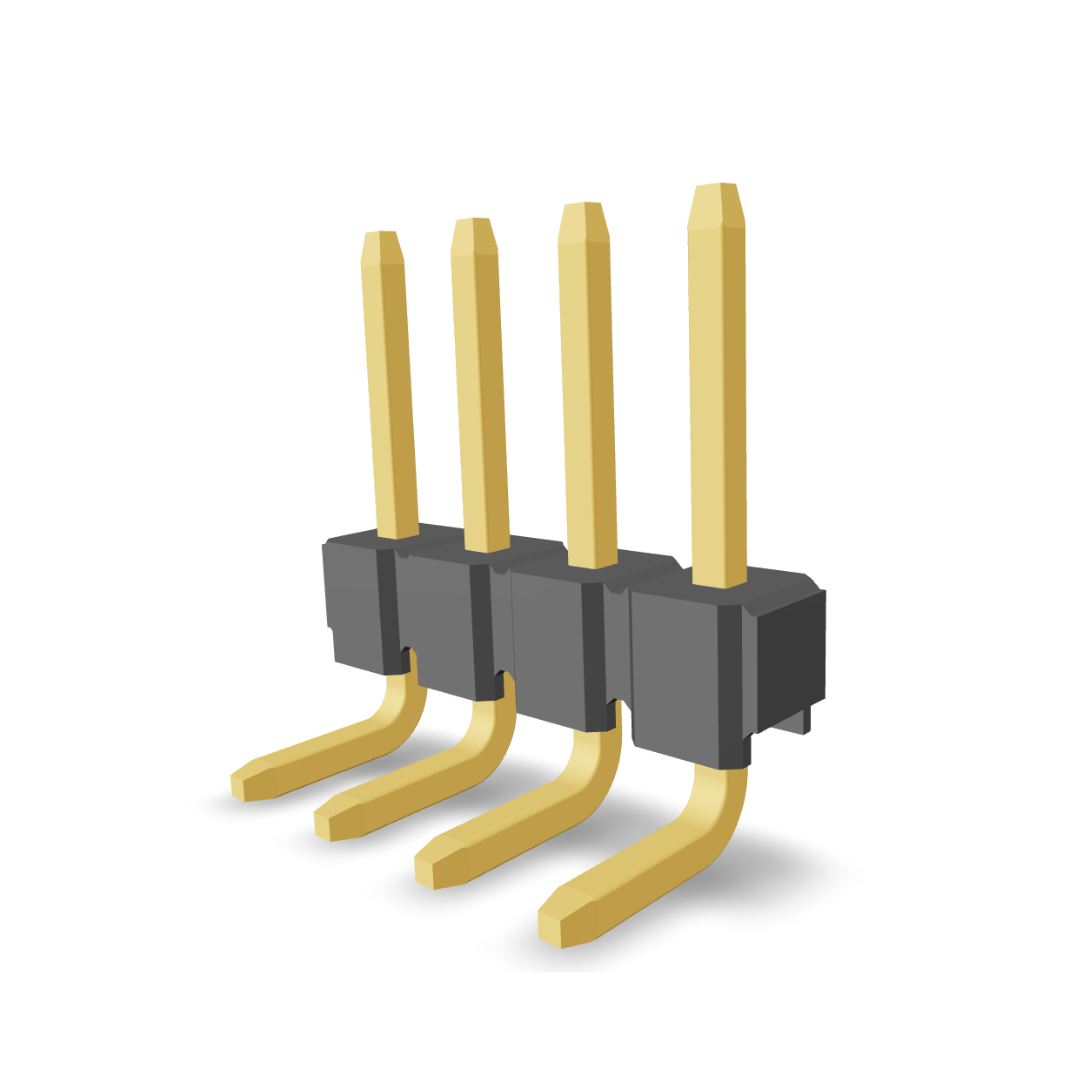

2.00mm Pitch Pin Header Single Row (Right Angle) P9112
Description
It is a compact connector designed for PCB applications requiring a right-angle orientation.
Material and Finish
Insulation
Material: |
Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
5000M OHMS Min |
Dielectric withstanding: |
500V AC |
Part No
P9112-XX-02-1
