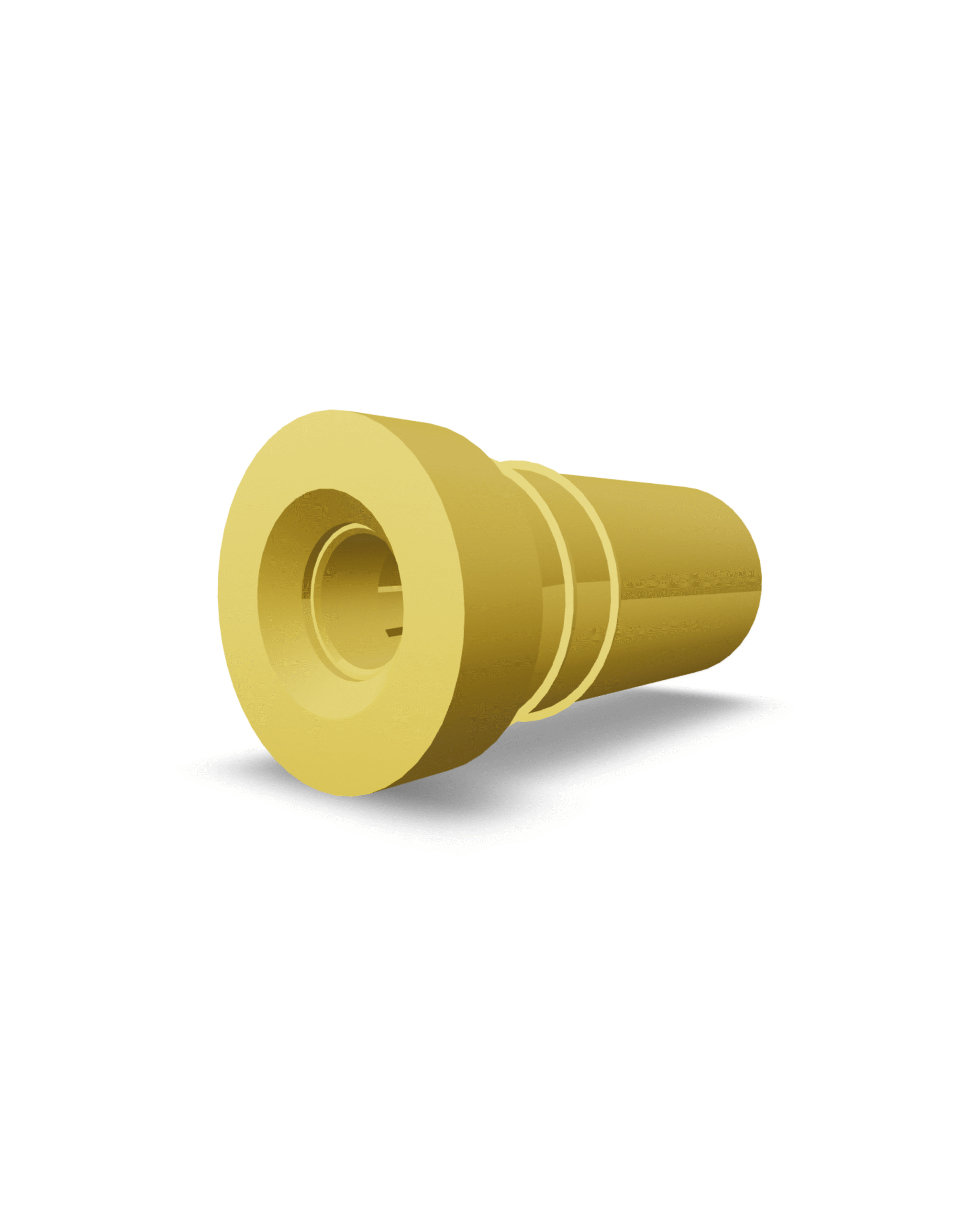

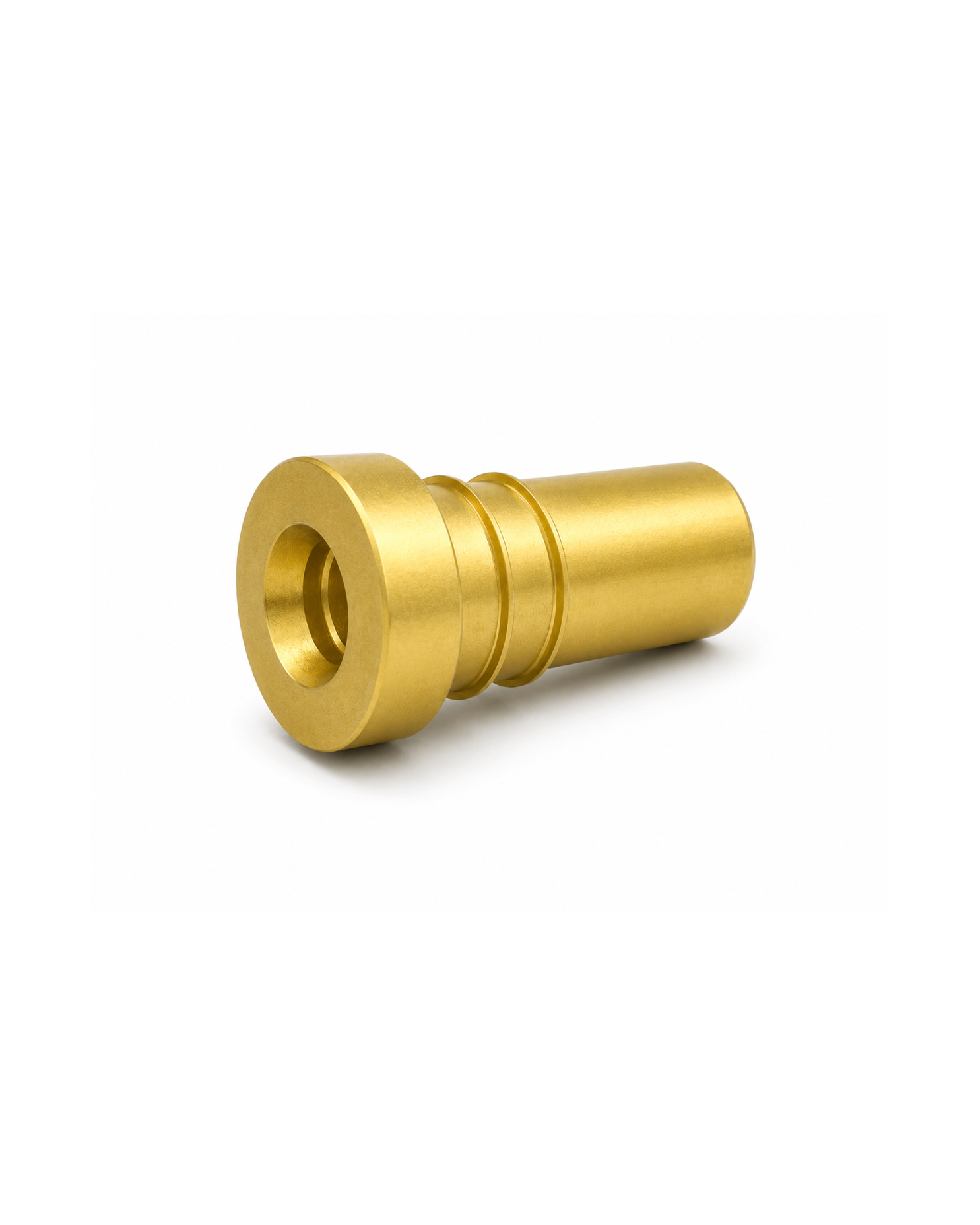

SOCKET ASSEMBLY FOR DIA 1.50mm CONNECTOR JACK(P8040A1X-32)
Description
The P8040A is a 1.5mm non-insulated connector jack designed for secure and efficient electrical connections.
Material and Finish
Outer Sleeve Body : |
Brass, Machined, Gold Plated |
Inner Contact Clip: |
Copper Alloy, Gold Plated |
Packaging Type: |
Bulk Packing |
Electrical Chacteristics
Contact Resistance: |
5m OHMS Max |
Voltage Rating: |
250V AC |
Current Rating: |
4A |
Mechanical Data
Insertion Force: |
3.5 N (350 Gms.) Nominal |
Extraction Force: |
1N (100 Gms. Nominal |
Life Cycle: |
500 Cycles |
Part No
P8040A1X-32
