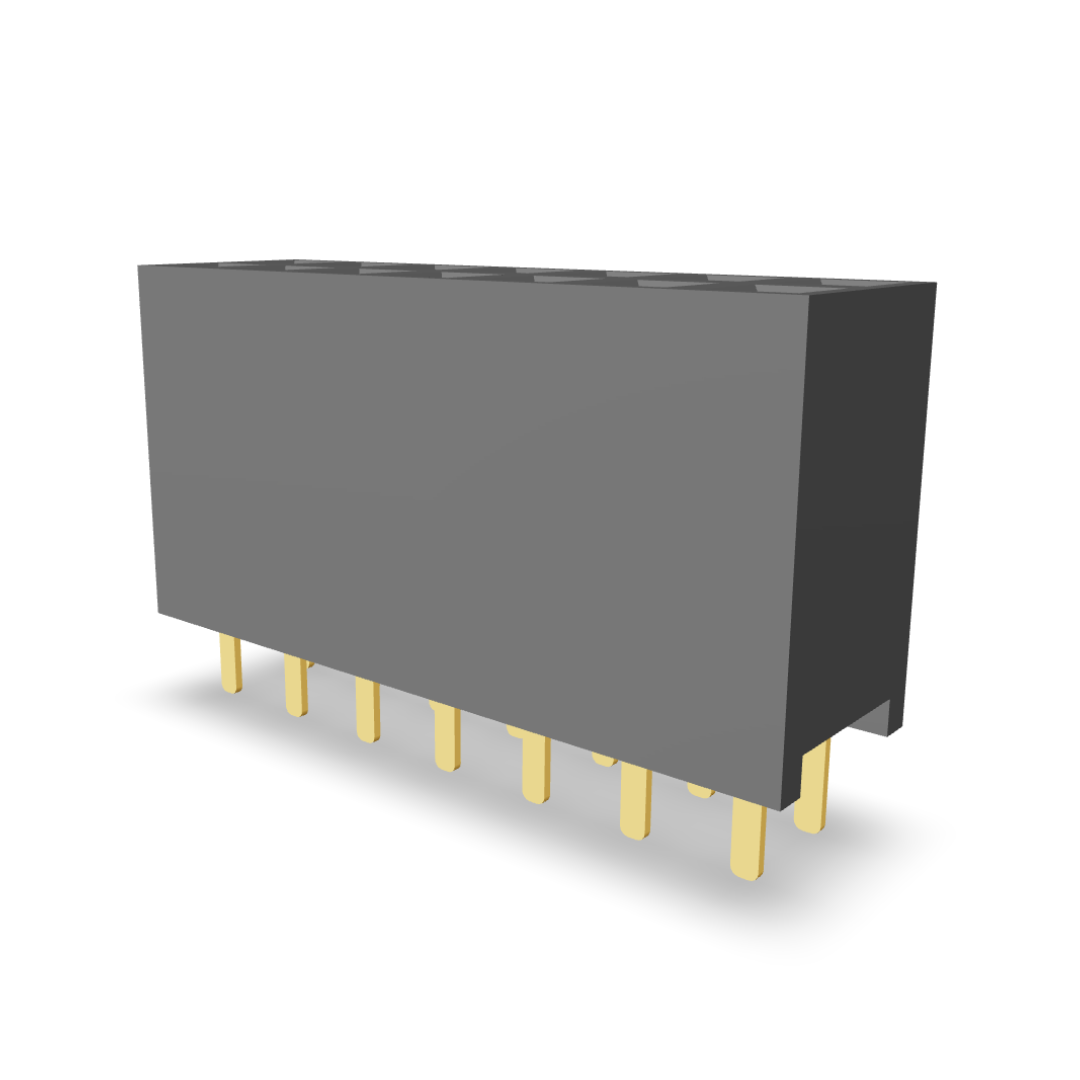

1.27mm Pitch Female Header Single Row Profile: 8.5mm P9431D
Description
Its single-row configuration ensures stable interconnections, electronic applications that demand precise and robust connectivity.
Material and Finish
Insulation
Material: |
Polyester |
Flammability: |
UL94V-0 / Nylon 6T |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
500V AC/Min |
Contact Resistance: |
20m OHMS Max |
Part No
P943XDXXX4-2X
