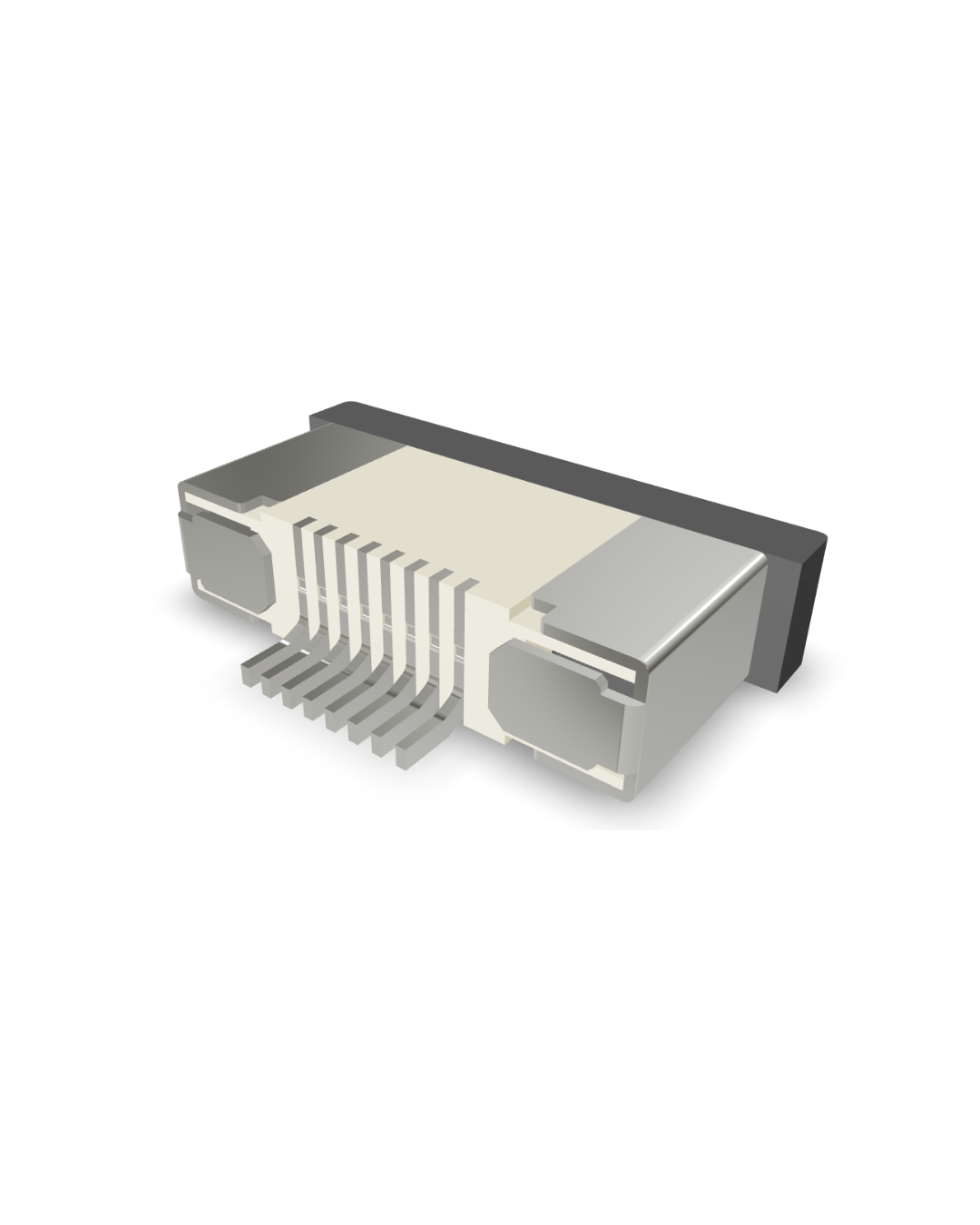

FPC 0.5mm PITCH CONNECTORS HORIZONTAL TYPE, BOTTOM CONTACT (P7065B21-24XX-X)
Description
This connector ensures reliable and efficient connections, making it ideal for use in various electronic devices.
Material and Finish
Insulation
Material: |
LCP |
Flammability: |
UL94V-0 |
Crimp Terminal: |
Copper Alloy, Tin Plated |
Packaging Type: |
Tube/ Tabe and Reel |
Electrical Characteristics
Current Rating: |
0.4A |
Insulation Resistance: |
500M OHMS Min |
Voltage Rating |
50V |
Dielectric withstanding: |
200V AC/Min |
Contact Resistance: |
40m OHMS Max |
Environmental Data
Temperature Range: |
-20℃ TO +85° C |
Part No
P7065B21-24XX-X
