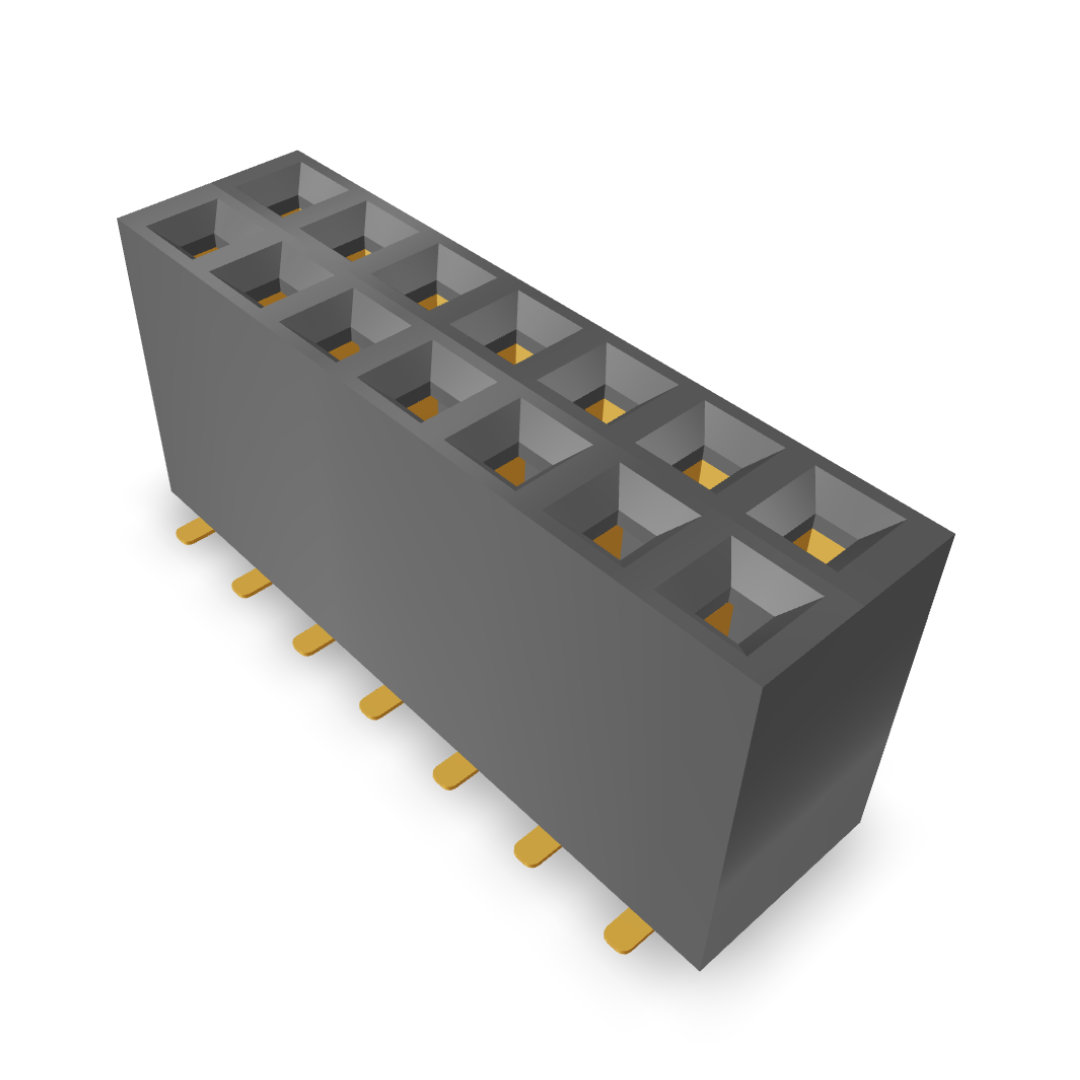

1.0mm Pitch Pin Female Header Surface Mount Double Row P9445
Description
P9445
SPECIFICATIONS
| Current Rating | 1A |
|---|---|
| Contact Resistance | 40mΩ max |
| Insulation Resistance | 5000MΩ min at 500V |
| Dielectric Withstanding | 500V AC at 1 minute |
| Temperature Range | -40ºC to +105ºC |
MATERIAL AND FINISH
| Contact | Copper Alloy, Gold Plated |
|---|---|
| Insulator | Polyester, UL 94V-0 |
