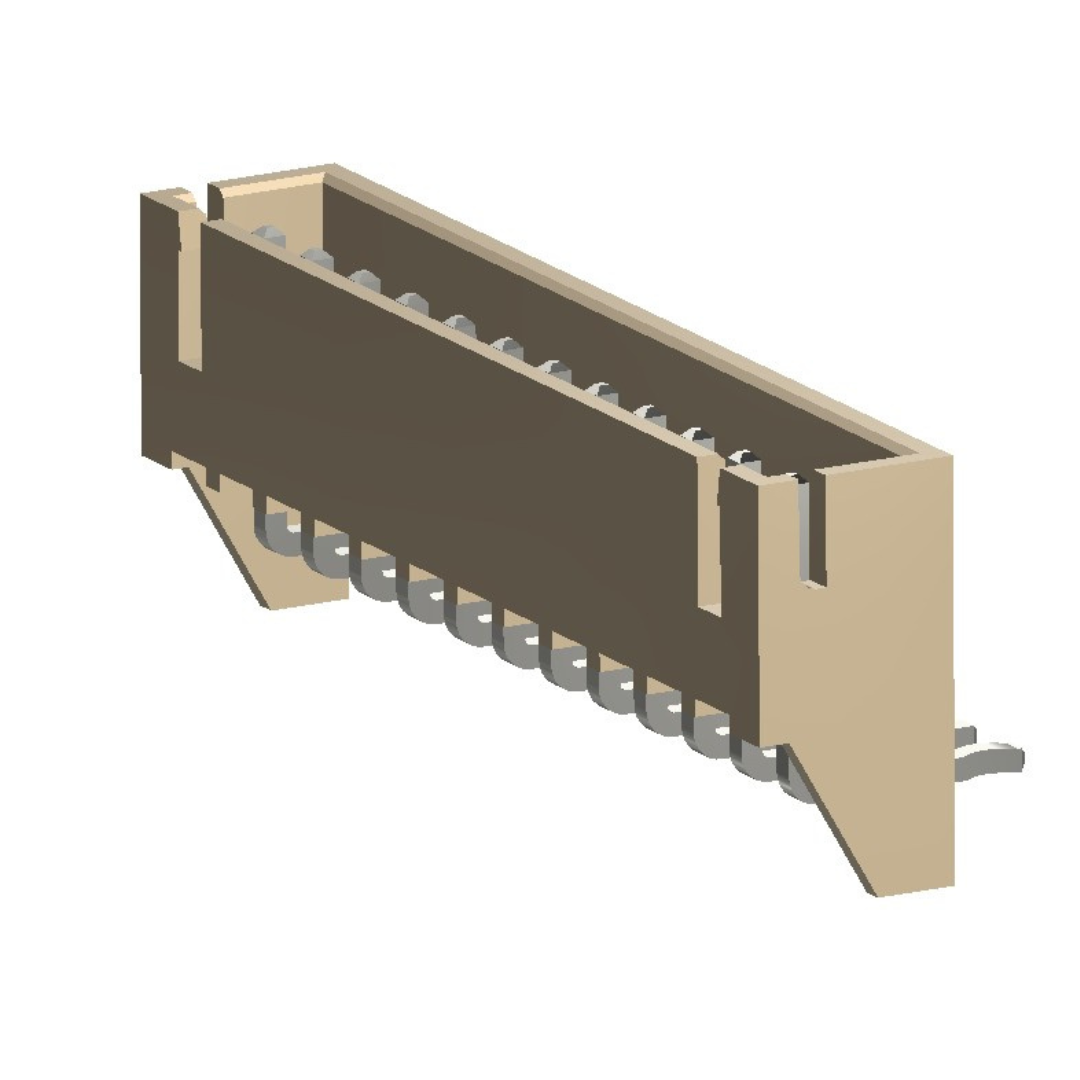

Wafer With Ramp (Right angle) (P9052R29-19-X)
Description
It is a 2.50mm pitch connector designed for secure and efficient board-to-wire connections.
Material and Finish
Material: |
Nylon 66 |
Flammability: |
UL94V-0 |
Color: |
Natural Color |
Contact: |
Brass, Tin Plated |
Packaging Type: |
Bag Packing |
Electrical Characteristics
Current Rating: |
3A AC, DC |
Insulation Resistance: |
1000M Min |
Dielectric Withstanding: |
800V AC/Minute |
Contact Resistance: |
20m Max |
Voltage Rating: |
250V AC/DC |
Mating Details
Housing: |
P9052H |
Crimp Terminal: |
P9052T |
Part No
P9052R29-19-X
