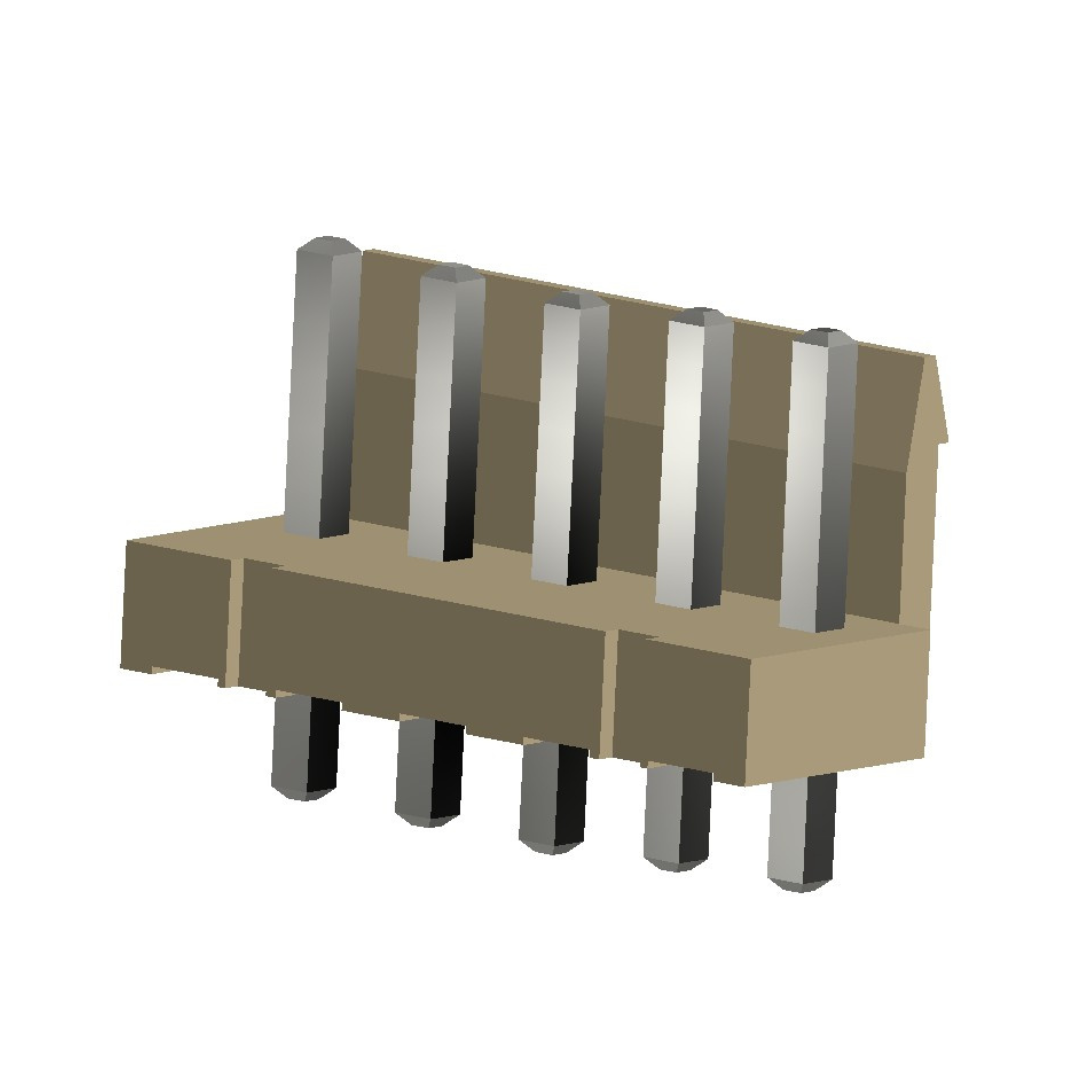

Wafer Straight P9044
Description
P9044
Specifications
| No.of Ways | 2-12 & 16 |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 7A AC,DC |
| Contact Resistance | 10mΩ max |
| Insulation Resistance | 1000MΩ min |
| Dielectric Withstanding | 1500V AC/minute |
| Temperature Range | -25°C to +85°C |
| Applicable PC board Thickness | 1.6mm |
| Crimp Terminal Wire Size | 18-22 AWG |
| Insulation O.D | 2.80mm max |
| Contact Retention for Wafer | 2.5kg min |
Material & Finish
| Crimp Contact | Copper Alloy, Tin/Gold Plated |
|---|---|
| Square Pin | Brass, Tin/Gold Plated |
| Insulator | Nylon |
