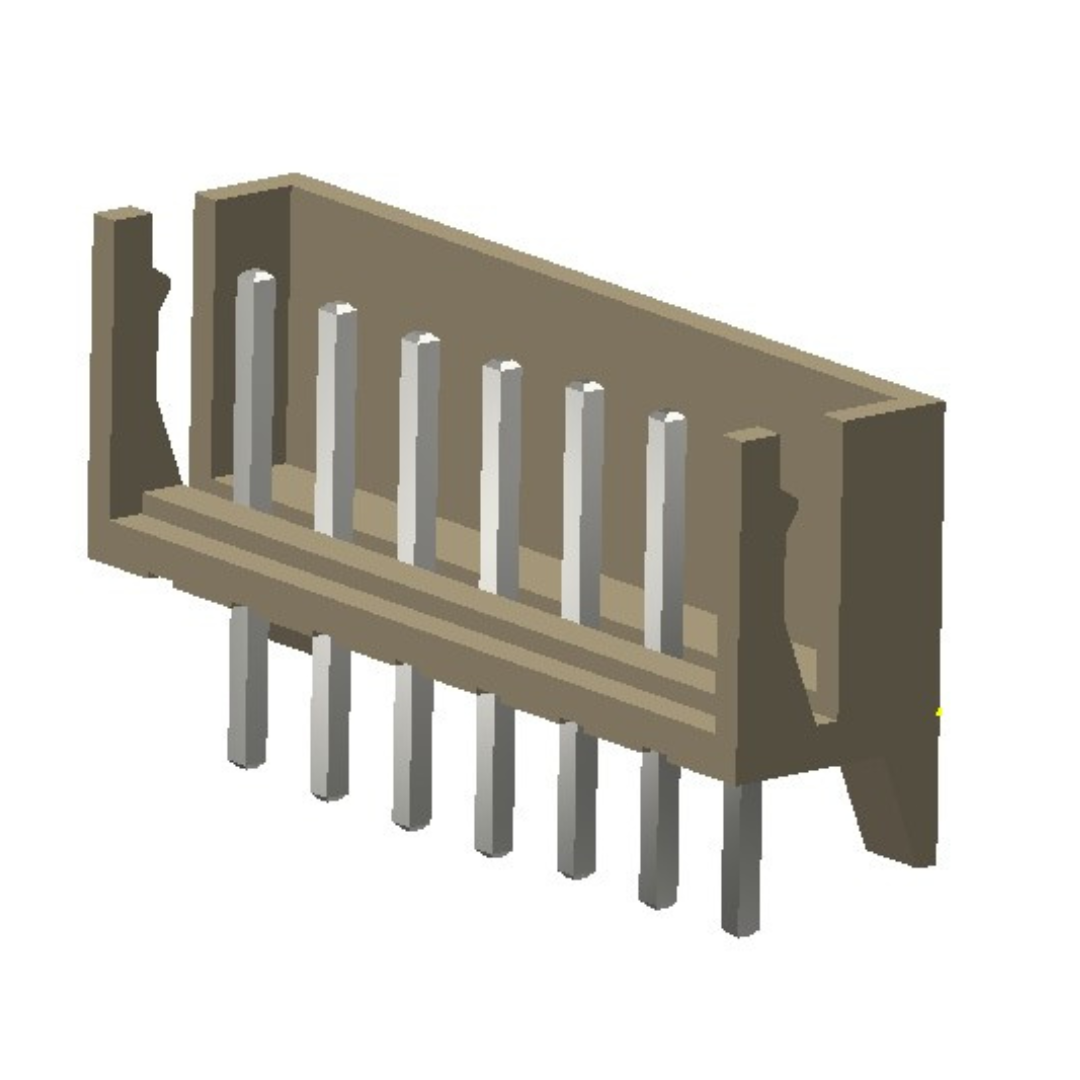

Wafer Disconnectable(Straight) (P9064S29-19-X)
Description
It is a 2.50mm pitch connector designed for secure and reliable board-to-wire connections.
Material and Finish
Insulation
Material: |
Nylon 66 |
Flammability: |
UL94V-0 |
Color: |
Natural Color |
Contact
Material: |
Copper Alloy, Tin Plated |
Packaging Type: |
Bulk Packing |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
800V AC/Min |
Contact Resistance: |
20m OHMS Max |
Voltage Rating: |
250V AC/DC |
Part No
P9064S29-19-X
