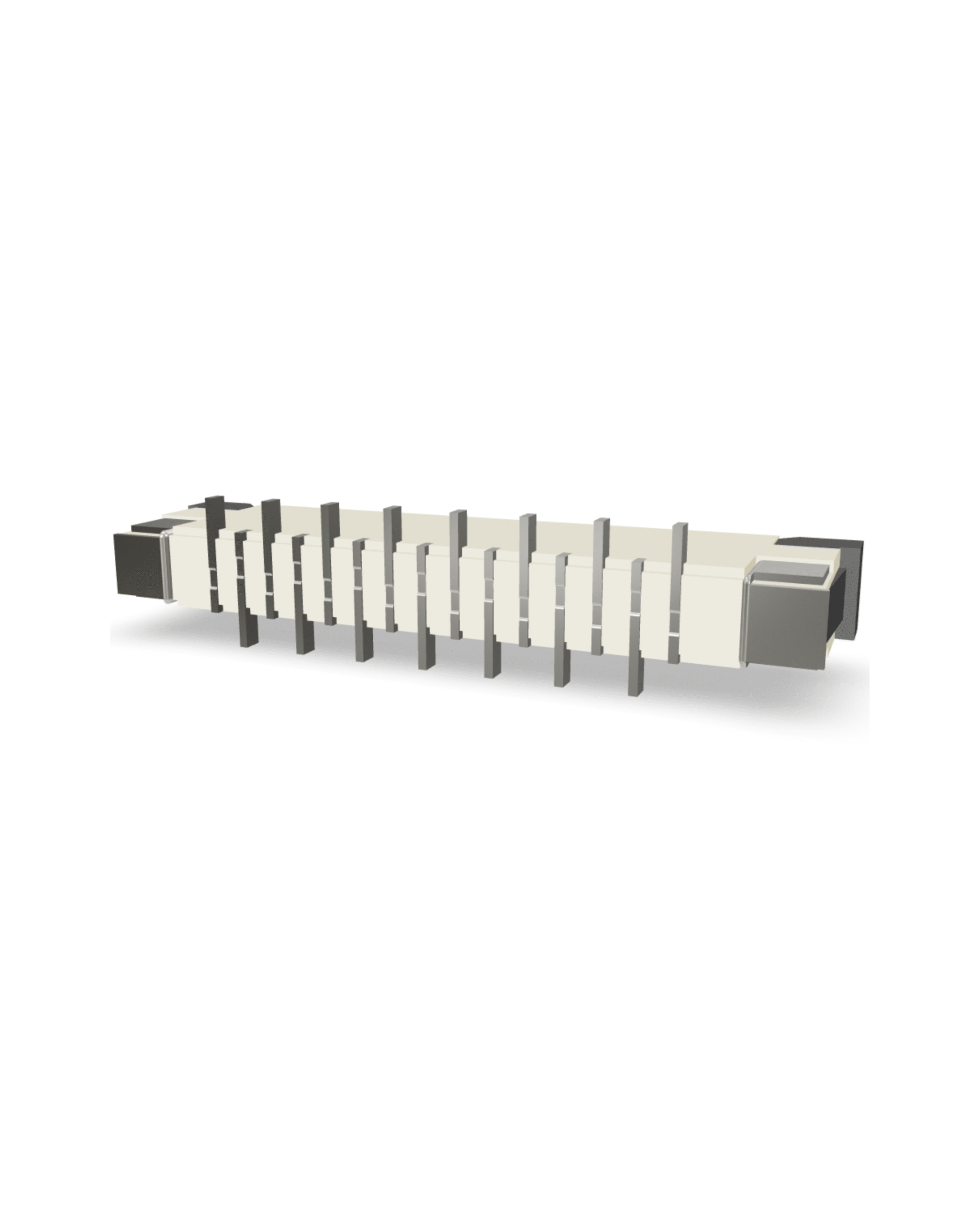

FPC/FFC 1.0mm Pitch ,SMT, Vertical Type Contact (P7045V2C024XX-X)
Description
This connector ensures excellent conductivity and durability, making it ideal for high-density circuit boards and various electronic devices.
Material and Finish
Insulator Body: |
Glass Fiber Nylon, UL94V-0 |
Terminals: |
Copper Alloy, Tin Plated |
Packaging Type: |
Tube/Tape and Reel Packing |
Electrical Characteristics
Current Rating: |
0.5A |
Insulation Resistance: |
500M OHMS Min |
Dielectric Withstanding: |
500mV AC/Min |
Contact Resistance: |
30m OHMS Max |
Environmental Data
Temperature Range: |
-40° to +85°C |
Part No
P7045V2C024XX-X
