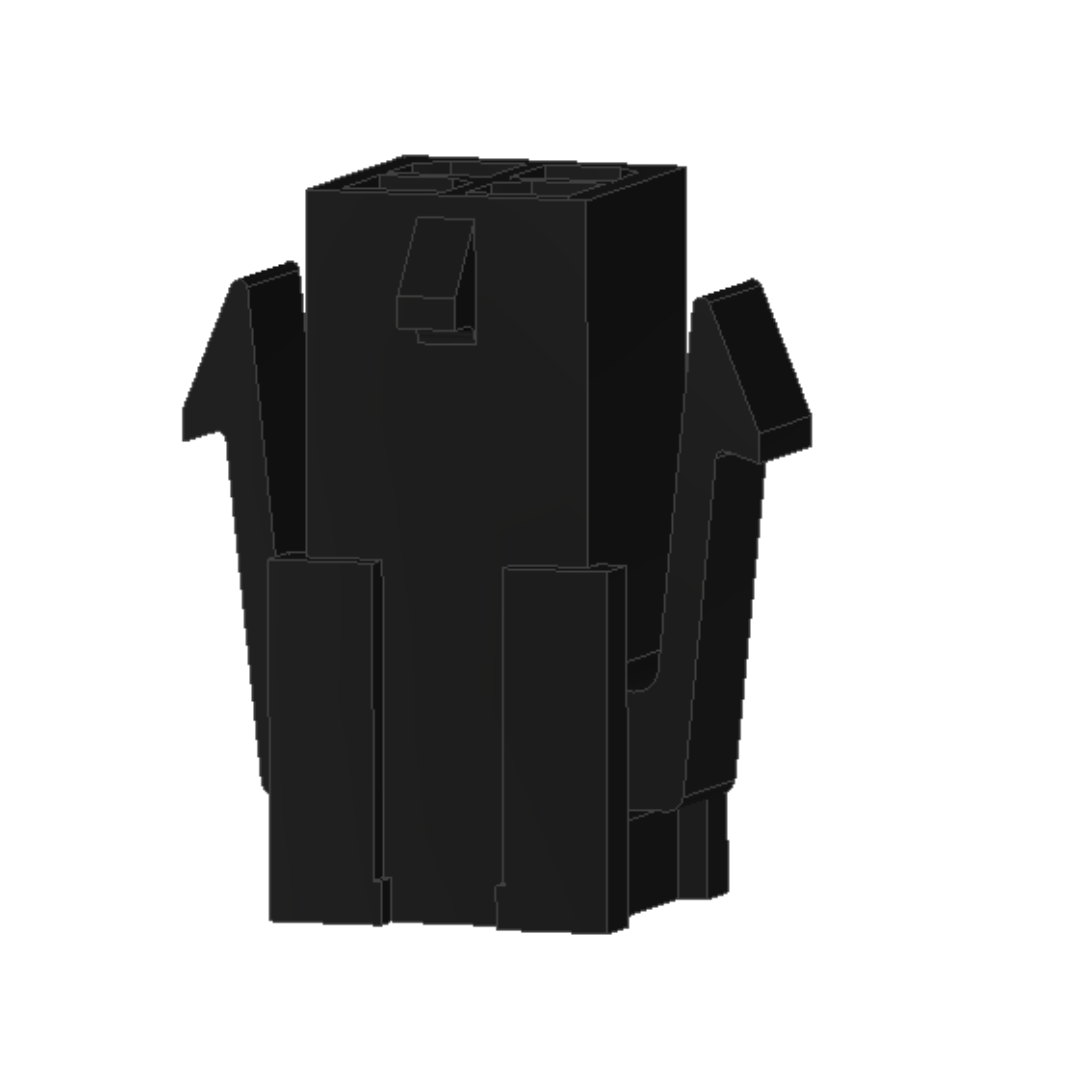

Plug Housing, Double Row P9066PH
Description
P9066PH
Specifications
No. of Ways | 2-24 |
---|---|
Voltage Rating | 250V AC,DC |
Current Rating | 5A AC,DC |
Contact Resistance | 10mΩ max |
Insulation Resistance | 1000MΩ min |
Temperature Range | -25°C to +85°C |
Dielectric Withsatnding | 1500V AC/Minute |
Crimp Terminal Wire Size | 20-24 AWG |
Insulation O.D | 1.80mm max |
Material & Finish
Crimp Contact | Copper Alloy, Tin Plated |
---|---|
Square Pin | Copper Alloy, Tin Plated |
Insulator | PBT 30% GF , UL 94V-0 |
