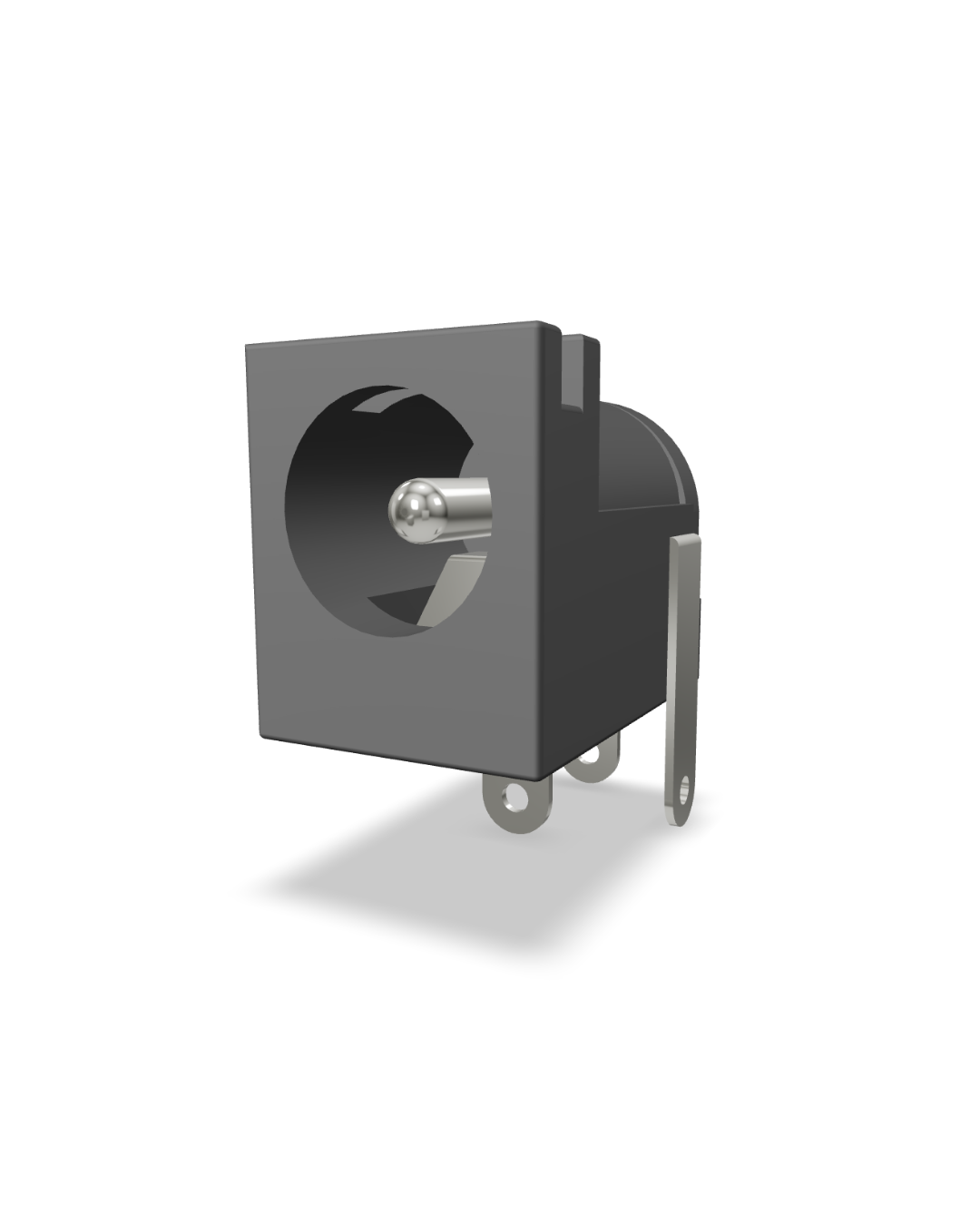

Ø2.0mm DC Power Jack (Without Locking Option), Right Angle PDCJ01-02
Description
The PDCJ01-02 is a versatile Ø2.0mm DC power jack designed with a right-angle configuration and no locking option.
Material and Finish
Material: |
Refer Table |
Electrical Characteristics
Contact Resistance: |
1.50Kg |
Insulation Resistance: |
0.30 – 2.0Kg |
Dielectric Withstand: |
1000 Cycles Min |
Mechanical Data
Insertion Force: |
1.50Kg |
Extraction Force: |
0.30 – 2.0Kg |
Mating Cycles: |
1000 Cycles Min |
Part No
PDCJ01-02
