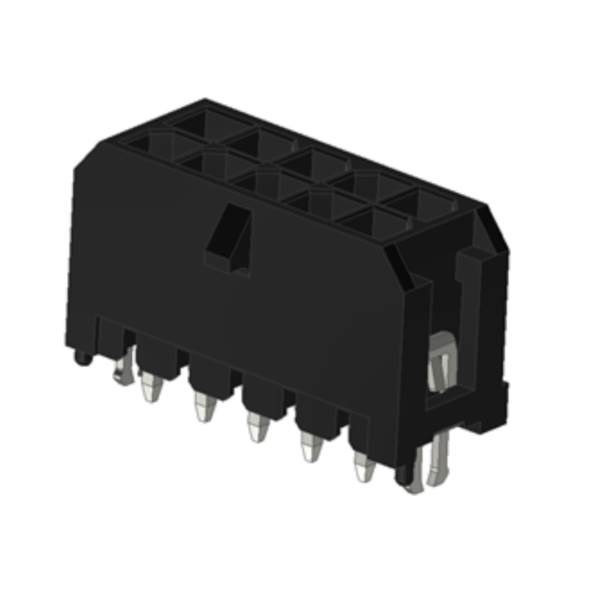

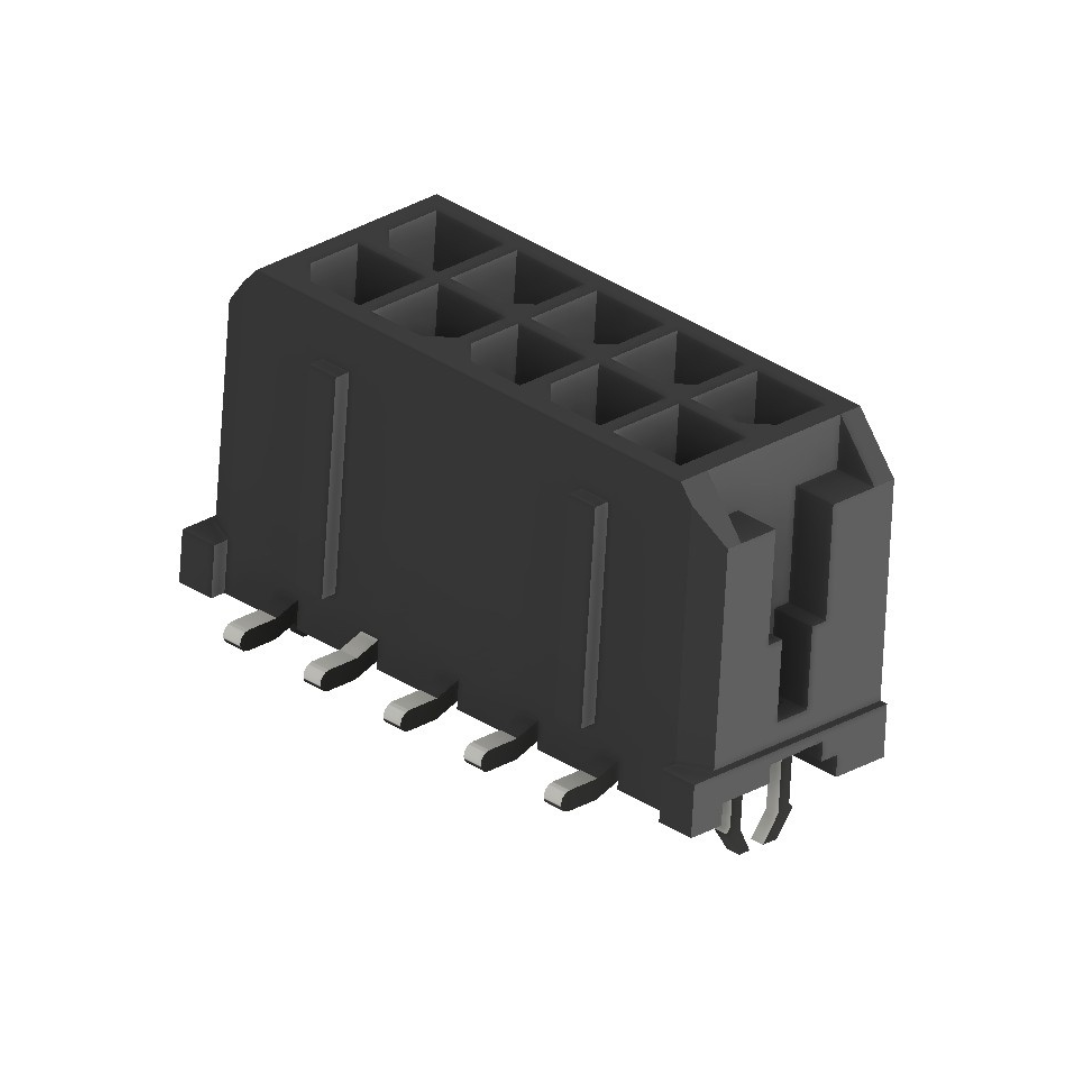

Housing, Surface Mount Double Row P9066M
Description
It is a durable and compact housing unit designed for secure double-row surface mount connections.
Material and Finish
Material: |
LCP |
Flammability: |
UL94V-0 |
Color: |
Black/Tin Plated |
Contact: |
Brass / Tin Packing |
Electrical Characteristics
Current Rating: |
5A |
Insulation Resistance: |
10000M OHMS Min |
Dielectric withstanding: |
1500V AC/Min |
Contact Resistance: |
10m OHMS Max |
Voltage Rating: |
250V AC/DC |
Part No
P9066M20-19-XR
