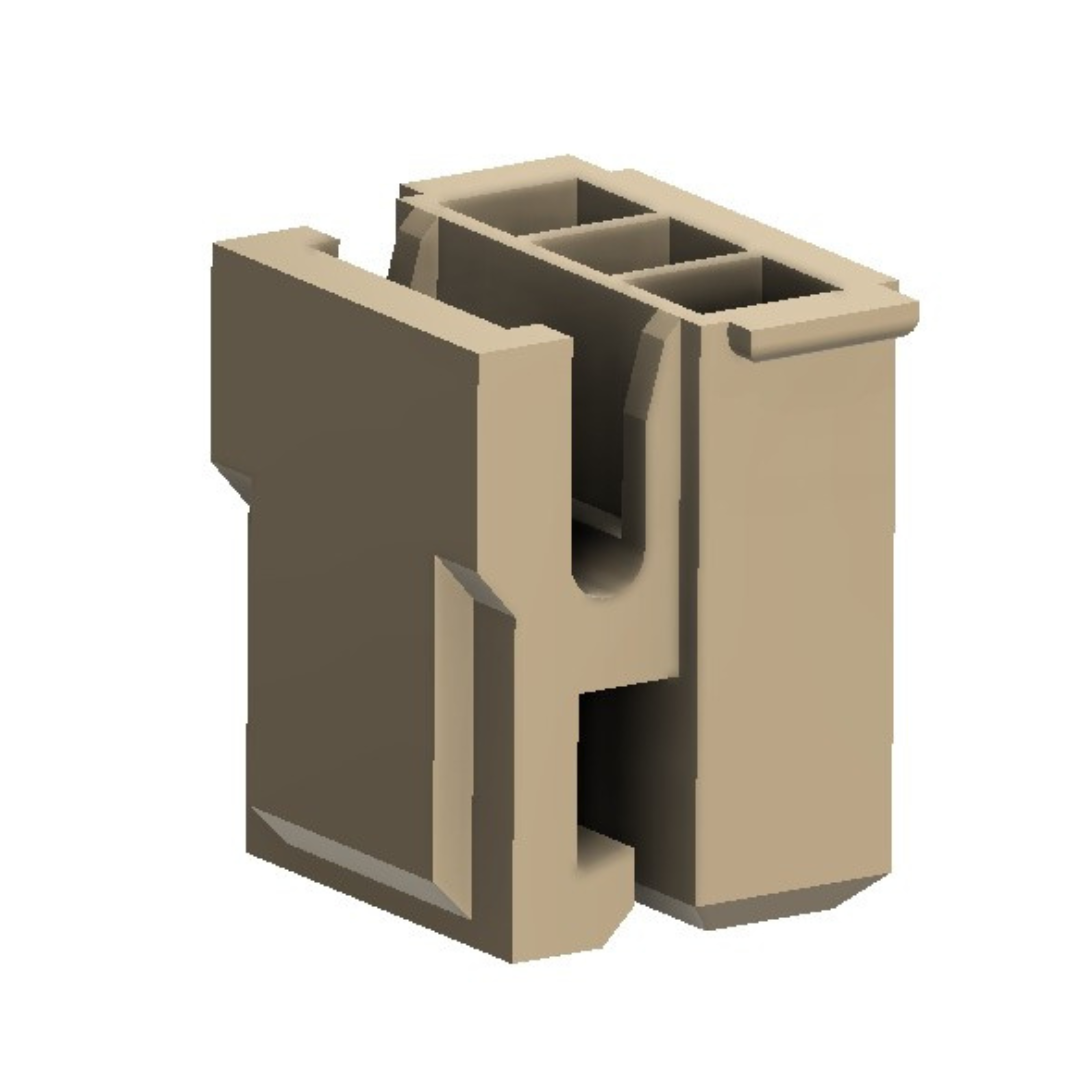

Housing 2.0mm Pitch, Single Row (P9086H29-00-X)
Description
The P9086H is a single-row housing with a 2.0mm pitch, designed to accommodate compatible crimp terminals for secure and organized connections.
Material and Finish
Material: |
Nylon 66, Natural / White Color |
Flammability: |
UL94V-0 |
Packaging Type: |
Bulk Packing |
Electrical Characteristics
Current Rating: |
3A, AC, DC |
Insulation Resistance: |
1000M OHMS Min |
Dielectric Withstanding: |
1000V AC for 1 minute |
Contact Resistance: |
30 m Max |
Voltage Rating: |
250V AC/DC |
Part No
P9086H29-00-X
