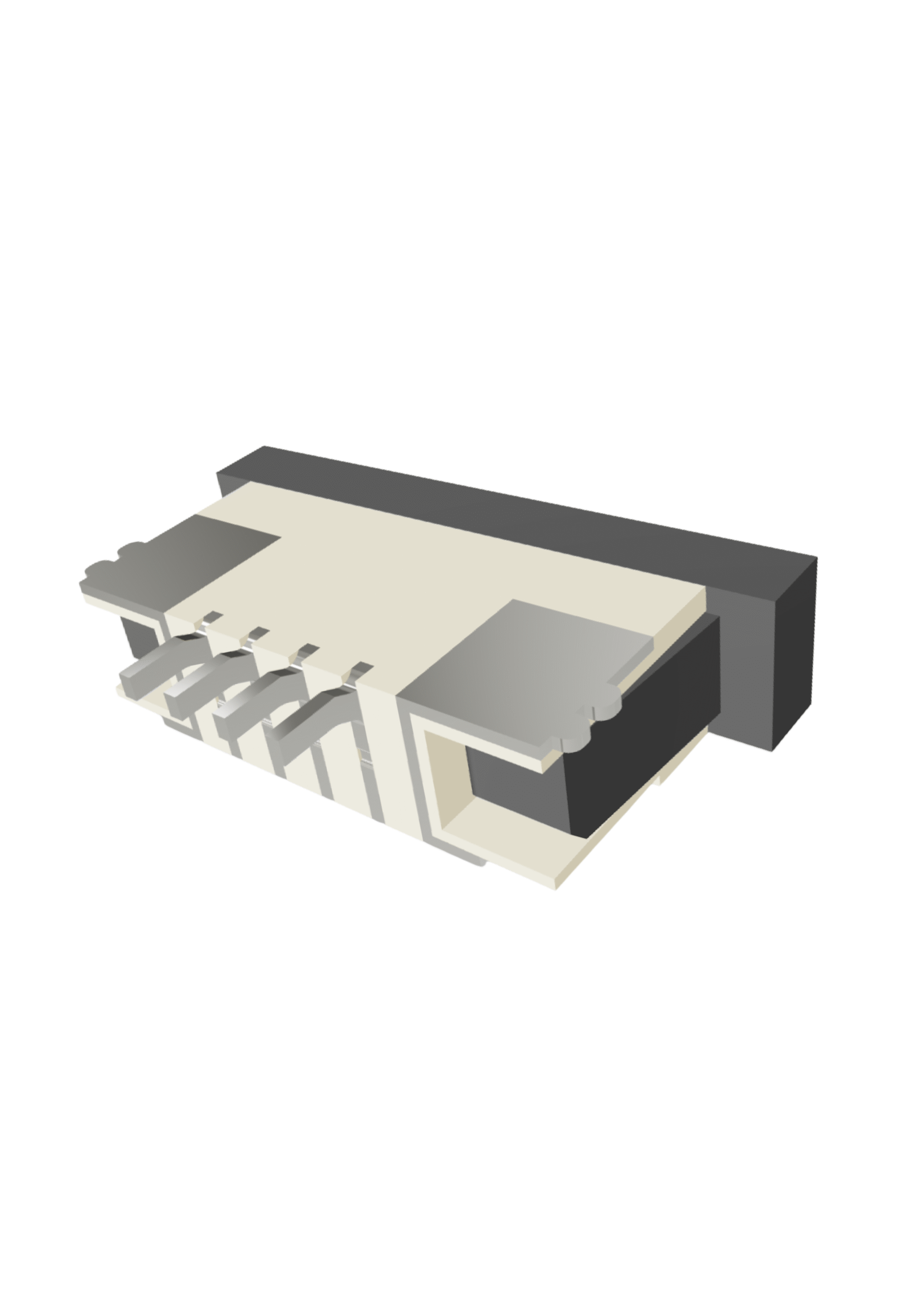

Horizontal Type Top Contact (P7045T2C024XX-XR8)
Description
Its horizontal design and top contact configuration facilitate easy integration and optimal performance in various electronic devices.
Material and Finish
Housing: |
Nylon 6T, UL94V-0 Natural (Beige) |
Contacts: |
Phosphor Bronze, Tin Plated |
Solder Tabs: |
Phosphor Bronze, Tin Plated |
Actuator: |
Nylon 6T, UL94V-0 Natural (Black) |
Packaging Type: |
Tube / Tape and Reel |
Electrical Characteristics
Current Rating: |
0.5A, AC/DC |
Insulation Resistance: |
500M OHMS Min |
Dielectric withstanding: |
500V AC/Min |
Contact Resistance: |
30m OHMS Max |
Voltage Rating: |
50V, AC/DC |
Part No
P7045T2C024XX-XR8
