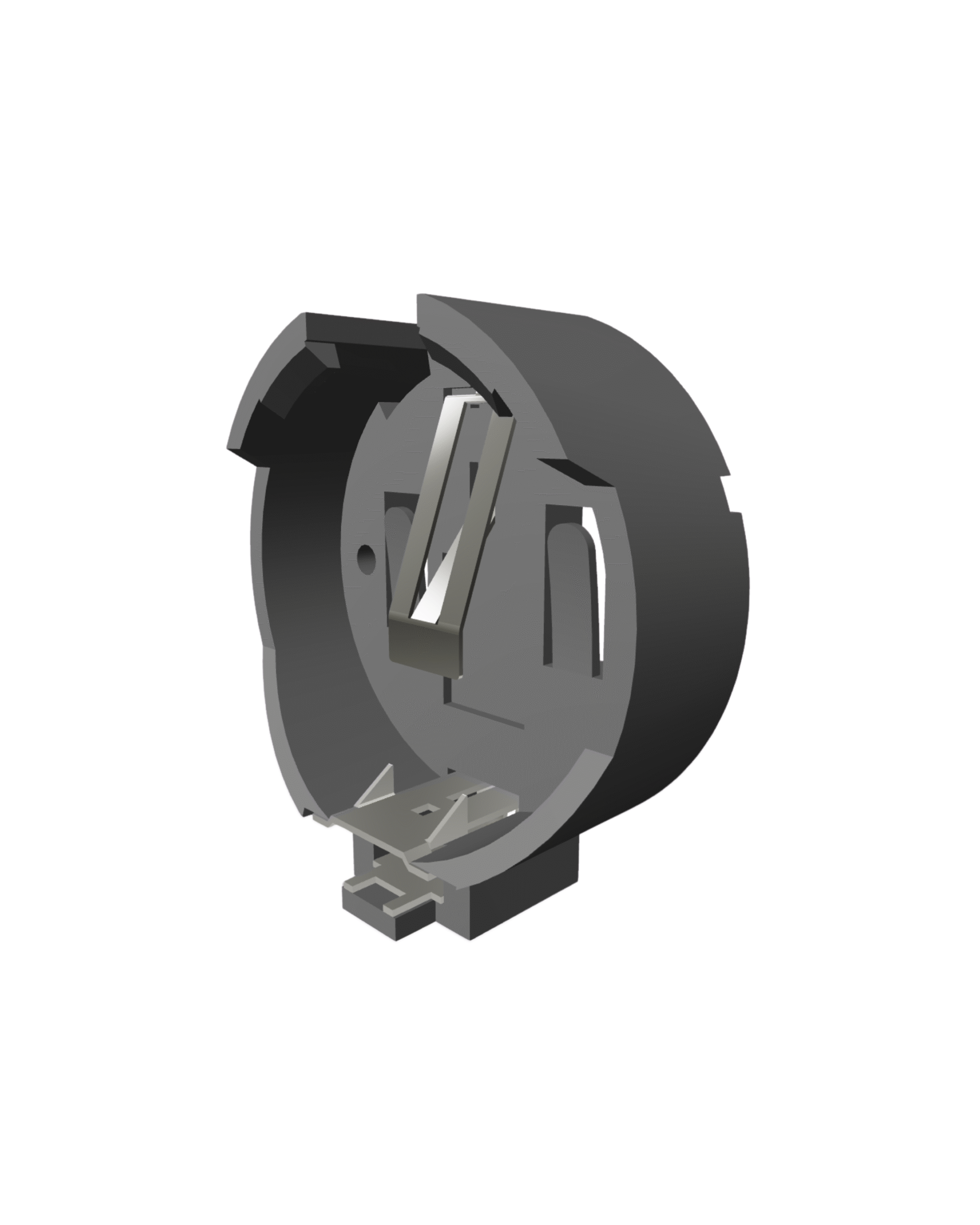

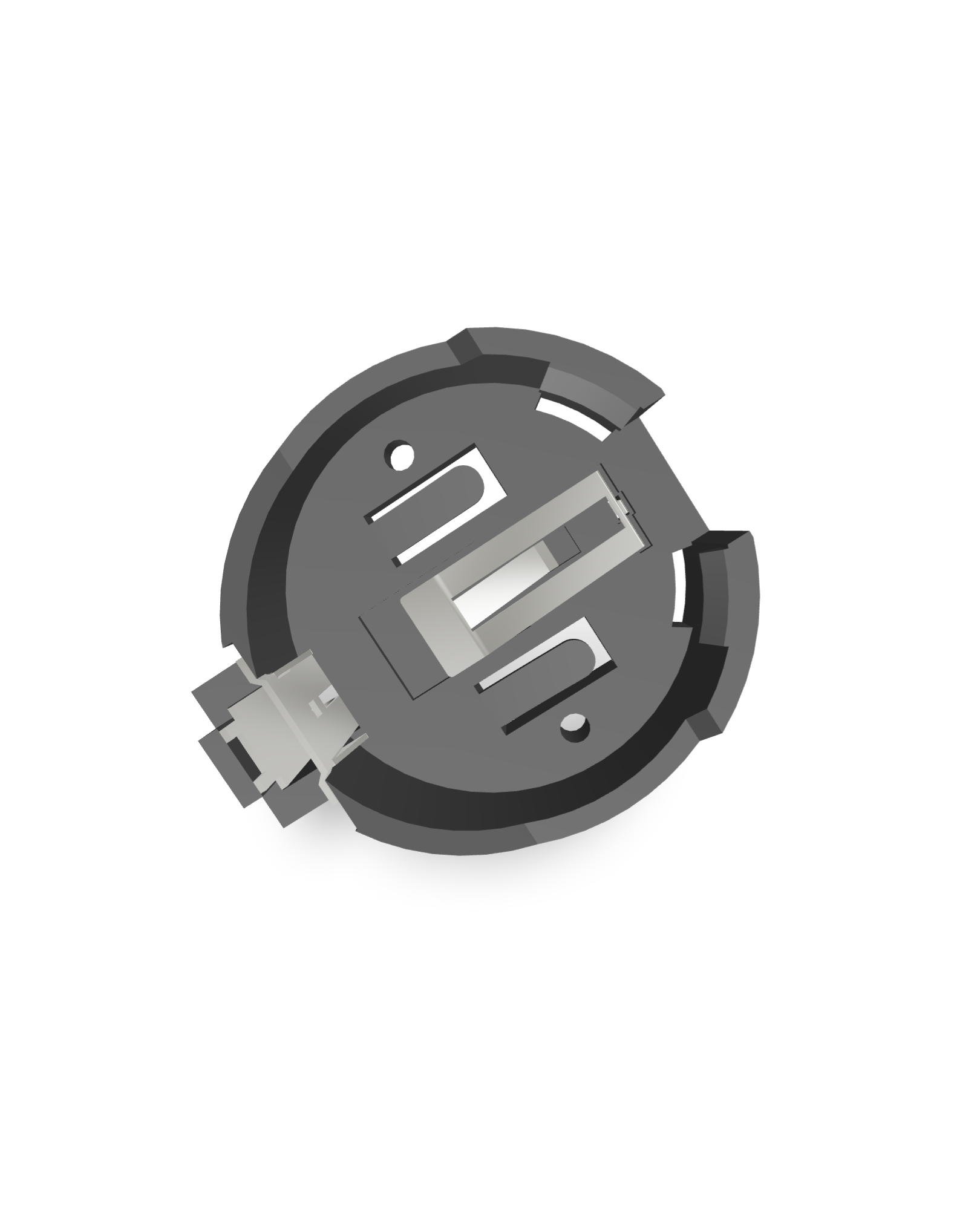

Coin Battery Holder, Horizontal Mount (PBATH11-20-19)
Description
The PBATH11-20-19 is a horizontal component designed for specific applications requiring a robust and reliable connection.
Material & Finish
Insulator: |
PBT +30% G.F |
Flammability: |
UL94 V-0 |
Color: |
Black |
Contact: |
Copper Alloy, Tin Plating |
Electrical Characteristics
Contact Resistance: |
30 mΩ max |
Insulation Resistance: |
1000 MΩ min |
Dielectric Withstand: |
1000V AC/minute |
Environmental Data
Soldering Temperature: |
260±5℃ |
Part No
PBATH11-20-19
