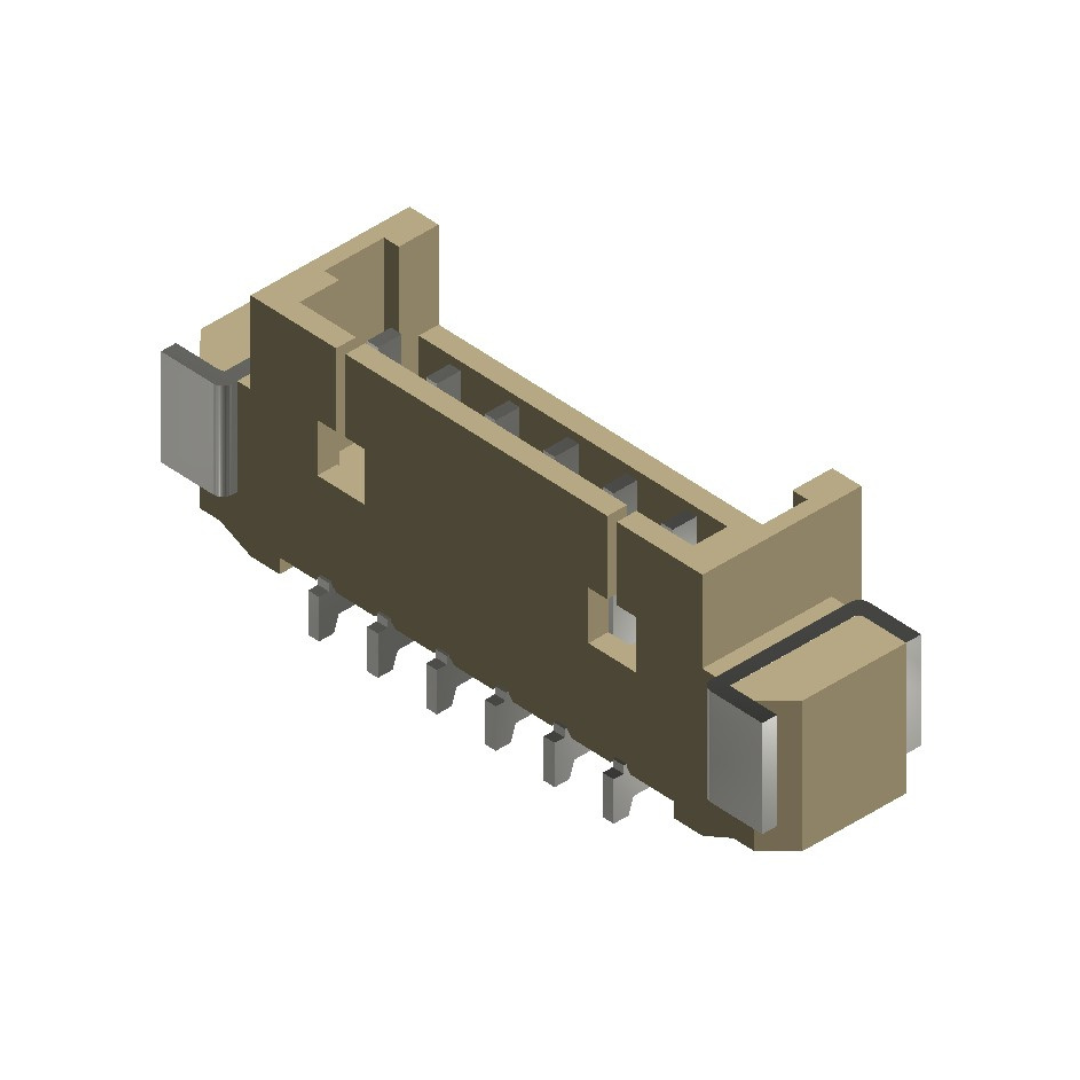

Header, Surface Mount (Right Angle) (P9056N629-9-X)
Description
It is a connector with male pins designed for board-to-board connections, mounted at a right angle to the PCB.
Specifications
No. of Ways |
2-15 |
|---|---|
Voltage Rating |
1000V AC,DC |
Current Rating |
1A AC,DC |
Contact Resistance |
20mΩ max |
Insulation Resistance |
500MΩ min |
Temperature Range |
-25°C to +85°C |
Dielectric Withsatnding |
500V AC/Minute |
Crimp Terminal Wire Size |
28-32 AWG |
Insulation O.D |
1.00mm max |
Material & Finish
Crimp Contact |
Phosphor Bronze, Tin Plated |
|---|---|
Square Pin |
Phosphor Bronze, Tin Plated |
Insulator |
Nylon , UL94V-0 |
Part No
P9056N629-9-X
