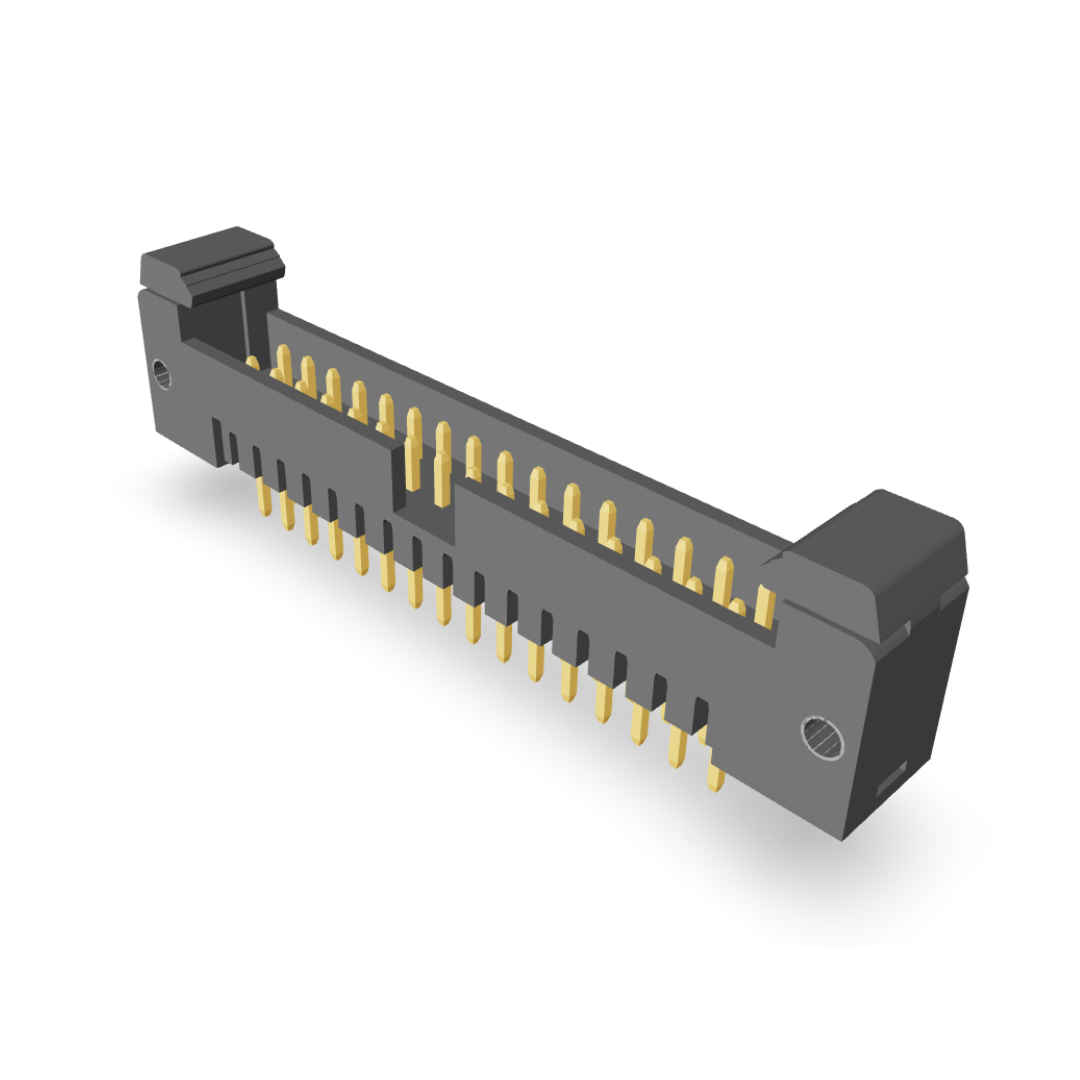

Ejector Header 2.00mm Pitch, DR Straight
Description
he Ejector Header 2.00mm Pitch, DR Straight, is a dual-row connector designed for reliable and secure connections in compact electronic applications
Material and Finish
Material: |
PA6T |
Flammability: |
UL94V-0 |
Crimp Terminals: |
Brass, Gold Plated |
Packaging Type: |
Standard Packaging |
Electrical Characteristics
Current Rating: |
1.5A |
Insulation Resistance: |
800M OHMS Min |
Dielectrics withstand: |
500V AC/DC |
Contact Resistance: |
20m OHMS Max |
Part No
P9913-XX-37S11
