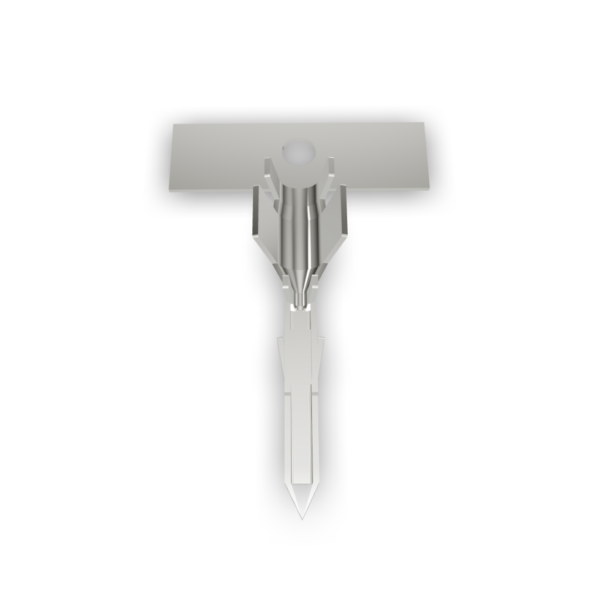

Crimp Terminal P9049T
Description
P9049T
Specifications
No.of Ways | 3-6(Single Row) 2-24(Double Row) |
---|---|
Voltage Rating | 250V AC,DC |
Current Rating | 5A AC,DC |
Contact Resistance | 30mΩ max |
Insulation Resistance | 1000MΩ min |
Dielectric Withstanding | 1500V AC/minute |
Temperature Range | -25°C to +90°C |
Crimp Terminal Wire Size | 18-24 AWG |
Insulation O.D | 2.8mm max |
Material & Finish
Crimp Contact | Copper Alloy, Tin Plated |
---|---|
Square Pin | Copper Alloy, Tin Plated |
Insulator | Nylon, UL 94V-0 |
