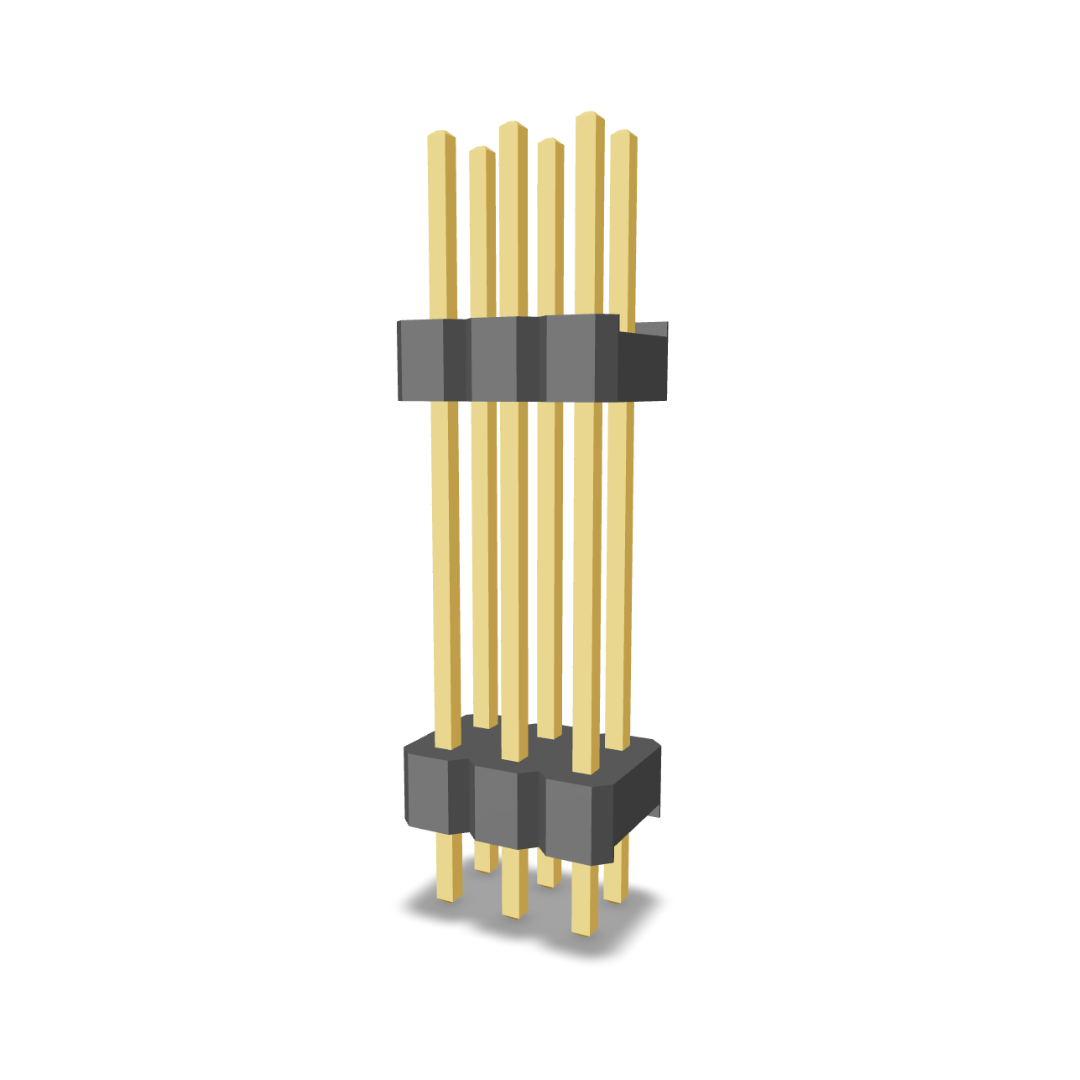

2.5mm Pitch Pin Header Basic Stack Type Double Row (Straight) P9108
Description
The P9108 is a basic stack type, double row, straight pin header with a 2.5mm pitch, designed for reliable and efficient electrical connections.
Specification
Pin Retention Force: |
10N/1Kg. Min |
Material and Finish
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
10000M OHMS Min |
Dielectric withstanding: |
1000V AC/Min |
Part No
P9108-XXD12-1
