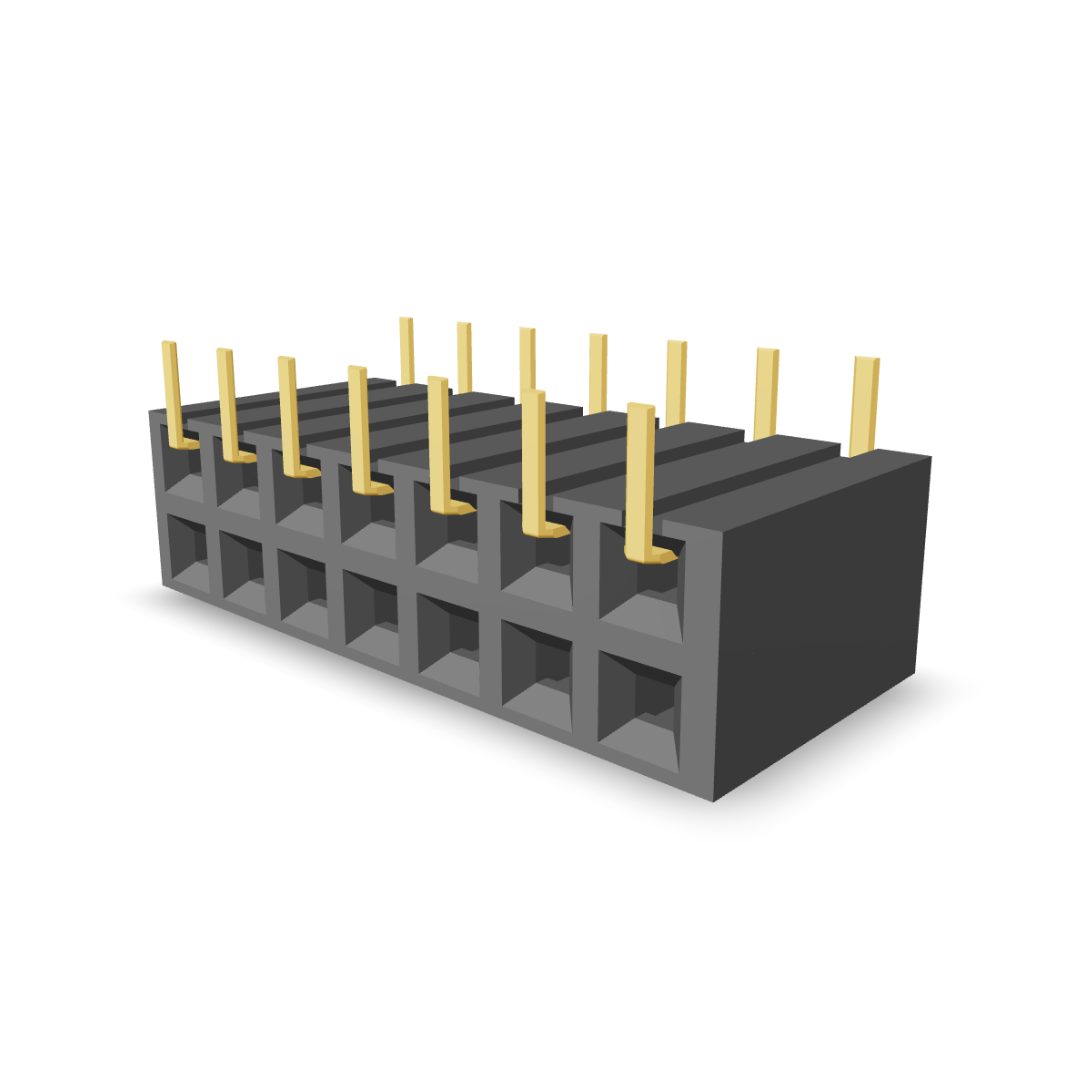

2.54×7.87mm Pitch Header Side Entry Double Row (Right Angle) P9410
Description
Its side-entry, right-angle configuration offers robust and stable connectivity, electronic applications requiring precise and reliable interconnections.
Specifications
| Current Rating | 1A |
|---|---|
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 5000MΩ min |
| Dielectric Withstanding | 500V AC |
| Insertion Force/Contact | 200gms max |
| Extraction Force/Contact | 20gms min |
| Mechanical Life | 100 Cycles min |
| Temperature Range | -40°c to +105°c |
Material & Finish
| Contact | Copper Alloy, Gold Plated |
|---|---|
| Insulator | Polyester, UL 94V-0 |
