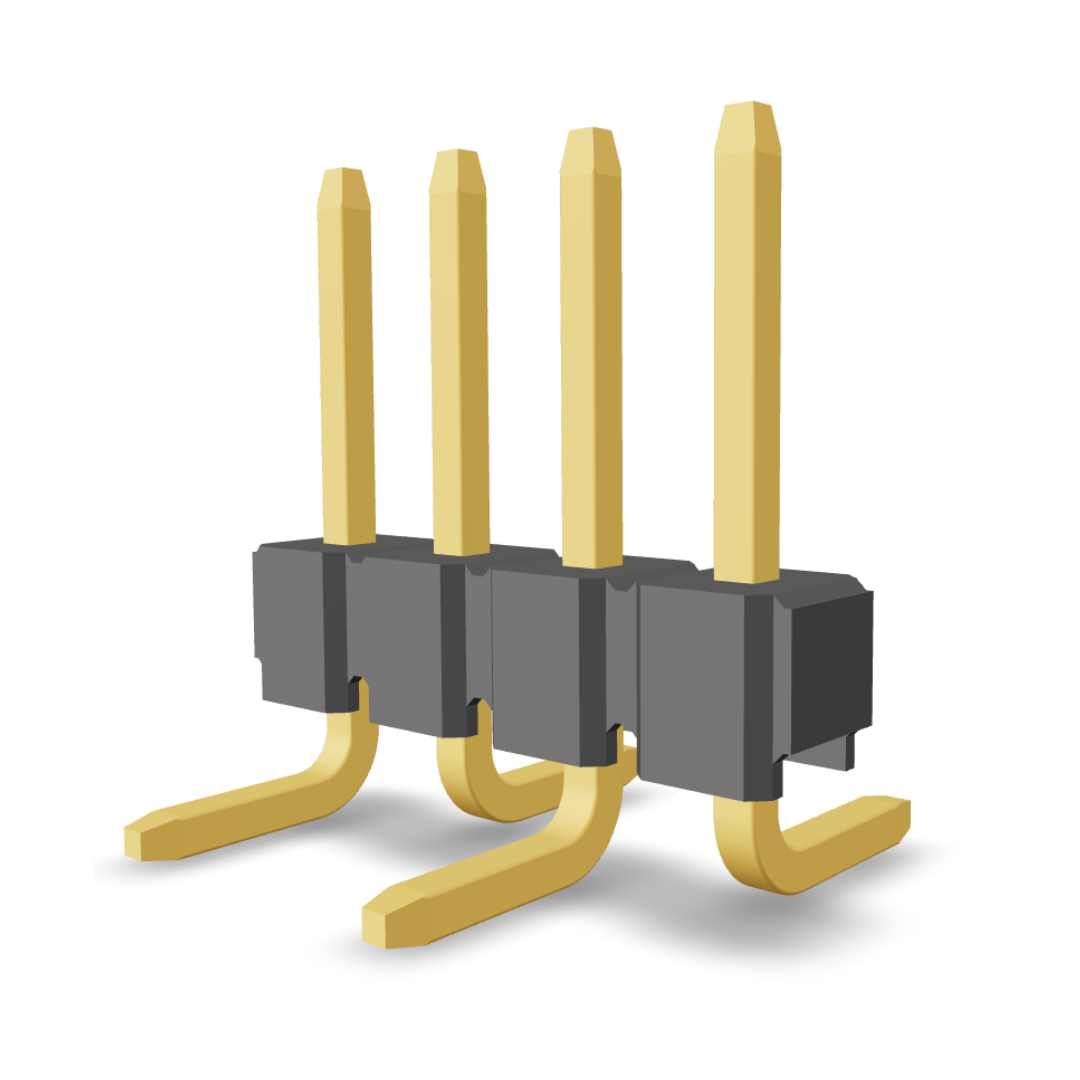

2.54mm Pitch Pin Header Surface Mount Single Row P9107
Description
P9107
Specifications
Current Rating | 3A |
---|---|
Insulation Resistance | 10000MΩ min |
Dielectric Withstanding | 1000V AC/minute |
Temperature Range | -40°c to +105°c |
Retention Force | 1.0Kg min |
Applicable PC Board Thickness | 0.8 to 1.6mm |
Material & Finish
Contact | Copper Alloy, Gold Plated |
---|---|
Insulator | Glass Filled Thermoplastic Polyester, UL94V-0 |
