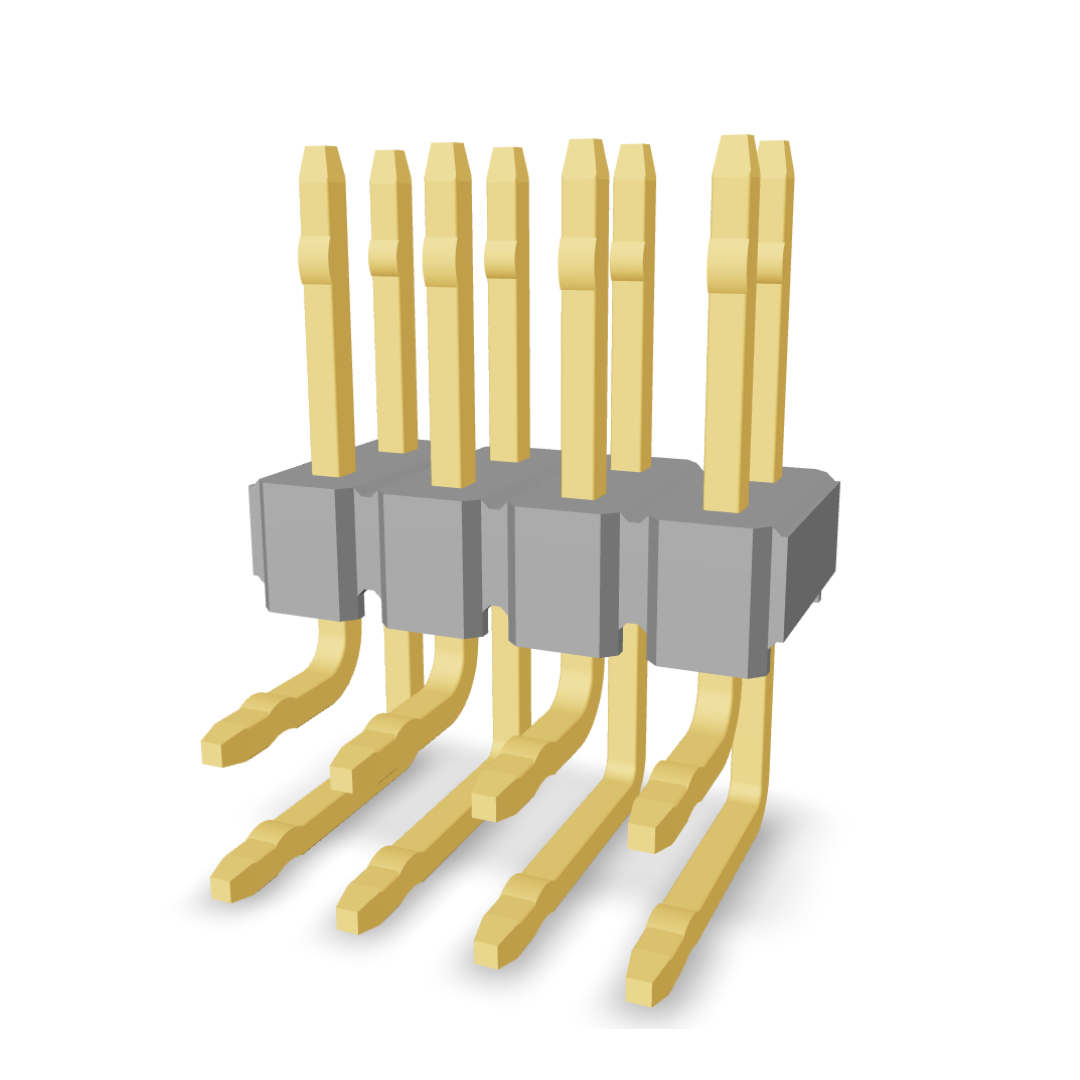

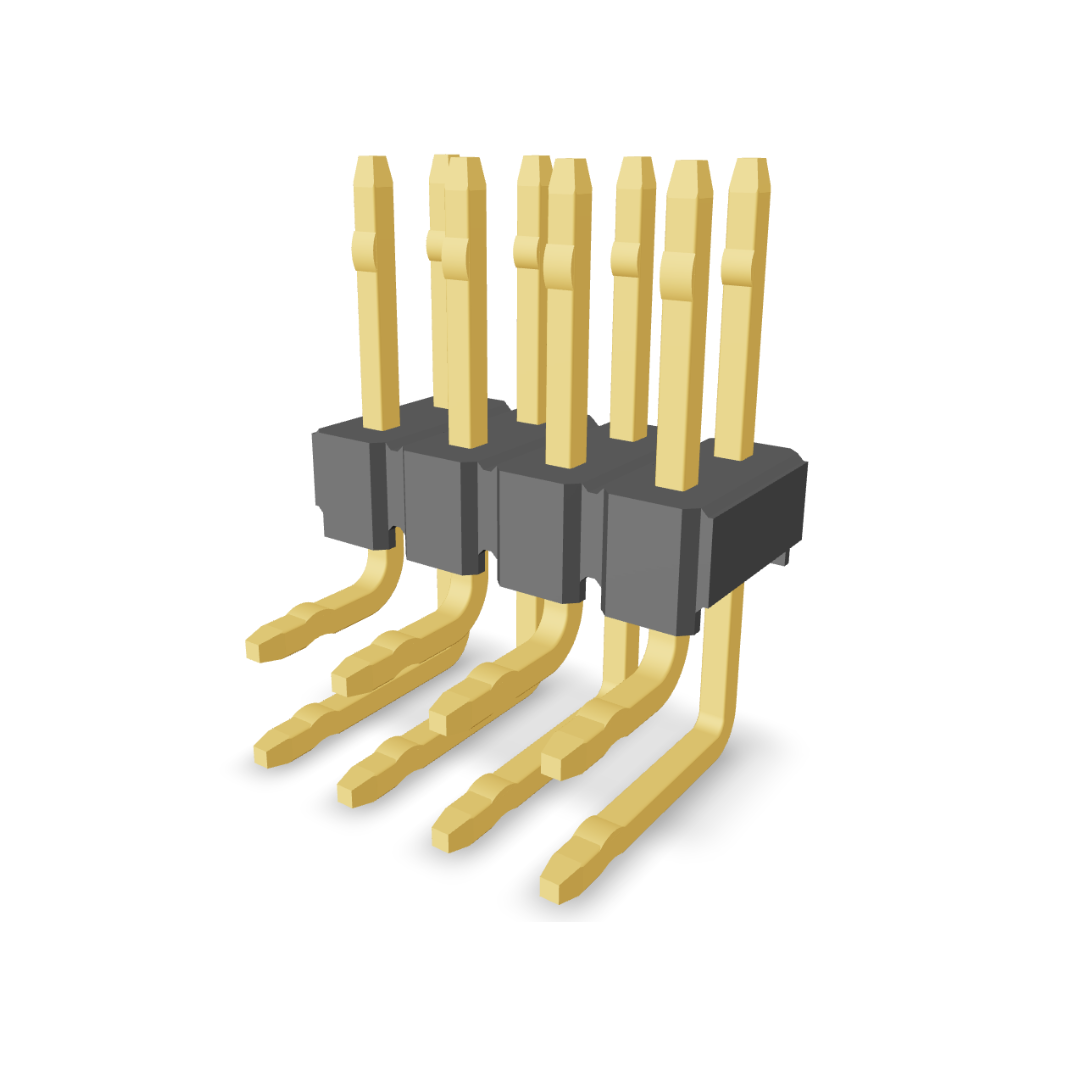

2.54mm Pitch Pin Header, Right Angle with Kink(P9104C04)
Description
The P9104C04 is a right-angle pin header with a 2.54mm pitch and kinked pins, designed for secure and efficient electrical connections.
Material and Finish
Insulation
Material: |
PBT 30% GF |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Finish: |
4uSn Over 1.25uNi Plating (Process Tolerance+ 10%) |
Packing Type: |
Standing Packing |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
1000M OHMS Min |
Contact Resistance: |
20m OHMS Max |
Voltage Rating: |
500V AC for 1minute |
Part No
P9104C04-JS-4K2
