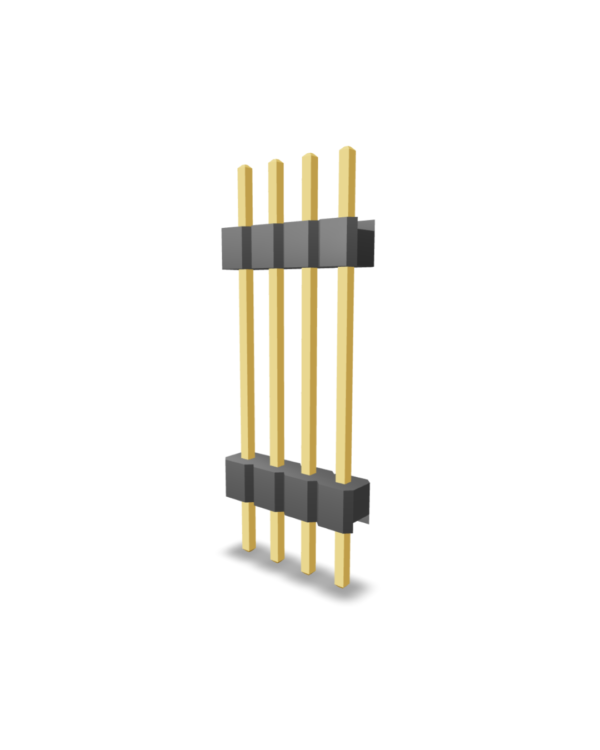

2.54mm Pitch Pin Header Basic Stack Type Single Row (straight) (P9109-XXI21-1)
Description
The P9109 is a basic stack type, single row, straight pin header with a 2.54mm pitch, designed for reliable and efficient electrical connections.
Specification
Pin Retention Force: |
10N/1Kg Min |
Material and Finish
Insulation
Material: |
PBT |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
10000 M OHMS Min |
Dielectric withstanding: |
1000V AC/Min |
Contact Resistance |
20M OHMS MAX |
Part No
P9109-XXI21-1
