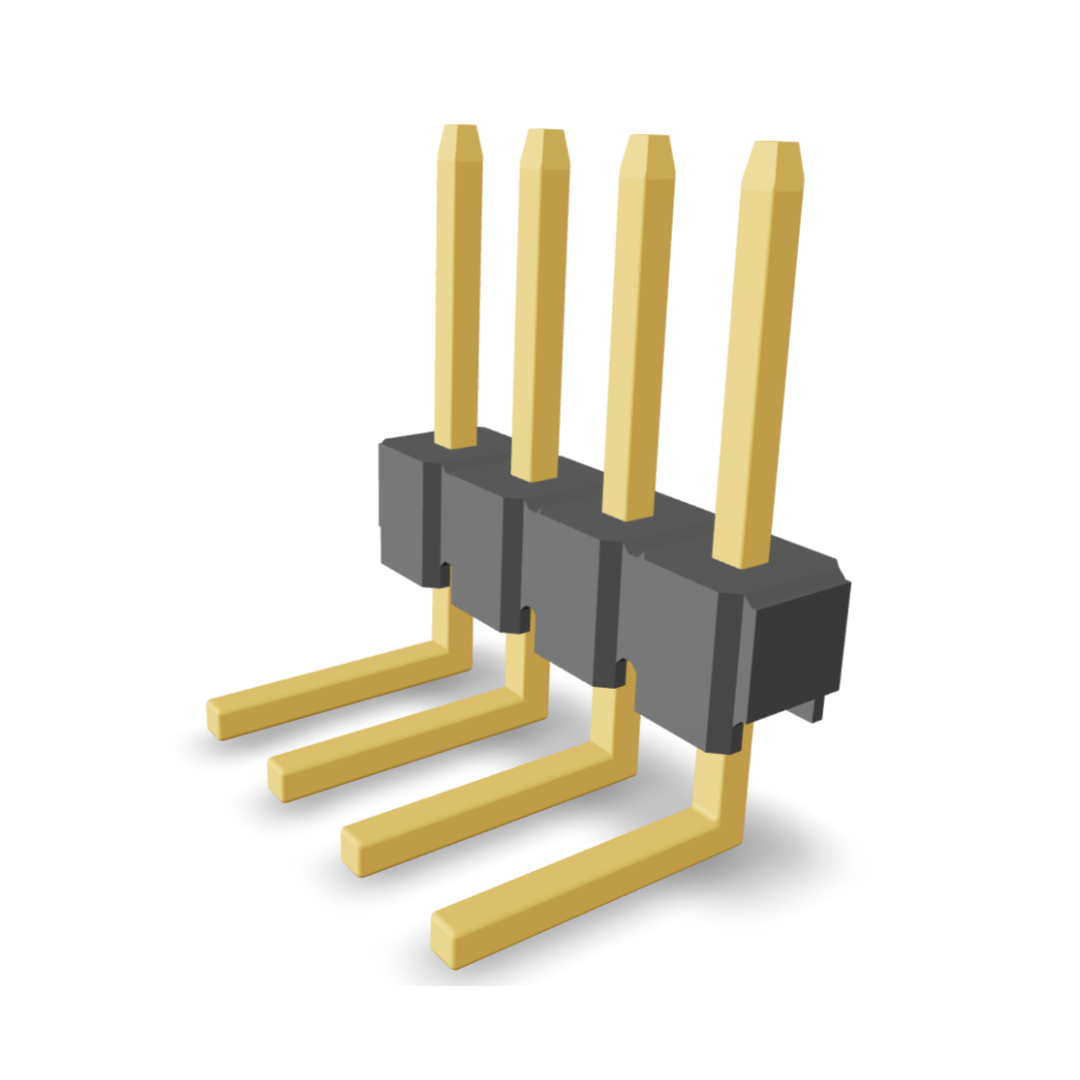

2.54mm Pitch Pin Header Single Row (Right) P9102
Description
The P9102 is a single row, right-angle pin header with a 2.54mm pitch, designed for reliable and efficient electrical connections.
Specifications
| Current Rating | 3A |
|---|---|
| Insulation Resistance | 10000MΩ min |
| Dielectric Withstanding | 1000V AC/minute |
| Temperature Range | -40°c to +105°c |
| Retention Force | 1.0Kg min |
| Applicable PC Board Thickness | 0.8 to 1.6mm |
Material & Finish
| Contact | Copper Alloy, Gold Plated |
|---|---|
| Insulator | Glass Filled Thermoplastic Polyester, UL94V-0 |
