2.54mm Pitch Female Headers Single Row (Straight) Profile: 7.0mm (P930-XX-XX)
Description

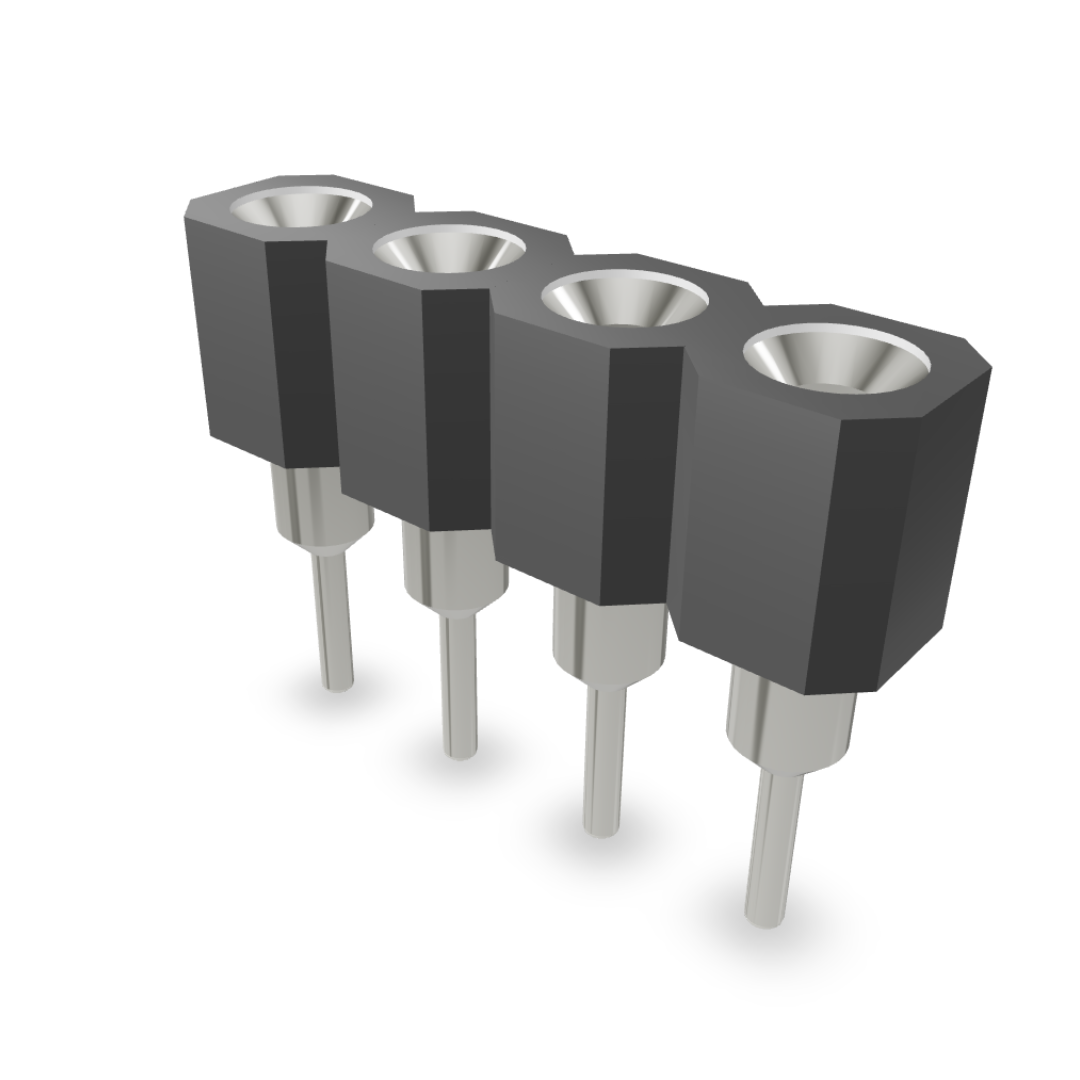

The P9301 2.54mm Pitch Female Header is a single-row, straight-profile connector with a 7.0mm height.
Material and Finish
Material: |
Glass Filled Thermoplasic, Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Sleeve |
Brass, Tin-Lead Plated Over Nickel |
Clip: |
Beryllium Copper, Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
10000M OHMS Min |
Dielectric Withstanding: |
1000V AC/Min |
Contact Resistance: |
10m OHMS Max |
Voltage Rating: |
100V AC / 150V DC |
Part No
P930-XX-XX
