2.54mm Pitch Female Headers Double Row (Straight) (P9303-XX-XX)
Description

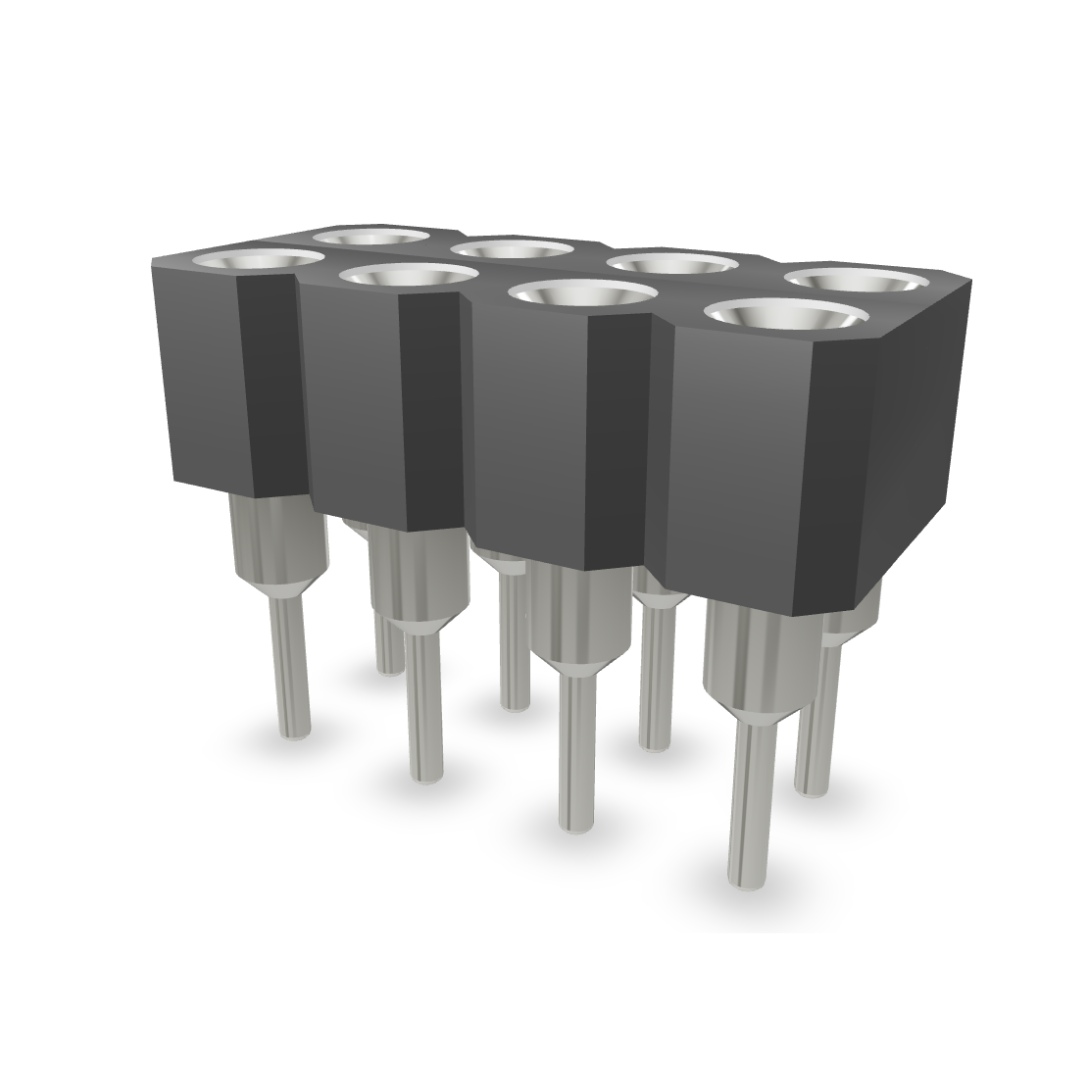

The P9303 is a double row, straight female header with a 2.54mm pitch and a 7.0mm profile, designed for reliable and efficient electrical connections.
Material and Finish
Material: |
Glass Filled Thermoplastic, Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Sleeve: |
Brass, Tin – Lead Plated Over Nickel |
Clip: |
Beryllium Copper, Gold Plated |
Packaging Type: |
Tube / Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
10000M OHMS Min |
Dielectric Withstanding: |
1000V AC/Min |
Contact Resistance: |
10m OHMS Max |
Part No
P9303-XX-XX
