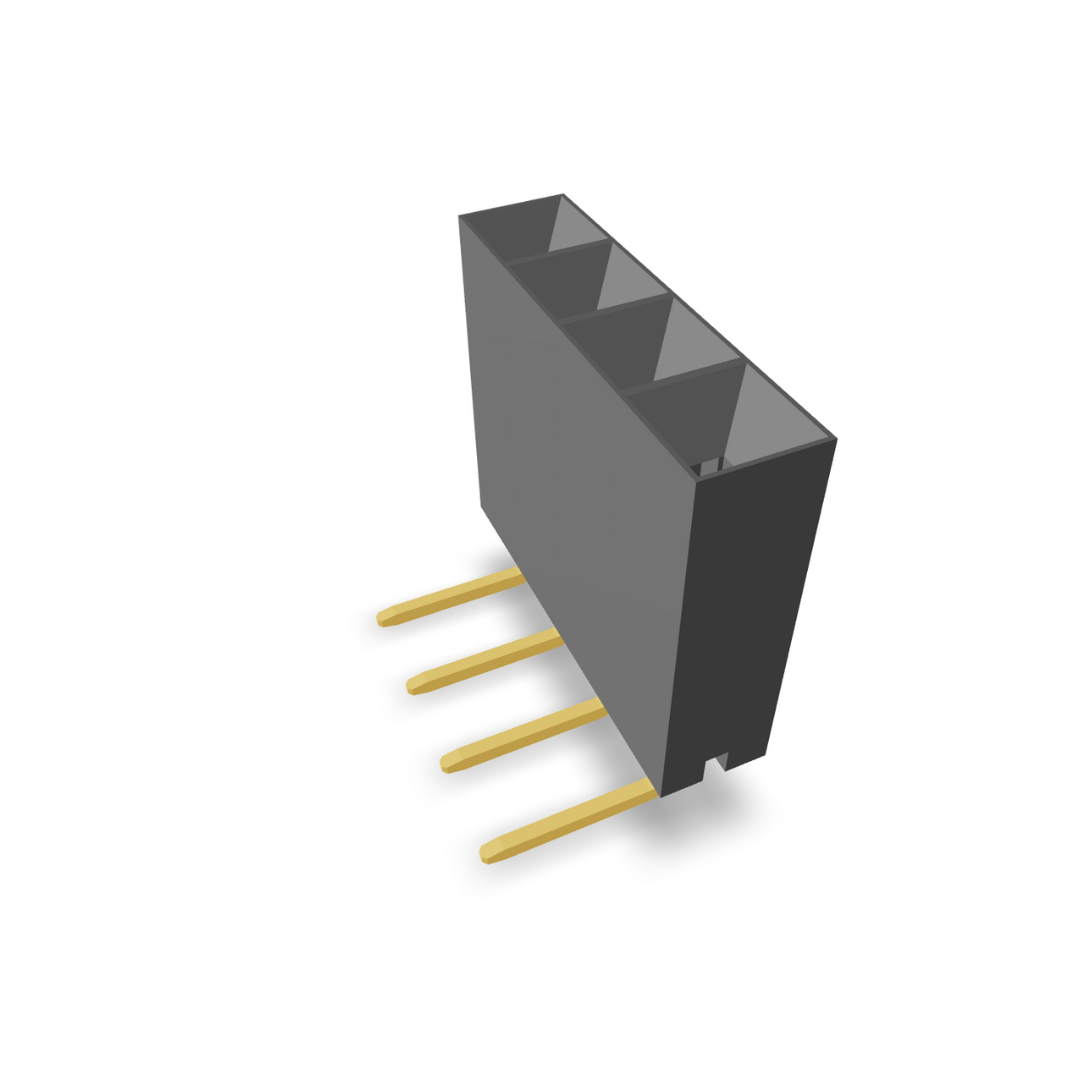

2.54mm Pitch Female Header Single Row (Right Angle) (P9402AXX-XX)
Description
Its single-row, right-angle configuration offers reliable connectivity in space-constrained electronic applications.
Material and Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Refer Table |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
5000M OHMS Min |
Dielectric Withstanding: |
500V AC/Min |
Contact Resistance: |
20m OHMS Max |
Mechanical Data
Insertion Force: |
200g max |
Extraction Force: |
20g min |
Mechanical life: |
100 Cycles min |
Part No
P9402AXX-XX
