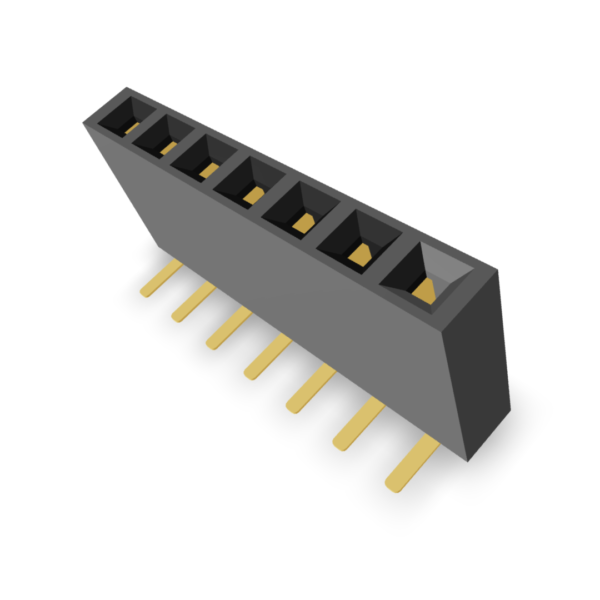

2.54mm Pitch Female Header 5mm Base Dual Beam Folded Contact Single Row(Right Angle) P9502

Description

P9502

Specifications

Current Rating 1A
Contact Resistance 20mΩ max
Insulation Resistance 5000MΩ min
Dielectric Withstanding 500V AC
Insertion Force/Contact 200gms max
Extraction Force/Contact 20gms min
Mechanical Life 100 Cycles min
Temperature Range -40°c to +105°c

Material & Finish

Contact Copper Alloy
Insulator Polyester, UL 94V-0
