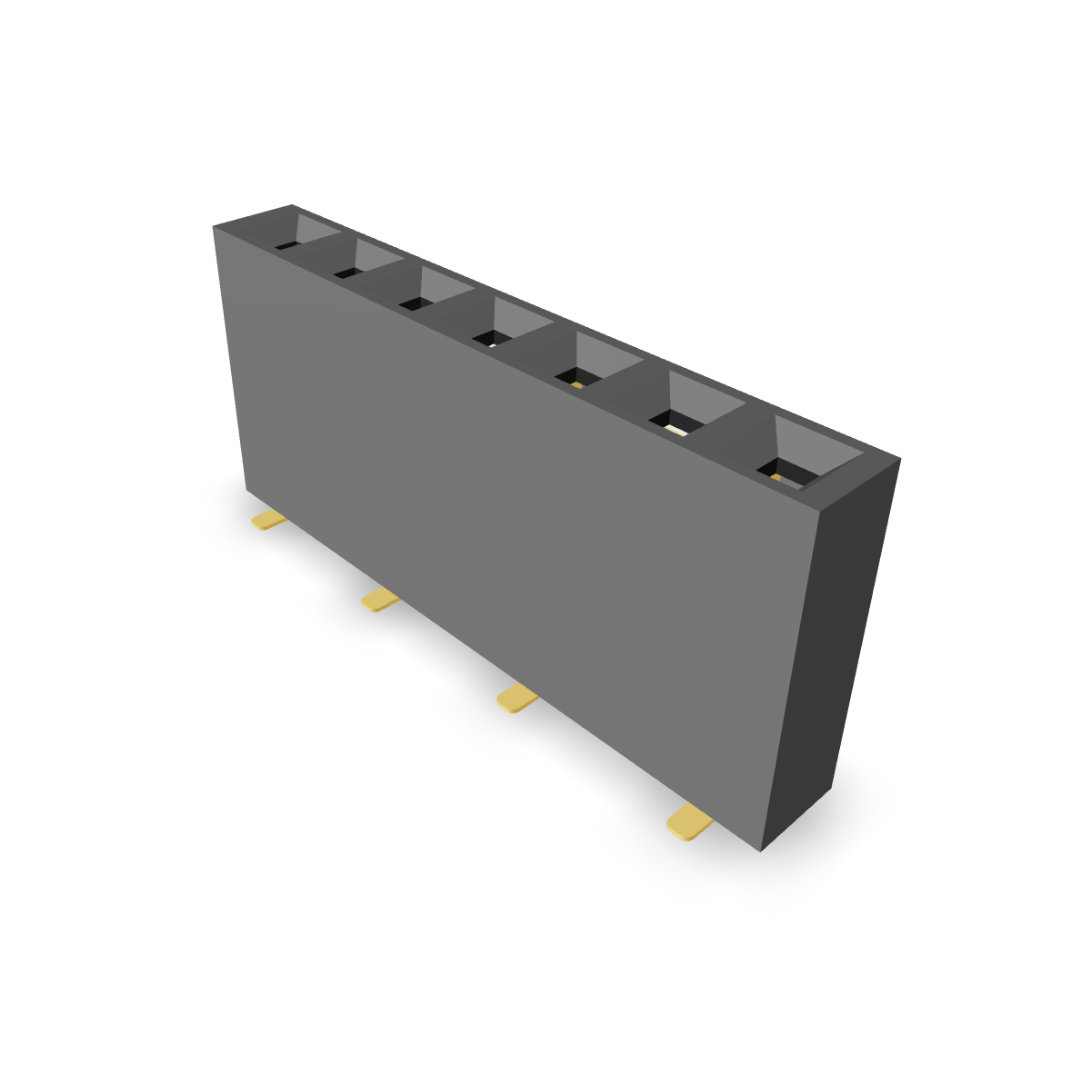

2.00mm Pitch Female Header Single Row Surface Mount P9416
Description
Its single-row and surface-mount configuration ensure stable interconnections, electronic applications demanding precision and robust connectivity.
Material and Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Contact: |
Copper Alloy |
Solder Tails: |
Refer Table |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
5000M OHMS Min |
Dielectric withstanding: |
500V AC /Min |
Contact Resistance: |
20m OHMS Max |
Mechanical Data
Insertion Force: |
0.7N AVG. |
Withdrawal Force: |
0.5N AVG |
Mechanical Life: |
100 Cycles / Min |
Part No
P9416-XX-2X
