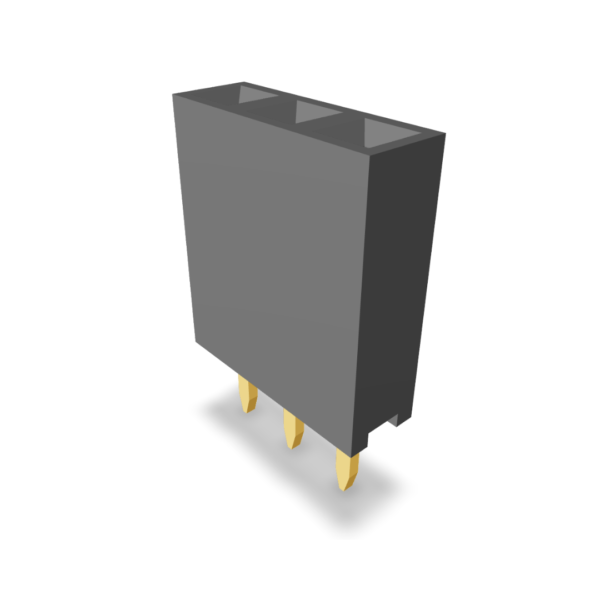

2.00mm Pitch Female Header Single Row (Straight) Profile:4.00mm & 4.3mm(P9411AXX-XX)
Description
Its single-row and surface-mount configuration ensure stable interconnections, electronic applications demanding precision and robust connectivity.
Material & Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Phosphor Bronze |
Solder Tails: |
Refer Table |
Specifications
| Current Rating | 1A |
|---|---|
Contact Resistance |
20mΩ max |
Insulation Resistance |
5000MΩ min |
Dielectric Withstanding |
500V AC For One Min |
Mechanical Data
Insertion Force |
0.7N avg |
Withdrawal Force |
0.5N avg |
Mechanical Life |
100 Cycle min |
Temperature Range |
-40°c to +105°c |
Environmental Data
Temperature Range |
-40°c to +105°c |
Part No
P9411AXX-XX
