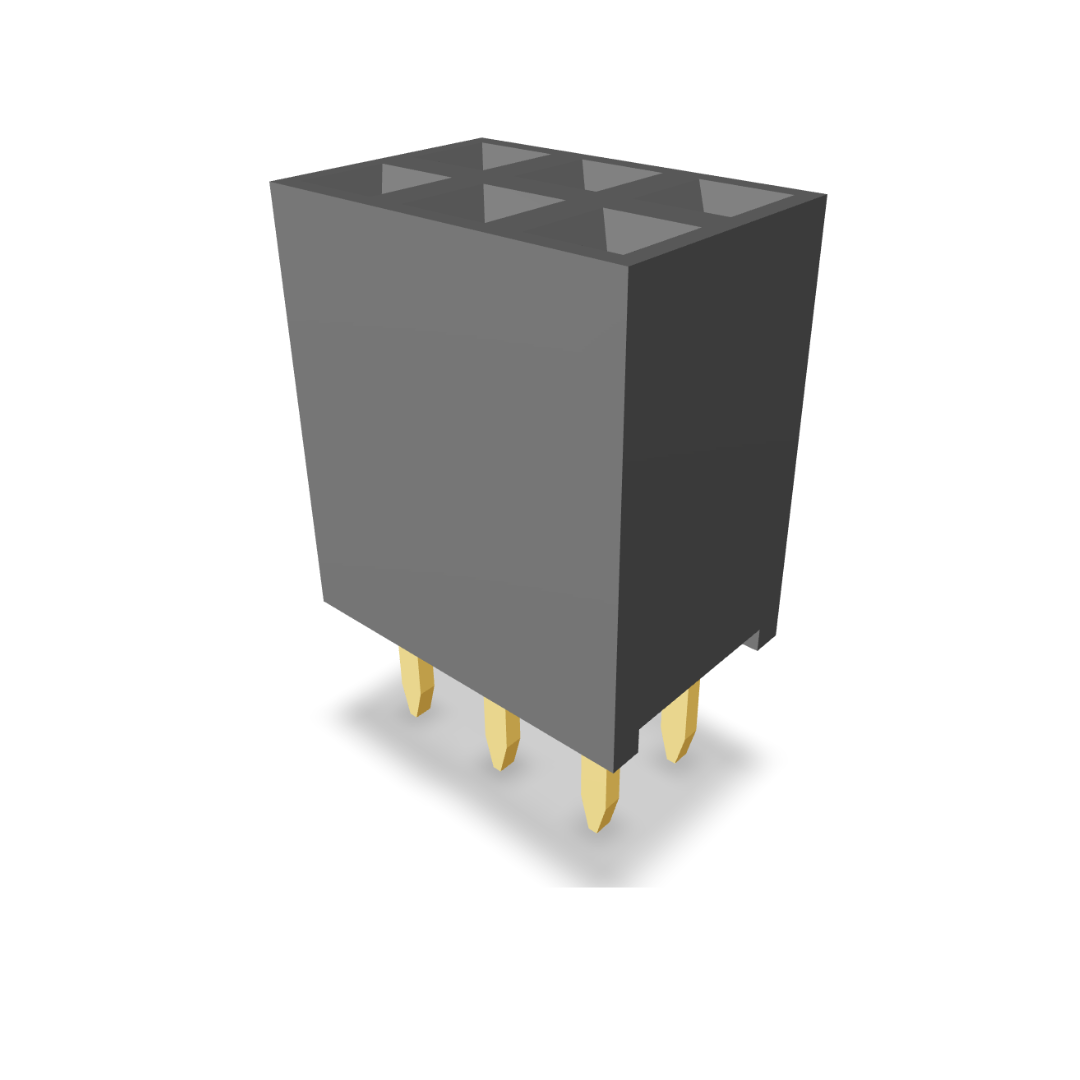

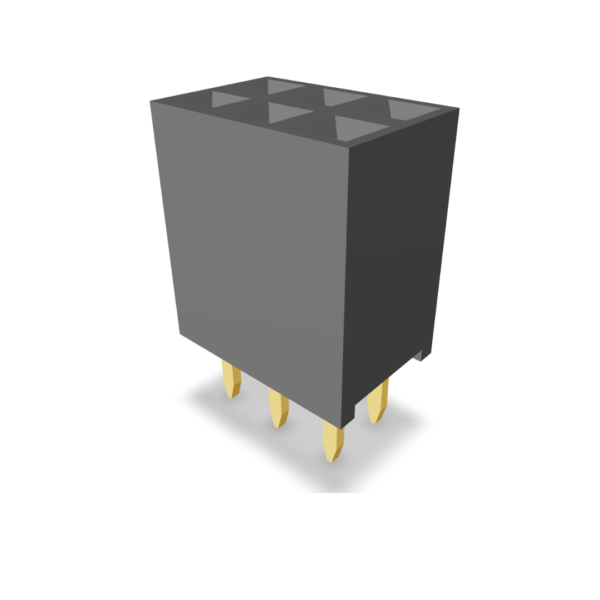

2.00mm Pitch Female Header Double Row (Straight) P9413
Description
Its double-row and straight configuration ensure stable interconnections, electronic applications that demand precise and robust connectivity
Specifications
| Current Rating | 1A |
|---|---|
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 5000MΩ min |
| Dielectric Withstanding | 500V AC |
| Insertion Force/Contact | 0.07Kg avg |
| Extraction Force/Contact | 0.05Kg avg |
| Mechanical Life | 100 Cycle min |
| Temperature Range | -40°c to +105°c |
Material & Finish
| Contact | Copper Alloy, Gold Plated |
|---|---|
| Insulator | Polyester, UL 94V-0 |
