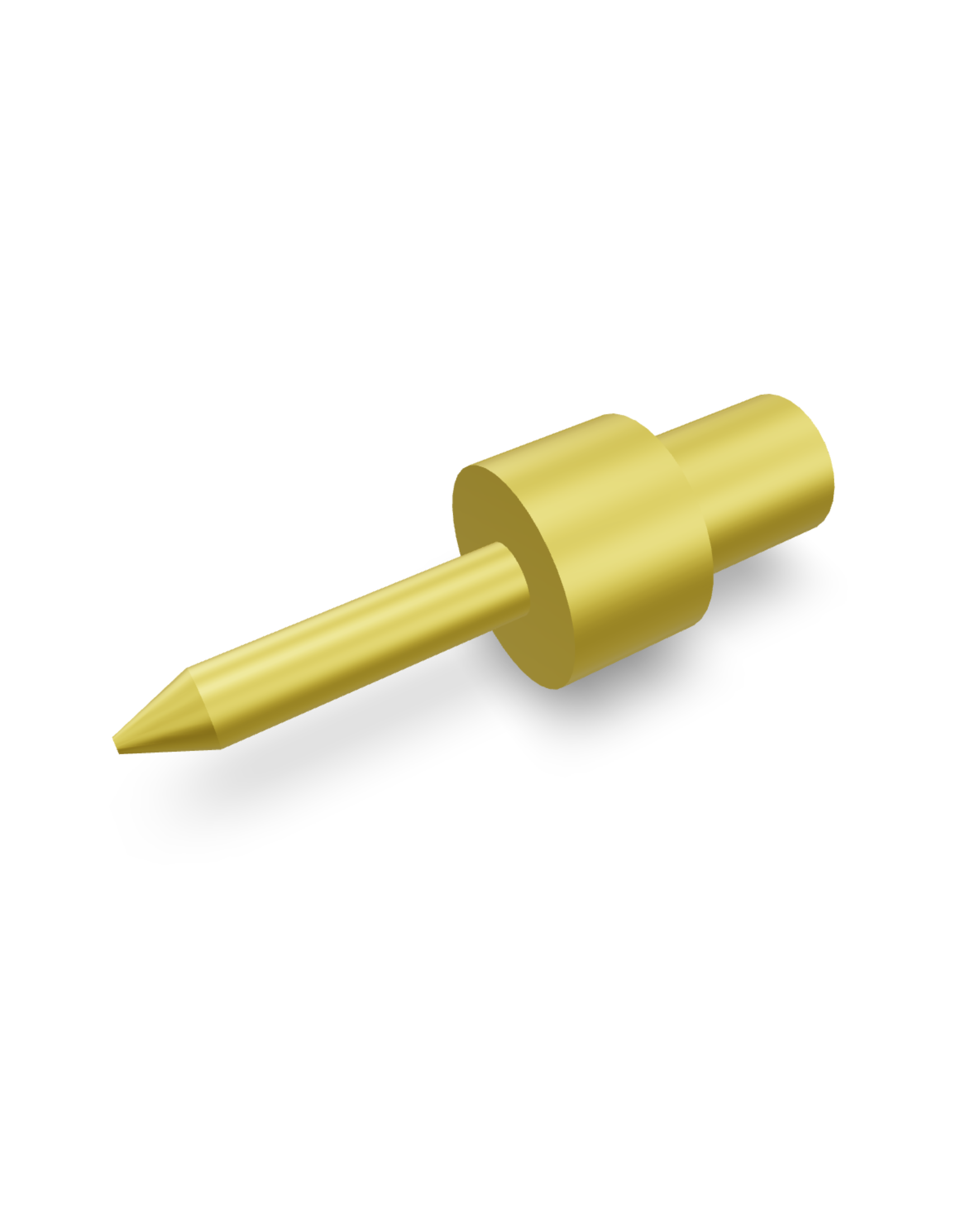

1mm Male Pin Non-Insulated(P8003)
Description
It is a versatile and durable connector pin designed for precise electronic applications. It features a 1mm diameter, making it suitable for tight spaces and detailed work.
Specifications
| Current Rating | 5A |
|---|---|
| Contact Resistance | 5mΩ max |
| Temperature Range | -25°C to +70°C |
| Mounting Hole Dia in PCB | Ø2.25mm , Ø1.25mm |
| Mating Connectors | P8001,P8002,P8101, P8102,P8202 |
Material & Finish
| contact | Brass,Silver/Gold Plated |
|---|
Part No
| Finish | Part number | ||
|---|---|---|---|
| Pin Straight Ø3mm |
Pin Straight Angle Ø1.75mm |
Pin Straight Ø1.75 |
|
| Silver Plated | P8003-00-11-0 | P8003-00-11-R | P8003-00-11-S |
| Gold Plated | P8003-00-12-0 | P8003-00-11-R | P8003-00-12-S |
