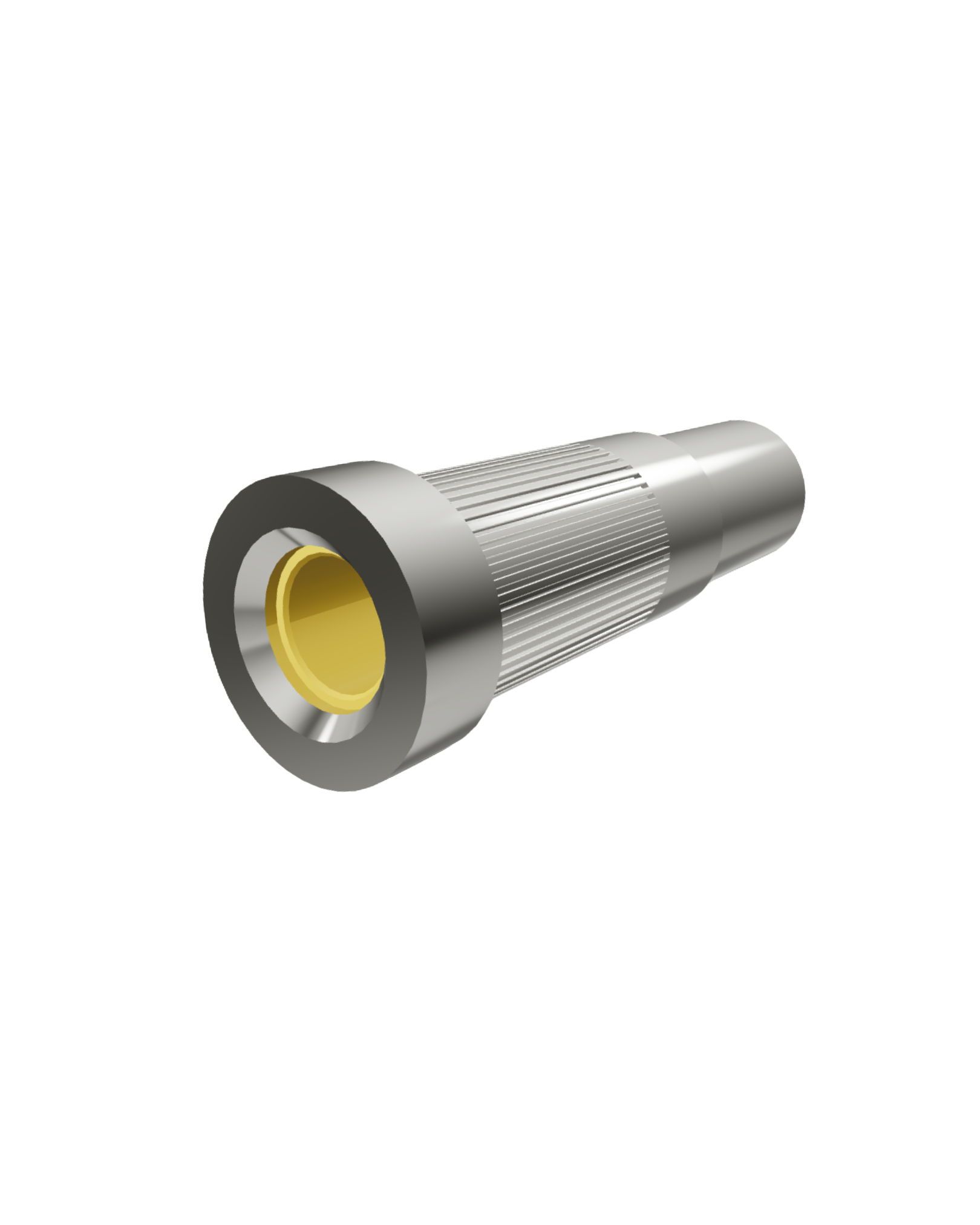

1mm connector Jack Non-Insulated with Knurling(P8102)
Description
The P8102 is a 1mm non-insulated connector jack with knurling for enhanced grip and secure electrical connections.
Specifications
| Current Rating | 3A max |
|---|---|
| Contact Resistance | 5mΩ max |
| Temperature Range | -25°C to +70°C |
| Insertion Force with Ø1.02mm | 0.45kg max |
| Extraction Force with Ø0.98mm | 0.056kg min |
| Mounting Hole Dia in PCB | Ø2.2mm |
| Mating Connectors | P8003,P8005 |
Material & Finish
| Inner Clip | Beryllium Copper, Gold Plated |
|---|---|
| Outer Sleeve | Brass, Silver/Gold/Tin Plated |
Part No
| Finish | Part Number | ||
|---|---|---|---|
| Without Tail | Tail Length l=7.64mm | Tail Length L=4.64mm | |
| Silver Plated | P8102-11-32 | P8102A11-32 | P8102B11-32 |
| Gold Plated | P8102-12-32 | P8102A12-32 | P8102B12-32 |
| Tin Plated | P8102-19-32 | P8102A19-32 | P8102B19-32 |
