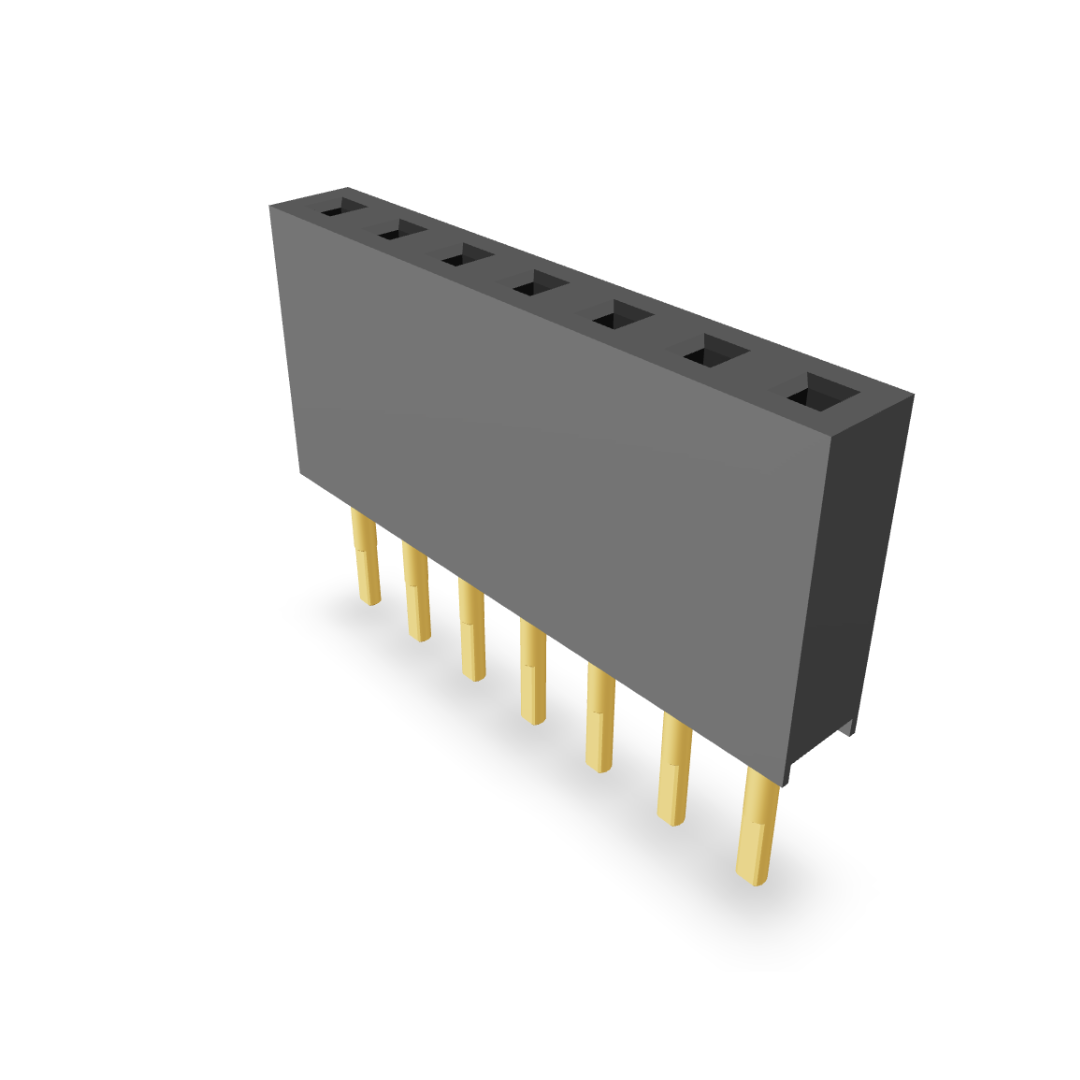

1.27×1.27mm Pitch Female Header Single Row (Straight)(P9431-XXX2-22)
Description
Its single-row and straight configuration ensure stable interconnections, electronic applications that demand precise and robust connectivity.
Material and Finish
Insulation
Material: |
PA9T |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Bronze |
Solder Tails: |
Gold Plated |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
500V AC /MIN |
Contact Resistance: |
20M OHMS MAX |
Part No
P9431-XXX2-22
