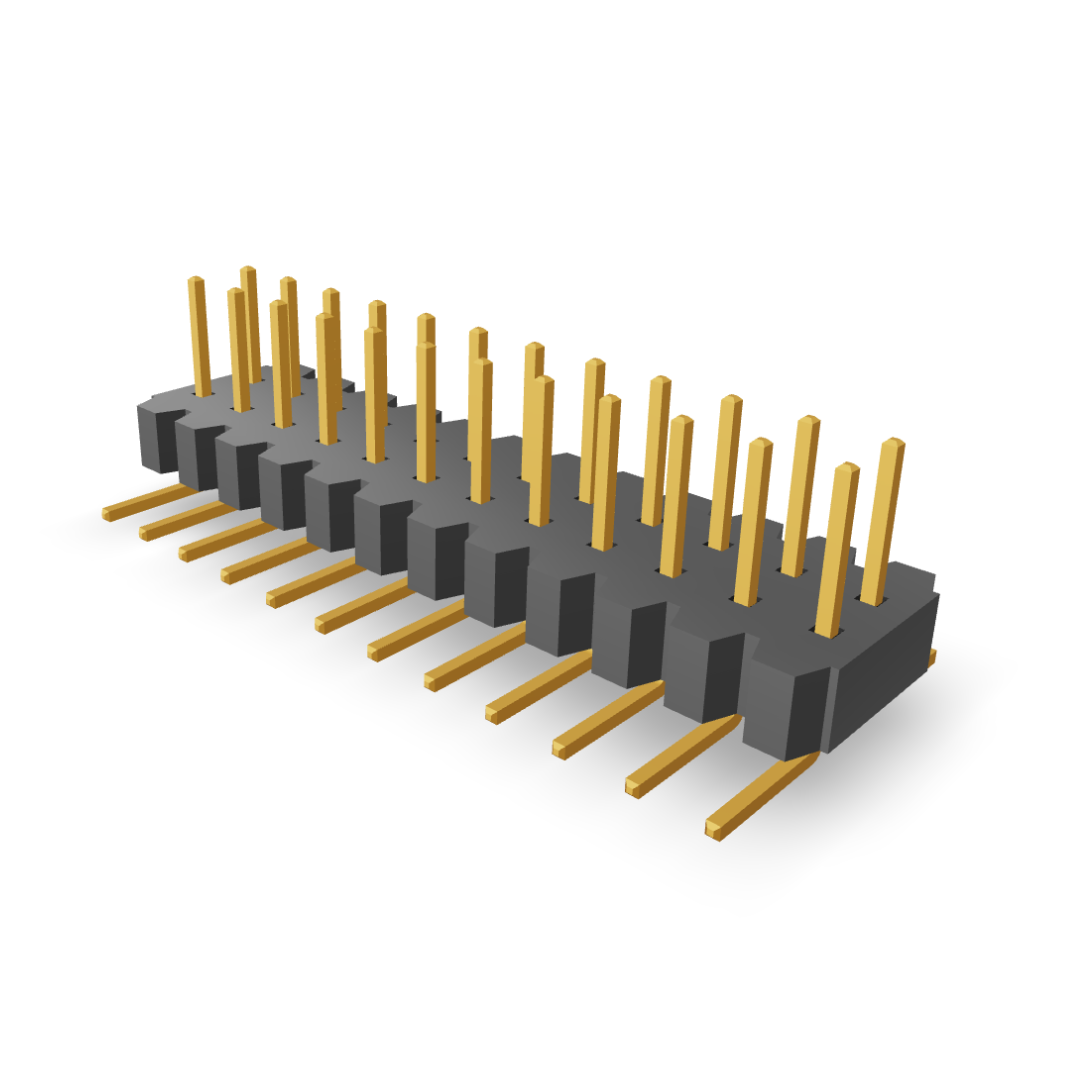

1.0mm Pitch Pin Header Surface Mount Double Row P9145
Description
Its double-row and surface-mount configuration provide stable and reliable interconnections, electronic designs that demand precision and durability.
Specifications
| Current Rating | 1A |
|---|---|
| Contact Resistance | 40mΩ max |
| Insulation Resistance | 5000MΩ min at 500V |
| Dielectric Withstanding | 500V AC at 1 Minute |
| Temperature Range | -40ºC to +105ºC |
Material & Finish
| Contact | Copper Alloy, Gold Plated |
|---|---|
| Insulator | Polyester, UL 94V-0 |
