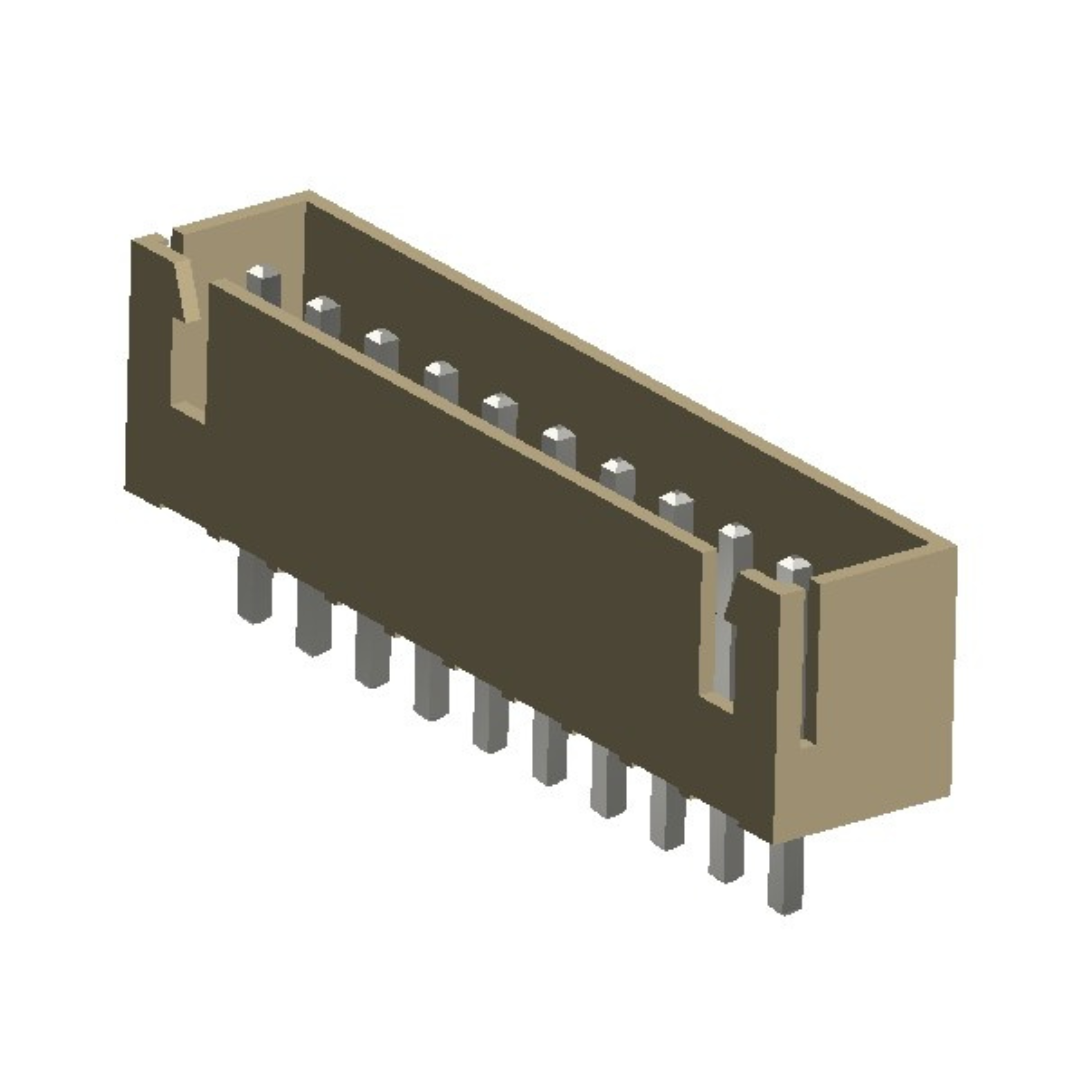

Wafer With Ramp (Straight) (P9052S29-19-X)
Description
It is a 2.50mm pitch connector designed for secure and efficient board-to-wire connections.
Material and Finish
Insulation
Material: |
PA66 |
Flammability: |
UL94V-0 |
Color: |
Natural Color |
Contact: |
Copper Alloy, Tin Plated (120-200μ”) |
Packaging Type: |
Bag Packing |
Electrical Characteristics
Current Rating: |
3A AC, DC |
Insulation Resistance: |
1000M Min |
Dielectric Withstanding: |
800V AC/Minute |
Contact Resistance: |
20V AC/DC |
Mechanical Data
Pin Retention Force: |
1.0Kg Min |
Part No
P9052S29-19-X
